SDO HMI 2011-10-29 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.74 | 43.59 | 15.29 | 61.32 | 12.83 | 300.60 | 69.78 | 281.99 | 0.9354 | 162.2 | 184.2 | |
|
previous
or next observation for the same group /

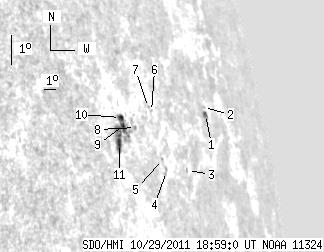

back to the solar disc SDO HMI 2011-10-29 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 3.64 | 4.16 | 7.28 | 12.90 | 307.19 | 76.36 | 282.15 | 0.9701 | -303.5 | -192.2 | |
| 0.00 | 1.47 | 0.00 | 2.94 | 13.12 | 307.14 | 76.31 | 282.37 | 0.9698 | -367.0 | -226.6 | |
| 0.00 | 1.13 | 0.00 | 1.85 | 11.45 | 303.90 | 73.08 | 280.55 | 0.9551 | -90.0 | -125.1 | |
| 0.00 | 2.43 | 0.00 | 3.60 | 11.57 | 301.88 | 71.05 | 280.64 | 0.9443 | -331.0 | -260.4 | |
| 0.00 | 0.61 | 0.00 | 0.90 | 11.95 | 301.73 | 70.90 | 281.04 | 0.9434 | 302.0 | 318.3 | |
| 0.00 | 0.95 | 0.00 | 1.40 | 13.42 | 301.65 | 70.83 | 282.60 | 0.9429 | -272.0 | -137.6 | |
| 0.00 | 0.78 | 0.00 | 1.14 | 13.55 | 301.47 | 70.64 | 282.74 | 0.9418 | 175.0 | 143.2 | |
| 0.00 | 1.13 | 0.00 | 1.53 | 13.05 | 299.97 | 69.14 | 282.21 | 0.9330 | -200.0 | -187.4 | |
| 1.21 | 31.45 | 1.58 | 40.68 | 13.18 | 299.02 | 68.20 | 282.35 | 0.9271 | 392.7 | 370.6 | |
| 2.17 | -9.00 | 2.82 | -9.00 | 13.44 | 298.92 | 68.10 | 282.63 | 0.9264 | 431.7 | 999999 | |
| 5.28 | -9.00 | 6.73 | -9.00 | 12.68 | 298.41 | 67.58 | 281.81 | 0.9231 | 568.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
