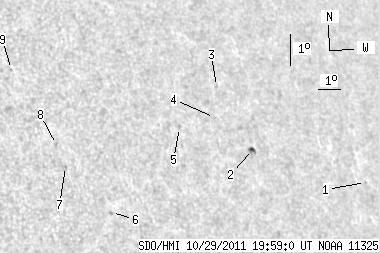

SDO HMI 2011-10-29 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 12.40 | 1.74 | 9.10 | 16.95 | 277.07 | 46.80 | 288.95 | 0.7375 | 40.3 | 44.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.75 | 15.27 | 285.23 | 54.96 | 285.41 | 0.8214 | -322.0 | -297.7 | |
| 2.25 | 3.81 | 1.74 | 2.94 | 16.62 | 279.97 | 49.69 | 287.81 | 0.7698 | -624.2 | -524.8 | |
| 0.00 | 1.13 | 0.00 | 0.86 | 18.62 | 278.98 | 48.71 | 290.59 | 0.7629 | -640.0 | -504.2 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 17.69 | 278.54 | 48.26 | 289.47 | 0.7564 | -579.0 | -500.6 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 17.48 | 276.84 | 46.57 | 289.56 | 0.7374 | 306.0 | 255.8 | |
| 0.00 | 1.30 | 0.00 | 0.89 | 15.08 | 273.16 | 42.89 | 287.08 | 0.6898 | 678.0 | 608.1 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 16.56 | 271.62 | 41.35 | 289.63 | 0.6746 | 688.0 | 606.4 | |
| 0.00 | 1.65 | 0.00 | 1.10 | 17.25 | 271.43 | 41.16 | 290.68 | 0.6741 | 681.0 | 465.1 | |
| 0.00 | 0.87 | 0.00 | 0.57 | 19.62 | 270.25 | 39.97 | 294.54 | 0.6675 | 667.0 | 567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
