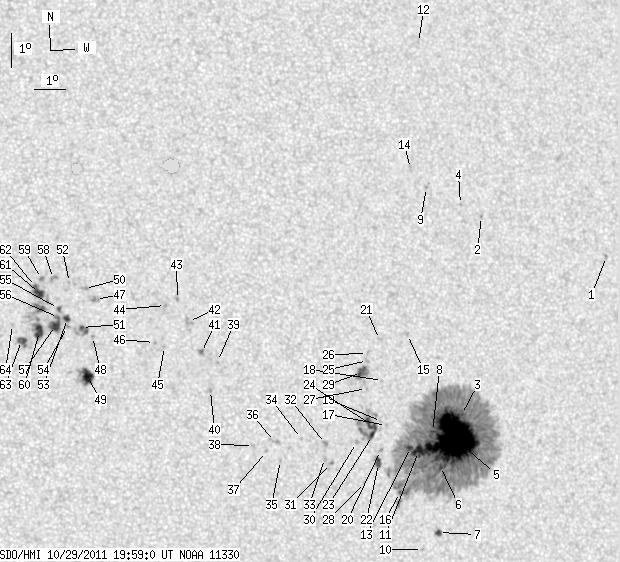

SDO HMI 2011-10-29 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.92 | 1083.04 | 113.13 | 586.72 | 6.53 | 253.94 | 23.66 | 276.56 | 0.4032 | -531.1 | -266.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.86 | 11.22 | 261.44 | 31.17 | 283.93 | 0.5251 | -672.0 | -537.5 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 12.59 | 257.24 | 26.97 | 288.33 | 0.4682 | -887.0 | -642.7 | |
| 0.26 | 843.72 | 0.14 | 461.84 | 6.70 | 256.07 | 25.80 | 275.79 | 0.4362 | -884.7 | -405.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 12.97 | 256.57 | 26.30 | 289.50 | 0.4599 | -660.0 | -512.8 | |
| 130.04 | -3.00 | 71.31 | -3.00 | 6.00 | 255.77 | 25.49 | 274.19 | 0.4310 | -1517.0 | 999999 | |
| 1.73 | -3.00 | 0.95 | -3.00 | 5.18 | 255.30 | 25.02 | 272.28 | 0.4234 | -1012.2 | 999999 | |
| 2.95 | 3.12 | 1.61 | 1.70 | 3.22 | 255.17 | 24.89 | 267.62 | 0.4224 | 866.1 | 611.3 | |
| 1.30 | -3.00 | 0.71 | -3.00 | 6.23 | 255.08 | 24.81 | 274.79 | 0.4204 | -1224.7 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 13.52 | 255.48 | 25.20 | 291.34 | 0.4464 | -766.0 | -626.1 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 2.73 | 254.63 | 24.35 | 266.34 | 0.4145 | 839.0 | 692.3 | |
| 6.32 | -3.00 | 3.44 | -3.00 | 5.65 | 254.59 | 24.32 | 273.43 | 0.4123 | -1338.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 17.92 | 255.79 | 25.52 | 300.04 | 0.4755 | -653.0 | -492.0 | |
| 1.91 | -3.00 | 1.03 | -3.00 | 5.78 | 254.34 | 24.06 | 273.76 | 0.4083 | -1377.8 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.34 | 14.11 | 255.00 | 24.73 | 292.93 | 0.4424 | -665.0 | -514.4 | |
| 0.00 | 2.08 | 0.00 | 1.13 | 9.14 | 254.44 | 24.16 | 281.93 | 0.4148 | 714.0 | 569.7 | |
| 0.87 | -3.00 | 0.47 | -3.00 | 4.45 | 253.93 | 23.65 | 270.47 | 0.4017 | 627.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 6.46 | 253.58 | 23.31 | 275.53 | 0.3967 | -805.0 | -614.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 7.80 | 253.53 | 23.25 | 278.93 | 0.3976 | -596.0 | -498.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 6.58 | 253.43 | 23.15 | 275.87 | 0.3944 | -712.0 | -495.2 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 5.72 | 253.36 | 23.08 | 273.68 | 0.3926 | -823.0 | -661.2 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 9.02 | 253.51 | 23.23 | 281.99 | 0.4000 | 771.0 | 547.0 | |
| 4.50 | 5.80 | 2.42 | 3.12 | 5.33 | 253.27 | 23.00 | 272.70 | 0.3912 | -1044.1 | -888.7 | |
| 2.60 | 34.83 | 1.40 | 18.69 | 6.17 | 253.12 | 22.84 | 274.87 | 0.3890 | -994.5 | -657.9 | |
| 7.02 | -23.00 | 3.77 | -23.00 | 6.50 | 253.07 | 22.79 | 275.73 | 0.3885 | -1006.6 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 8.41 | 253.07 | 22.80 | 280.62 | 0.3917 | 781.0 | 610.5 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 8.62 | 253.09 | 22.81 | 281.14 | 0.3924 | 478.0 | 389.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 7.58 | 252.99 | 22.72 | 278.51 | 0.3887 | 298.0 | 236.0 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 4.78 | 252.80 | 22.53 | 271.27 | 0.3835 | -755.0 | -606.8 | |
| 6.32 | 8.84 | 3.40 | 4.75 | 8.06 | 252.86 | 22.58 | 279.79 | 0.3875 | 1019.0 | 789.5 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 5.98 | 252.59 | 22.31 | 274.43 | 0.3804 | -942.0 | -726.5 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 5.38 | 251.76 | 21.48 | 272.88 | 0.3667 | -908.0 | -745.6 | |
| 0.00 | 2.60 | 0.00 | 1.38 | 5.98 | 251.59 | 21.31 | 274.54 | 0.3642 | -940.0 | -803.7 | |
| 0.00 | 2.25 | 0.00 | 1.20 | 5.54 | 251.54 | 21.26 | 273.32 | 0.3632 | -854.0 | -659.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 6.15 | 250.83 | 20.55 | 275.13 | 0.3520 | -788.0 | -627.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 5.52 | 250.13 | 19.86 | 273.37 | 0.3402 | 662.0 | 468.2 | |
| 0.00 | 3.81 | 0.00 | 2.00 | 6.09 | 249.96 | 19.69 | 275.08 | 0.3378 | 633.0 | 578.7 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 5.80 | 249.70 | 19.42 | 274.25 | 0.3332 | 801.0 | 614.5 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 5.99 | 249.29 | 19.02 | 274.88 | 0.3267 | 840.0 | 712.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 8.52 | 248.26 | 17.99 | 283.15 | 0.3150 | 742.0 | 684.6 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 7.66 | 248.00 | 17.72 | 280.56 | 0.3083 | 864.0 | 653.1 | |
| 0.00 | 3.64 | 0.00 | 1.89 | 8.80 | 247.77 | 17.49 | 284.35 | 0.3080 | 1210.0 | 880.8 | |
| 0.00 | 4.94 | 0.00 | 2.57 | 9.73 | 247.40 | 17.13 | 287.60 | 0.3059 | 645.0 | 664.9 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 10.40 | 247.09 | 16.82 | 289.99 | 0.3042 | 787.0 | 620.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 10.23 | 246.70 | 16.43 | 289.83 | 0.2972 | 957.0 | 812.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 9.00 | 246.61 | 16.34 | 285.89 | 0.2902 | 757.0 | 617.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 9.13 | 246.30 | 16.03 | 286.58 | 0.2857 | 842.0 | 728.1 | |
| 0.00 | 3.64 | 0.00 | 1.87 | 10.45 | 244.52 | 14.24 | 293.16 | 0.2644 | 1043.0 | 786.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 9.35 | 244.38 | 14.10 | 289.32 | 0.2559 | 875.0 | 682.7 | |
| 10.74 | 21.57 | 5.49 | 11.02 | 8.16 | 244.18 | 13.90 | 284.96 | 0.2473 | 1131.4 | 755.4 | |
| 0.00 | 2.69 | 0.00 | 1.38 | 10.79 | 244.19 | 13.92 | 294.81 | 0.2615 | 866.0 | 688.8 | |
| 1.65 | 10.92 | 0.84 | 5.58 | 9.62 | 244.05 | 13.77 | 290.76 | 0.2522 | 973.7 | 783.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.97 | 243.73 | 13.46 | 296.18 | 0.2558 | 886.0 | 694.1 | |
| 3.21 | 55.19 | 1.64 | 28.12 | 9.90 | 243.62 | 13.35 | 292.38 | 0.2471 | 833.6 | 792.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 9.66 | 243.61 | 13.34 | 291.48 | 0.2455 | 847.0 | 658.7 | |
| 1.30 | 2.34 | 0.66 | 1.19 | 10.20 | 243.36 | 13.08 | 293.93 | 0.2448 | 882.7 | 718.4 | |
| 0.26 | -53.00 | 0.13 | -53.00 | 9.93 | 243.35 | 13.07 | 292.91 | 0.2430 | 1080.0 | 999999 | |
| 7.71 | -53.00 | 3.93 | -53.00 | 9.70 | 243.24 | 12.97 | 292.14 | 0.2399 | 1084.9 | 999999 | |
| 0.00 | 3.99 | 0.00 | 2.04 | 11.10 | 243.24 | 12.97 | 297.46 | 0.2493 | 813.0 | 790.6 | |
| 0.00 | 2.60 | 0.00 | 1.33 | 11.11 | 242.87 | 12.59 | 298.14 | 0.2437 | 980.0 | 824.0 | |
| 7.88 | -53.00 | 4.01 | -53.00 | 9.53 | 242.74 | 12.47 | 292.20 | 0.2310 | 1122.4 | 999999 | |
| 6.15 | 16.03 | 3.14 | 8.17 | 10.66 | 242.79 | 12.51 | 296.60 | 0.2392 | 1117.1 | 774.0 | |
| 0.26 | -61.00 | 0.13 | -61.00 | 10.87 | 242.67 | 12.40 | 297.61 | 0.2390 | 966.0 | 999999 | |
| 4.94 | 6.67 | 2.51 | 3.39 | 9.27 | 242.18 | 11.90 | 292.00 | 0.2205 | 1013.6 | 910.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 9.75 | 241.92 | 11.64 | 294.48 | 0.2195 | 846.0 | 646.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
