SDO HMI 2011-10-29 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.28 | 34.92 | 9.58 | 18.19 | 14.78 | 244.50 | 14.78 | 306.62 | 0.3084 | -135.1 | 302.6 | |
|
previous
or next observation for the same group /

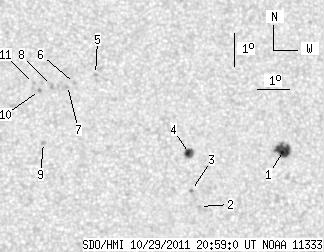

back to the solar disc SDO HMI 2011-10-29 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.65 | 15.59 | 6.66 | 8.21 | 14.41 | 247.23 | 17.51 | 300.72 | 0.3404 | -1018.6 | -714.0 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 12.78 | 244.44 | 14.71 | 300.18 | 0.2878 | 779.0 | 457.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 13.27 | 244.21 | 14.49 | 302.03 | 0.2886 | 837.0 | 633.6 | |
| 5.63 | 6.93 | 2.92 | 3.60 | 14.38 | 244.22 | 14.50 | 305.28 | 0.2984 | -1030.7 | -810.3 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 16.83 | 241.40 | 11.67 | 317.66 | 0.2889 | 767.0 | 590.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.57 | 240.72 | 10.99 | 318.68 | 0.2781 | 773.0 | 614.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 16.51 | 240.49 | 10.77 | 319.11 | 0.2749 | 618.0 | 621.1 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 16.51 | 239.99 | 10.26 | 320.45 | 0.2695 | 846.0 | 747.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.79 | 239.65 | 9.93 | 316.77 | 0.2444 | 926.0 | 777.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 16.37 | 239.60 | 9.88 | 321.14 | 0.2635 | 1102.0 | 995.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.58 | 239.42 | 9.70 | 322.16 | 0.2645 | 635.0 | 623.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
