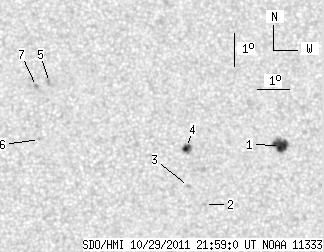

SDO HMI 2011-10-29 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.86 | 31.21 | 8.35 | 16.31 | 14.65 | 244.89 | 15.72 | 304.63 | 0.3196 | -292.6 | 94.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.48 | 15.34 | 6.59 | 8.10 | 14.42 | 247.26 | 18.09 | 300.00 | 0.3488 | -996.1 | -750.4 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 12.70 | 244.70 | 15.53 | 298.70 | 0.2991 | 799.0 | 645.5 | |
| 0.00 | 1.99 | 0.00 | 1.03 | 13.25 | 244.23 | 15.06 | 301.06 | 0.2965 | 864.0 | 632.0 | |
| 3.38 | 6.76 | 1.76 | 3.52 | 14.43 | 244.24 | 15.07 | 304.42 | 0.3067 | -1005.0 | -826.8 | |
| 0.00 | 3.73 | 0.00 | 1.92 | 16.47 | 240.03 | 10.86 | 318.79 | 0.2755 | 813.0 | 689.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 14.75 | 239.62 | 10.45 | 315.20 | 0.2502 | 858.0 | 671.2 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 16.36 | 239.61 | 10.44 | 319.58 | 0.2695 | 1093.0 | 915.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
