SDO HMI 2011-10-29 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.22 | 31.03 | 7.51 | 16.30 | 14.64 | 245.32 | 16.71 | 303.06 | 0.3328 | -335.4 | -121.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

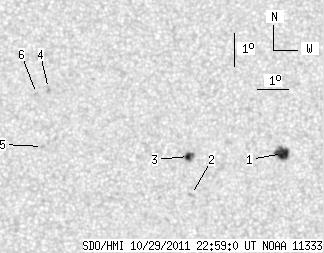

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.53 | 17.94 | 6.11 | 9.51 | 14.43 | 247.32 | 18.71 | 299.28 | 0.3576 | -992.4 | -635.9 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 13.26 | 244.31 | 15.69 | 300.14 | 0.3058 | 812.0 | 643.2 | |
| 2.69 | 6.15 | 1.40 | 3.21 | 14.41 | 244.30 | 15.68 | 303.40 | 0.3149 | -984.4 | -853.1 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 16.55 | 239.99 | 11.37 | 317.73 | 0.2822 | 821.0 | 753.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 14.80 | 239.70 | 11.08 | 313.72 | 0.2584 | 901.0 | 724.9 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 16.41 | 239.60 | 10.98 | 318.32 | 0.2761 | 1047.0 | 819.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
