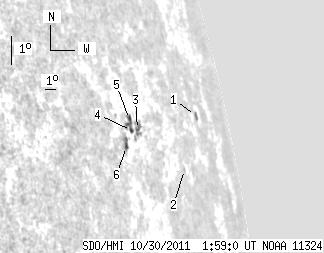

SDO HMI 2011-10-30 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.37 | 27.56 | 13.59 | 46.81 | 12.98 | 300.58 | 73.61 | 282.20 | 0.9563 | 154.7 | 106.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-30 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 2.86 | 5.16 | 7.76 | 12.93 | 307.15 | 80.18 | 282.32 | 0.9838 | -102.7 | -101.0 | |
| 0.00 | 0.87 | 0.00 | 1.82 | 11.54 | 303.89 | 76.92 | 280.77 | 0.9726 | -29.0 | -71.3 | |
| 0.00 | 8.84 | 0.00 | 14.24 | 13.09 | 299.59 | 72.63 | 282.28 | 0.9527 | -239.0 | -181.4 | |
| 1.99 | 9.36 | 3.11 | 14.54 | 13.11 | 298.99 | 72.02 | 282.29 | 0.9495 | 397.3 | 436.5 | |
| 1.82 | -4.00 | 2.85 | -4.00 | 13.44 | 299.03 | 72.07 | 282.64 | 0.9497 | 334.7 | 999999 | |
| 1.65 | 5.63 | 2.47 | 8.45 | 12.68 | 298.20 | 71.23 | 281.83 | 0.9452 | 413.1 | 462.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
