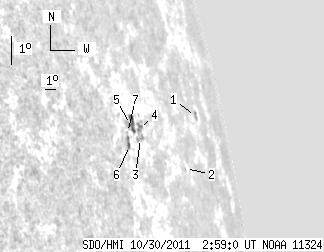

SDO HMI 2011-10-30 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.65 | 28.08 | 2.54 | 49.23 | 13.00 | 300.56 | 74.15 | 282.23 | 0.9589 | 167.2 | 140.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-30 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.86 | 0.00 | 8.20 | 12.92 | 307.17 | 80.76 | 282.33 | 0.9855 | -293.0 | -131.8 | |
| 0.00 | 1.04 | 0.00 | 2.28 | 11.58 | 303.96 | 77.54 | 280.84 | 0.9750 | -167.0 | -123.4 | |
| 0.00 | 3.29 | 0.00 | 5.41 | 12.84 | 299.50 | 73.08 | 282.02 | 0.9550 | 1.0 | 7.3 | |
| 0.00 | 4.77 | 0.00 | 7.90 | 13.14 | 299.62 | 73.20 | 282.34 | 0.9556 | -368.0 | -208.4 | |
| 0.00 | 11.01 | 0.00 | 17.54 | 13.32 | 298.81 | 72.40 | 282.52 | 0.9515 | 649.0 | 379.9 | |
| 1.65 | 4.33 | 2.54 | 6.69 | 12.72 | 298.28 | 71.86 | 281.88 | 0.9487 | 403.6 | 530.2 | |
| 0.00 | 0.78 | 0.00 | 1.21 | 13.11 | 298.35 | 71.94 | 282.29 | 0.9491 | 581.0 | 557.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
