Sunspot Group 11330

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11330	200.58	1038.39	111.80	581.46	6.46	254.04	27.62	275.67	0.4647	-425.5	-276.6

previous or next observation for the same group / back to the solar disc

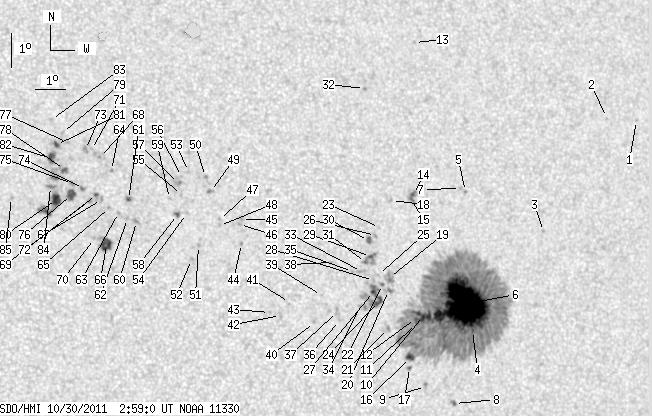

SDO HMI 2011-10-30 02:59:00 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.04	0.00	0.64	11.21	262.57	36.15	282.67	0.5953	-623.0	-473.5
2	0.00	0.43	0.00	0.26	11.36	261.46	35.05	283.16	0.5804	-411.0	-411.6
3	0.00	1.30	0.00	0.76	8.06	258.79	32.37	277.77	0.5372	-612.0	-431.8
4	0.95	801.01	0.54	454.04	5.21	256.10	29.69	272.43	0.4957	-858.1	-403.0
5	0.00	1.47	0.00	0.84	9.36	256.16	29.75	280.77	0.5004	-909.0	-720.3
6	131.07	-4.00	74.45	-4.00	6.00	255.80	29.38	274.04	0.4912	-1440.1	999999
7	0.00	1.47	0.00	0.84	9.46	256.00	29.58	281.01	0.4981	-562.0	-420.6
8	1.13	3.03	0.64	1.72	3.06	255.40	28.98	267.98	0.4861	833.7	671.9
9	0.00	2.34	0.00	1.31	3.61	254.43	28.01	269.00	0.4708	601.0	569.1
10	9.28	-4.00	5.20	-4.00	5.72	254.45	28.04	273.51	0.4705	-1219.7	999999
11	0.95	-4.00	0.53	-4.00	5.49	254.20	27.79	273.03	0.4666	-1113.7	999999
12	0.95	-4.00	0.53	-4.00	5.64	254.18	27.76	273.35	0.4663	-1216.0	999999
13	0.00	0.87	0.00	0.49	13.89	254.91	28.49	290.23	0.4955	-618.0	-505.6
14	1.04	6.15	0.58	3.46	9.34	254.37	27.95	281.20	0.4734	853.7	634.7
15	0.69	-14.00	0.39	-14.00	9.19	254.29	27.87	280.92	0.4719	717.5	999999
16	4.77	-4.00	2.66	-4.00	4.49	253.96	27.54	270.86	0.4629	580.8	999999
17	0.52	1.65	0.29	0.92	4.19	253.91	27.49	270.21	0.4623	792.3	651.4
18	0.00	1.30	0.00	0.73	9.19	253.61	27.19	281.10	0.4616	764.0	557.3
19	0.00	8.84	0.00	4.91	6.90	253.37	26.95	276.15	0.4545	-882.0	-617.7
20	0.00	4.68	0.00	2.60	6.51	253.32	26.90	275.30	0.4533	-917.0	-690.7
21	0.00	2.08	0.00	1.15	5.38	253.26	26.84	272.80	0.4519	-1024.0	-844.2
22	0.35	1.13	0.19	0.62	6.70	253.12	26.71	275.73	0.4505	-798.2	-715.7
23	0.00	0.69	0.00	0.38	8.40	253.14	26.72	279.50	0.4529	770.0	538.5
24	4.59	29.73	2.54	16.42	6.20	252.96	26.54	274.63	0.4476	-938.0	-773.6
25	0.00	1.04	0.00	0.58	7.00	253.01	26.59	276.42	0.4490	-659.0	-468.8
26	0.00	1.73	0.00	0.96	8.16	252.99	26.57	279.02	0.4502	996.0	767.1
27	1.47	-24.00	0.81	-24.00	6.50	252.81	26.39	275.33	0.4455	-1003.9	999999
28	0.00	1.47	0.00	0.81	6.83	252.83	26.41	276.06	0.4460	-388.0	-403.8
29	1.30	10.92	0.72	6.04	7.54	252.77	26.36	277.68	0.4460	603.8	235.8
30	2.95	3.29	1.63	1.82	8.02	252.74	26.32	278.76	0.4461	935.9	763.2
31	0.95	-29.00	0.53	-29.00	7.37	252.60	26.18	277.33	0.4430	729.4	999999
32	0.00	1.30	0.00	0.73	12.57	253.02	26.60	288.55	0.4629	-952.0	-805.5
33	0.00	3.55	0.00	1.96	7.11	252.45	26.03	276.75	0.4403	105.0	106.3
34	0.00	1.21	0.00	0.67	6.10	252.36	25.94	274.46	0.4381	-984.0	-758.8
35	0.00	1.13	0.00	0.62	7.12	252.15	25.73	276.83	0.4357	764.0	564.2
36	0.00	0.95	0.00	0.52	5.67	251.64	25.22	273.52	0.4266	-795.0	-653.2
37	0.00	3.99	0.00	2.18	5.95	251.58	25.17	274.16	0.4259	-698.0	-651.6
38	0.00	1.47	0.00	0.81	7.41	251.43	25.01	277.64	0.4249	-880.0	-613.2
39	0.00	1.13	0.00	0.61	6.44	251.08	24.66	275.39	0.4183	-708.0	-514.2
40	0.00	1.21	0.00	0.66	5.64	250.81	24.39	273.49	0.4135	-817.0	-640.2
41	0.00	0.35	0.00	0.19	6.26	250.02	23.60	275.09	0.4013	466.0	586.2
42	0.00	2.86	0.00	1.54	5.89	249.71	23.29	274.17	0.3961	760.0	612.5
43	0.00	1.21	0.00	0.65	5.99	249.35	22.94	274.46	0.3905	743.0	636.9
44	0.00	1.39	0.00	0.74	8.07	248.55	22.13	280.05	0.3805	788.0	646.3
45	0.00	1.39	0.00	0.74	8.79	248.59	22.18	281.90	0.3829	881.0	722.1
46	0.00	1.13	0.00	0.60	8.64	248.52	22.10	281.54	0.3813	845.0	654.5
47	0.00	0.69	0.00	0.37	8.81	247.88	21.46	282.26	0.3717	915.0	794.9
48	0.00	1.56	0.00	0.83	8.63	247.87	21.45	281.79	0.3710	914.0	776.8
49	0.00	2.95	0.00	1.57	9.65	247.64	21.23	284.62	0.3705	767.0	707.0
50	0.00	1.56	0.00	0.83	10.10	247.51	21.09	285.90	0.3700	669.0	602.9
51	0.00	1.47	0.00	0.78	8.05	247.16	20.74	280.51	0.3582	768.0	608.1
52	0.00	1.39	0.00	0.73	7.64	246.91	20.50	279.46	0.3534	743.0	666.9
53	0.00	1.30	0.00	0.69	10.27	246.97	20.55	286.68	0.3622	782.0	567.5
54	0.00	0.87	0.00	0.46	9.02	246.83	20.41	283.34	0.3556	578.0	465.5
55	0.00	1.04	0.00	0.55	9.59	246.70	20.28	285.00	0.3554	631.0	536.3
56	0.00	0.95	0.00	0.51	10.12	246.74	20.32	286.45	0.3580	686.0	593.4
57	0.00	3.03	0.00	1.61	9.92	246.63	20.21	285.96	0.3555	960.0	820.3
58	1.73	2.51	0.92	1.33	8.99	246.54	20.12	283.44	0.3509	-774.0	-663.0
59	0.00	0.95	0.00	0.50	9.48	246.31	19.89	284.93	0.3489	641.0	398.0
60	0.00	2.77	0.00	1.45	8.82	245.22	18.80	283.68	0.3292	960.0	716.0
61	1.39	2.43	0.73	1.27	9.48	245.00	18.58	285.81	0.3281	889.9	774.7
62	0.00	1.73	0.00	0.91	8.92	244.94	18.52	284.15	0.3250	869.0	655.4
63	0.00	1.21	0.00	0.63	9.10	244.66	18.24	284.89	0.3213	820.0	655.5
64	0.00	1.47	0.00	0.77	10.36	244.51	18.09	288.81	0.3241	905.0	700.6
65	0.00	1.30	0.00	0.68	9.26	244.38	17.96	285.57	0.3174	891.0	740.0
66	9.19	14.74	4.79	7.68	8.16	244.23	17.82	282.22	0.3113	1094.2	762.1
67	0.00	2.25	0.00	1.18	9.50	244.14	17.72	286.50	0.3146	815.0	669.4
68	0.00	0.69	0.00	0.36	10.76	244.15	17.73	290.32	0.3205	881.0	751.1
69	0.43	2.43	0.23	1.27	9.66	243.99	17.57	287.10	0.3128	923.4	851.7
70	0.00	1.13	0.00	0.59	8.35	243.86	17.44	283.04	0.3058	853.0	719.6
71	0.00	0.61	0.00	0.32	11.01	243.91	17.49	291.28	0.3181	524.0	456.1
72	0.00	2.43	0.00	1.26	9.48	243.76	17.34	286.74	0.3084	916.0	794.0
73	0.00	3.81	0.00	1.99	11.01	243.72	17.30	291.49	0.3152	933.0	786.4
74	0.00	2.60	0.00	1.35	9.85	243.59	17.17	288.03	0.3073	959.0	798.1
75	0.00	1.82	0.00	0.95	10.00	243.25	16.83	288.83	0.3027	870.0	783.6
76	6.50	7.63	3.37	3.96	9.68	243.20	16.78	287.83	0.3004	988.3	817.8
77	0.00	1.65	0.00	0.86	11.23	243.16	16.74	292.76	0.3078	800.0	638.4
78	2.86	13.35	1.49	6.92	10.43	243.02	16.60	290.41	0.3012	884.6	884.3
79	0.00	1.13	0.00	0.59	11.54	243.02	16.60	293.85	0.3075	769.0	539.2
80	7.72	20.46	3.99	10.58	9.54	242.72	16.30	287.81	0.2921	1127.9	696.1
81	2.17	3.29	1.13	1.71	11.18	242.81	16.39	293.00	0.3021	909.4	777.8
82	5.63	8.76	2.92	4.54	10.77	242.63	16.21	291.90	0.2969	1056.7	719.0
83	0.00	1.39	0.00	0.72	11.93	242.70	16.28	295.45	0.3051	703.0	485.8
84	0.00	3.64	0.00	1.88	9.93	242.55	16.14	289.27	0.2913	1098.0	903.3
85	0.00	1.47	0.00	0.76	9.63	241.32	14.90	289.55	0.2702	-578.0	-544.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
