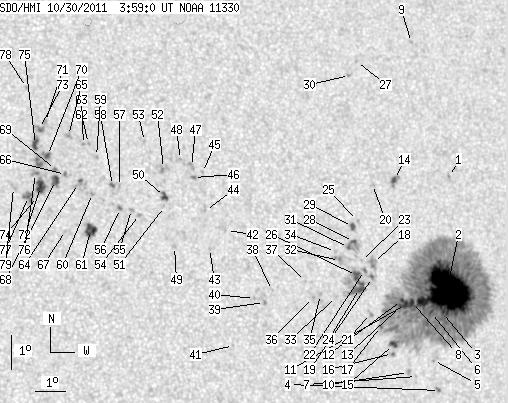

SDO HMI 2011-10-30 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 197.00 | 1020.71 | 110.34 | 574.32 | 6.43 | 254.05 | 28.19 | 275.54 | 0.4733 | -453.7 | -281.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-30 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.15 | 9.39 | 256.21 | 30.34 | 280.71 | 0.5093 | -845.0 | -625.3 | |
| 121.29 | 785.97 | 69.29 | 447.92 | 5.97 | 255.84 | 29.97 | 273.97 | 0.5001 | -1488.2 | -417.3 | |
| 0.78 | -2.00 | 0.44 | -2.00 | 5.35 | 255.67 | 29.80 | 272.72 | 0.4973 | -1145.6 | 999999 | |
| 1.39 | 2.25 | 0.79 | 1.28 | 3.03 | 255.47 | 29.60 | 268.03 | 0.4955 | 776.6 | 770.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 3.94 | 255.29 | 29.42 | 269.83 | 0.4921 | 575.0 | 422.6 | |
| 1.65 | -2.00 | 0.94 | -2.00 | 5.37 | 255.29 | 29.42 | 272.76 | 0.4916 | -1045.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 3.48 | 254.69 | 28.82 | 268.84 | 0.4833 | 696.0 | 523.2 | |
| 2.60 | -2.00 | 1.47 | -2.00 | 5.69 | 254.65 | 28.78 | 273.43 | 0.4820 | -1225.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 13.45 | 255.35 | 29.48 | 288.90 | 0.5080 | -691.0 | -557.1 | |
| 0.00 | 2.77 | 0.00 | 1.56 | 3.61 | 254.43 | 28.56 | 269.08 | 0.4791 | 691.0 | 511.7 | |
| 3.21 | -2.00 | 1.81 | -2.00 | 5.64 | 254.41 | 28.54 | 273.33 | 0.4783 | -1221.1 | 999999 | |
| 1.30 | -2.00 | 0.73 | -2.00 | 5.76 | 254.28 | 28.41 | 273.60 | 0.4763 | -1246.2 | 999999 | |
| 1.21 | -2.00 | 0.68 | -2.00 | 5.59 | 254.24 | 28.37 | 273.23 | 0.4756 | -1306.1 | 999999 | |
| 2.69 | 5.64 | 1.52 | 3.18 | 9.38 | 254.30 | 28.43 | 281.16 | 0.4808 | 888.4 | 596.6 | |
| 3.73 | -2.00 | 2.09 | -2.00 | 4.46 | 253.95 | 28.08 | 270.84 | 0.4713 | 663.7 | 999999 | |
| 0.35 | 1.47 | 0.19 | 0.83 | 4.20 | 253.90 | 28.03 | 270.27 | 0.4707 | 815.5 | 692.2 | |
| 1.30 | -2.00 | 0.73 | -2.00 | 5.02 | 253.53 | 27.66 | 272.01 | 0.4647 | 470.1 | 999999 | |
| 0.00 | 7.02 | 0.00 | 3.92 | 6.93 | 253.40 | 27.53 | 276.16 | 0.4634 | -602.0 | -638.7 | |
| 0.52 | 4.33 | 0.29 | 2.42 | 6.48 | 253.34 | 27.47 | 275.20 | 0.4622 | -823.5 | -682.1 | |
| 0.00 | 2.43 | 0.00 | 1.36 | 9.25 | 253.54 | 27.67 | 281.12 | 0.4691 | 594.0 | 539.4 | |
| 0.00 | 2.43 | 0.00 | 1.35 | 5.42 | 253.21 | 27.34 | 272.88 | 0.4598 | -1067.0 | -814.3 | |
| 0.00 | 2.08 | 0.00 | 1.16 | 6.70 | 253.08 | 27.21 | 275.70 | 0.4583 | -852.0 | -697.7 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 7.00 | 253.00 | 27.13 | 276.37 | 0.4573 | -576.0 | -451.0 | |
| 9.28 | 38.32 | 5.15 | 21.26 | 6.17 | 252.88 | 27.01 | 274.56 | 0.4549 | -953.9 | -626.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 8.20 | 252.95 | 27.08 | 279.00 | 0.4581 | 728.0 | 642.2 | |
| 5.55 | -24.00 | 3.08 | -24.00 | 6.56 | 252.80 | 26.94 | 275.43 | 0.4539 | -939.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 12.95 | 253.37 | 27.50 | 288.89 | 0.4776 | -813.0 | -622.5 | |
| 1.91 | 10.23 | 1.06 | 5.68 | 7.58 | 252.77 | 26.90 | 277.67 | 0.4544 | 587.5 | 161.0 | |
| 3.21 | 3.29 | 1.78 | 1.83 | 8.03 | 252.77 | 26.90 | 278.66 | 0.4550 | 907.9 | 802.0 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 12.54 | 253.08 | 27.21 | 288.19 | 0.4718 | -864.0 | -716.3 | |
| 1.13 | -28.00 | 0.62 | -28.00 | 7.41 | 252.59 | 26.72 | 277.33 | 0.4514 | 689.9 | 999999 | |
| 0.00 | 5.55 | 0.00 | 3.07 | 7.03 | 252.26 | 26.39 | 276.54 | 0.4459 | -49.0 | 171.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 5.96 | 252.10 | 26.23 | 274.14 | 0.4426 | -834.0 | -618.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 7.30 | 252.14 | 26.28 | 277.17 | 0.4444 | 632.0 | 381.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 6.04 | 251.57 | 25.70 | 274.36 | 0.4344 | -787.0 | -650.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 5.96 | 251.33 | 25.47 | 274.19 | 0.4306 | -846.0 | -729.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 6.44 | 251.09 | 25.23 | 275.35 | 0.4271 | -696.0 | -507.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 6.21 | 249.99 | 24.12 | 274.92 | 0.4096 | 599.0 | 571.8 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 5.86 | 249.71 | 23.85 | 274.09 | 0.4049 | 829.0 | 677.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 5.99 | 249.39 | 23.52 | 274.44 | 0.3999 | 788.0 | 626.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 4.62 | 248.66 | 22.79 | 270.95 | 0.3878 | 740.0 | 466.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 8.05 | 248.59 | 22.72 | 279.81 | 0.3898 | 688.0 | 588.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 7.53 | 248.01 | 22.14 | 278.64 | 0.3795 | 703.0 | 560.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 8.66 | 247.94 | 22.07 | 281.64 | 0.3809 | 999.0 | 815.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 9.80 | 247.92 | 22.05 | 284.59 | 0.3839 | 488.0 | 444.2 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 9.66 | 247.62 | 21.75 | 284.39 | 0.3787 | 848.0 | 705.4 | |
| 0.00 | 3.73 | 0.00 | 1.99 | 9.99 | 247.57 | 21.70 | 285.26 | 0.3792 | 483.0 | 533.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 10.21 | 247.23 | 21.36 | 286.03 | 0.3746 | 683.0 | 569.7 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 7.62 | 246.88 | 21.01 | 279.24 | 0.3616 | 797.0 | 629.5 | |
| 3.47 | 4.94 | 1.84 | 2.62 | 9.12 | 246.64 | 20.77 | 283.46 | 0.3616 | -804.5 | -564.8 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 8.82 | 246.62 | 20.75 | 282.65 | 0.3605 | -703.0 | -526.3 | |
| 0.00 | 5.98 | 0.00 | 3.18 | 9.96 | 246.66 | 20.79 | 285.71 | 0.3648 | 973.0 | 738.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 10.78 | 246.10 | 20.24 | 288.30 | 0.3594 | 744.0 | 556.1 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 8.60 | 245.81 | 19.94 | 282.45 | 0.3468 | 585.0 | 347.8 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 8.76 | 245.56 | 19.69 | 283.03 | 0.3433 | 602.0 | 443.1 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 8.80 | 245.21 | 19.34 | 283.33 | 0.3378 | 1004.0 | 858.9 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 9.46 | 245.22 | 19.35 | 285.23 | 0.3402 | 764.0 | 468.8 | |
| 0.00 | 3.21 | 0.00 | 1.69 | 9.49 | 244.99 | 19.12 | 285.48 | 0.3368 | 1086.0 | 783.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 10.37 | 244.54 | 18.67 | 288.38 | 0.3332 | 863.0 | 733.4 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 9.27 | 244.34 | 18.47 | 285.27 | 0.3256 | 887.0 | 753.2 | |
| 9.54 | 12.40 | 4.98 | 6.48 | 8.17 | 244.22 | 18.35 | 281.98 | 0.3201 | 1074.3 | 697.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 10.77 | 244.30 | 18.43 | 289.72 | 0.3315 | 768.0 | 665.1 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 10.74 | 244.14 | 18.27 | 289.78 | 0.3288 | 934.0 | 724.6 | |
| 0.00 | 4.25 | 0.00 | 2.22 | 9.58 | 243.92 | 18.05 | 286.51 | 0.3200 | 880.0 | 841.0 | |
| 0.00 | 4.25 | 0.00 | 2.22 | 11.02 | 243.68 | 17.81 | 291.04 | 0.3231 | 995.0 | 767.4 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 9.86 | 243.52 | 17.65 | 287.68 | 0.3149 | 902.0 | 703.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 8.19 | 243.43 | 17.56 | 282.48 | 0.3073 | 609.0 | 386.5 | |
| 5.64 | 7.98 | 2.93 | 4.15 | 9.69 | 243.19 | 17.32 | 287.42 | 0.3090 | 1008.8 | 801.9 | |
| 0.00 | 2.25 | 0.00 | 1.17 | 10.02 | 243.21 | 17.34 | 288.43 | 0.3108 | 892.0 | 692.0 | |
| 1.99 | 13.78 | 1.04 | 7.17 | 10.44 | 242.98 | 17.11 | 289.96 | 0.3092 | 906.9 | 904.5 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 11.46 | 242.98 | 17.11 | 293.06 | 0.3148 | 833.0 | 640.3 | |
| 8.41 | 10.32 | 4.37 | 5.36 | 9.52 | 242.71 | 16.84 | 287.30 | 0.3006 | 1090.1 | 875.7 | |
| 0.00 | 5.29 | 0.00 | 2.75 | 11.25 | 242.77 | 16.90 | 292.67 | 0.3105 | 919.0 | 765.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 9.22 | 242.60 | 16.73 | 286.43 | 0.2976 | 264.0 | 244.0 | |
| 4.85 | 6.85 | 2.52 | 3.56 | 10.78 | 242.62 | 16.75 | 291.38 | 0.3054 | 1061.3 | 846.7 | |
| 0.00 | 3.21 | 0.00 | 1.66 | 9.91 | 242.57 | 16.70 | 288.68 | 0.3002 | 1046.0 | 906.8 | |
| 0.00 | 7.28 | 0.00 | 3.77 | 9.23 | 242.32 | 16.45 | 286.69 | 0.2931 | 1056.0 | 726.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 12.49 | 242.44 | 16.57 | 296.76 | 0.3132 | 792.0 | 591.5 | |
| 0.00 | 2.60 | 0.00 | 1.34 | 9.51 | 241.86 | 15.99 | 288.04 | 0.2870 | 783.0 | 625.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
