SDO HMI 2011-10-30 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.18 | 23.41 | 7.10 | 12.52 | 14.68 | 245.84 | 19.97 | 298.94 | 0.3789 | -457.9 | -95.4 | |
|
previous
or next observation for the same group /

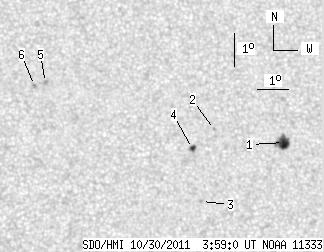

back to the solar disc SDO HMI 2011-10-30 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.75 | 14.48 | 5.81 | 7.82 | 14.50 | 247.54 | 21.67 | 296.39 | 0.4008 | -972.4 | -789.0 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 14.96 | 245.31 | 19.44 | 299.79 | 0.3722 | -874.0 | -621.1 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 12.80 | 244.70 | 18.84 | 294.98 | 0.3488 | 790.0 | 543.2 | |
| 2.43 | 3.03 | 1.29 | 1.61 | 14.40 | 244.55 | 18.68 | 299.32 | 0.3573 | -1024.1 | -818.1 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 16.51 | 239.98 | 14.11 | 311.73 | 0.3146 | 979.0 | 805.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 16.42 | 239.62 | 13.75 | 312.22 | 0.3093 | 993.0 | 838.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
