SDO HMI 2011-10-30 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 21.15 | 10.28 | 39.81 | 13.16 | 299.88 | 75.10 | 282.42 | 0.9635 | 331.4 | 10.1 | |
|
previous
or next observation for the same group /

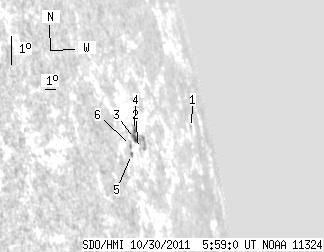

back to the solar disc SDO HMI 2011-10-30 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 5.30 | 12.91 | 307.26 | 82.49 | 282.40 | 0.9901 | -262.0 | -132.7 | |
| 0.00 | 0.69 | 0.00 | 1.22 | 12.90 | 299.02 | 74.24 | 282.11 | 0.9608 | 143.0 | 175.1 | |
| 3.90 | 14.48 | 6.80 | 25.85 | 13.22 | 298.83 | 74.05 | 282.44 | 0.9598 | 421.1 | -133.2 | |
| 1.56 | -3.00 | 2.75 | -3.00 | 13.45 | 299.02 | 74.25 | 282.69 | 0.9607 | 328.9 | 999999 | |
| 0.43 | 1.73 | 0.73 | 2.91 | 12.78 | 298.14 | 73.37 | 281.98 | 0.9565 | 360.4 | 325.8 | |
| 0.00 | 2.69 | 0.00 | 4.53 | 13.05 | 298.24 | 73.47 | 282.26 | 0.9570 | 489.0 | 496.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
