SDO HMI 2011-10-30 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 195.73 | 1030.83 | 111.84 | 589.20 | 6.48 | 254.02 | 29.79 | 275.50 | 0.4976 | -501.4 | -237.1 | |
|
previous
or next observation for the same group /

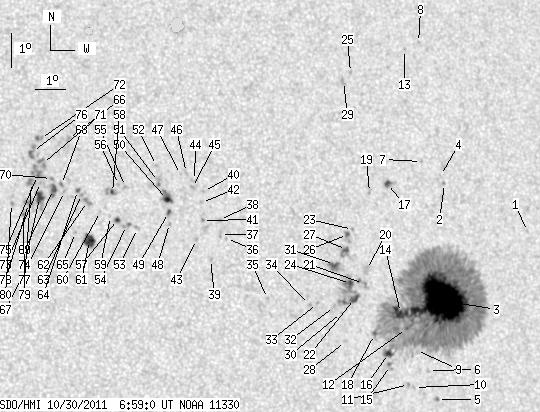

back to the solar disc SDO HMI 2011-10-30 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.73 | 7.89 | 259.12 | 34.89 | 277.23 | 0.5734 | -543.0 | -472.3 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 9.45 | 256.28 | 32.05 | 280.48 | 0.5344 | -850.0 | -645.2 | |
| 134.37 | 782.92 | 78.10 | 453.96 | 5.97 | 255.88 | 31.65 | 273.95 | 0.5252 | -1453.1 | -379.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 9.70 | 256.16 | 31.93 | 280.96 | 0.5332 | -628.0 | -520.2 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 3.03 | 255.59 | 31.37 | 268.30 | 0.5221 | 890.0 | 739.3 | |
| 0.00 | 1.56 | 0.00 | 0.90 | 3.91 | 255.31 | 31.08 | 269.96 | 0.5172 | 610.0 | 502.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 10.14 | 255.53 | 31.30 | 281.95 | 0.5249 | -653.0 | -499.9 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 13.71 | 255.89 | 31.66 | 288.45 | 0.5397 | -489.0 | -433.7 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 4.52 | 254.92 | 30.69 | 271.13 | 0.5110 | -225.0 | -266.0 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 3.42 | 254.81 | 30.58 | 268.96 | 0.5099 | 691.0 | 568.3 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 3.52 | 254.60 | 30.37 | 269.13 | 0.5068 | 796.0 | 679.2 | |
| 0.87 | -3.00 | 0.50 | -3.00 | 5.19 | 254.61 | 30.38 | 272.44 | 0.5061 | -916.3 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 13.52 | 255.36 | 31.13 | 288.32 | 0.5316 | -633.0 | -613.3 | |
| 9.80 | -3.00 | 5.61 | -3.00 | 5.67 | 254.43 | 30.20 | 273.40 | 0.5034 | -1209.5 | 999999 | |
| 0.00 | 4.59 | 0.00 | 2.62 | 4.11 | 254.00 | 29.77 | 270.26 | 0.4973 | 677.0 | 538.8 | |
| 3.38 | -3.00 | 1.93 | -3.00 | 4.47 | 253.95 | 29.72 | 270.98 | 0.4964 | 678.5 | 999999 | |
| 1.99 | 4.77 | 1.14 | 2.74 | 9.53 | 254.27 | 30.04 | 281.09 | 0.5052 | 868.3 | 523.8 | |
| 1.13 | -3.00 | 0.64 | -3.00 | 5.05 | 253.50 | 29.27 | 272.15 | 0.4893 | 588.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 9.29 | 253.62 | 29.40 | 280.77 | 0.4951 | 719.0 | 553.7 | |
| 0.00 | 5.37 | 0.00 | 3.05 | 7.00 | 253.34 | 29.11 | 276.16 | 0.4876 | -541.0 | -517.8 | |
| 0.00 | 5.03 | 0.00 | 2.84 | 6.59 | 253.21 | 28.98 | 275.32 | 0.4853 | -762.0 | -737.5 | |
| 5.37 | 34.42 | 3.03 | 19.37 | 6.15 | 252.87 | 28.64 | 274.44 | 0.4800 | -945.4 | -784.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 8.21 | 252.94 | 28.72 | 278.71 | 0.4831 | 667.0 | 611.0 | |
| 2.77 | -22.00 | 1.56 | -22.00 | 6.60 | 252.76 | 28.53 | 275.40 | 0.4786 | -888.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.99 | 12.90 | 253.36 | 29.13 | 288.03 | 0.5011 | -708.0 | -579.5 | |
| 1.99 | 5.46 | 1.12 | 3.08 | 8.07 | 252.76 | 28.53 | 278.45 | 0.4801 | 902.0 | 550.7 | |
| 2.69 | 8.93 | 1.51 | 5.03 | 7.62 | 252.69 | 28.47 | 277.54 | 0.4785 | 630.1 | 332.2 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 4.88 | 252.50 | 28.27 | 271.78 | 0.4741 | -797.0 | -583.3 | |
| 0.00 | 2.69 | 0.00 | 1.53 | 12.64 | 253.08 | 28.85 | 287.65 | 0.4962 | -739.0 | -706.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 5.75 | 252.41 | 28.18 | 273.62 | 0.4727 | -861.0 | -658.5 | |
| 3.55 | 9.02 | 1.99 | 5.06 | 7.19 | 252.25 | 28.03 | 276.69 | 0.4713 | 642.0 | 98.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 5.94 | 252.18 | 27.95 | 274.03 | 0.4693 | -821.0 | -678.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 6.05 | 251.61 | 27.38 | 274.31 | 0.4605 | -825.0 | -669.5 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 6.03 | 251.34 | 27.11 | 274.28 | 0.4563 | -655.0 | -600.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 6.26 | 249.94 | 25.72 | 274.91 | 0.4347 | 644.0 | 507.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 8.09 | 248.69 | 24.46 | 279.45 | 0.4174 | 688.0 | 525.5 | |
| 0.00 | 2.77 | 0.00 | 1.51 | 8.22 | 248.50 | 24.27 | 279.80 | 0.4147 | 531.0 | 414.9 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 8.66 | 248.50 | 24.27 | 280.88 | 0.4156 | 599.0 | 526.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 7.48 | 248.13 | 23.90 | 278.12 | 0.4075 | 715.0 | 643.9 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 9.52 | 248.03 | 23.80 | 283.10 | 0.4104 | 675.0 | 451.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 8.65 | 247.94 | 23.71 | 281.04 | 0.4068 | 928.0 | 876.1 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 9.19 | 247.94 | 23.71 | 282.35 | 0.4081 | 814.0 | 557.8 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 8.09 | 247.70 | 23.48 | 279.74 | 0.4019 | 787.0 | 612.2 | |
| 0.00 | 2.51 | 0.00 | 1.36 | 9.85 | 247.76 | 23.53 | 284.04 | 0.4072 | 503.0 | 478.5 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 9.65 | 247.68 | 23.45 | 283.57 | 0.4053 | 877.0 | 726.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 10.10 | 247.51 | 23.29 | 284.75 | 0.4042 | 670.0 | 509.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 10.05 | 247.31 | 23.08 | 284.72 | 0.4009 | 537.0 | 467.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 8.60 | 246.85 | 22.62 | 281.30 | 0.3896 | 333.0 | 411.4 | |
| 1.82 | 1.99 | 0.98 | 1.07 | 8.92 | 246.84 | 22.61 | 282.14 | 0.3902 | -875.6 | -762.0 | |
| 2.77 | 9.71 | 1.49 | 5.22 | 9.31 | 246.83 | 22.61 | 283.13 | 0.3912 | -987.2 | -167.5 | |
| 0.00 | 4.59 | 0.00 | 2.47 | 9.86 | 246.58 | 22.35 | 284.63 | 0.3889 | 915.0 | 805.1 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 10.34 | 246.55 | 22.32 | 285.86 | 0.3901 | 777.0 | 553.1 | |
| 0.00 | 2.34 | 0.00 | 1.25 | 8.48 | 245.80 | 21.58 | 281.41 | 0.3727 | 347.0 | 417.4 | |
| 0.00 | 3.73 | 0.00 | 1.98 | 8.58 | 245.45 | 21.23 | 281.83 | 0.3674 | 716.0 | 710.7 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 9.74 | 245.49 | 21.27 | 284.92 | 0.3716 | 728.0 | 496.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 9.81 | 245.27 | 21.04 | 285.22 | 0.3683 | 929.0 | 743.2 | |
| 1.21 | 2.77 | 0.64 | 1.47 | 8.76 | 245.17 | 20.95 | 282.46 | 0.3634 | 931.4 | 775.6 | |
| 1.56 | 6.94 | 0.83 | 3.69 | 9.57 | 245.06 | 20.83 | 284.71 | 0.3642 | 818.3 | 740.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 8.86 | 244.95 | 20.73 | 282.83 | 0.3602 | 725.0 | 495.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 9.02 | 244.64 | 20.41 | 283.43 | 0.3557 | 737.0 | 502.8 | |
| 10.23 | 11.36 | 5.40 | 5.99 | 8.16 | 244.24 | 20.01 | 281.21 | 0.3469 | 1053.2 | 896.3 | |
| 0.00 | 3.64 | 0.00 | 1.92 | 9.33 | 244.24 | 20.01 | 284.51 | 0.3504 | 876.0 | 775.0 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 9.54 | 244.06 | 19.83 | 285.22 | 0.3483 | 799.0 | 692.5 | |
| 1.65 | 1.99 | 0.87 | 1.05 | 9.67 | 243.94 | 19.71 | 285.65 | 0.3468 | 818.2 | 710.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 8.41 | 243.81 | 19.58 | 282.14 | 0.3406 | 841.0 | 609.4 | |
| 0.00 | 3.38 | 0.00 | 1.79 | 11.23 | 243.76 | 19.53 | 290.13 | 0.3507 | 658.0 | 510.9 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 9.65 | 243.52 | 19.30 | 285.87 | 0.3402 | 881.0 | 569.0 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 9.86 | 243.44 | 19.21 | 286.54 | 0.3397 | 737.0 | 530.8 | |
| 1.99 | 5.90 | 1.05 | 3.10 | 9.72 | 243.18 | 18.95 | 286.31 | 0.3349 | 1036.4 | 876.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 10.05 | 243.13 | 18.90 | 287.30 | 0.3356 | 866.0 | 758.5 | |
| 0.00 | 6.24 | 0.00 | 3.28 | 10.50 | 242.87 | 18.64 | 288.83 | 0.3336 | 776.0 | 765.3 | |
| 0.00 | 3.73 | 0.00 | 1.96 | 11.25 | 242.86 | 18.63 | 290.98 | 0.3370 | 942.0 | 840.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 9.93 | 242.77 | 18.55 | 287.25 | 0.3295 | 994.0 | 778.5 | |
| 6.24 | 11.01 | 3.27 | 5.77 | 9.49 | 242.72 | 18.49 | 285.97 | 0.3268 | 1065.5 | 425.4 | |
| 0.35 | 9.97 | 0.18 | 5.23 | 10.15 | 242.69 | 18.46 | 287.94 | 0.3291 | 1247.8 | 947.7 | |
| 0.00 | 6.94 | 0.00 | 3.64 | 10.87 | 242.58 | 18.35 | 290.14 | 0.3307 | 1076.0 | 932.1 | |
| 0.00 | 5.90 | 0.00 | 3.09 | 9.94 | 242.49 | 18.26 | 287.50 | 0.3250 | 880.0 | 891.3 | |
| 0.00 | 4.85 | 0.00 | 2.54 | 9.32 | 242.36 | 18.13 | 285.71 | 0.3204 | 1094.0 | 830.8 | |
| 0.00 | 1.99 | 0.00 | 1.04 | 9.02 | 242.18 | 17.95 | 284.93 | 0.3165 | -334.0 | -122.2 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 9.33 | 241.82 | 17.59 | 286.15 | 0.3119 | 850.0 | 725.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
