SDO HMI 2011-10-30 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.62 | 16.89 | 5.37 | 9.35 | 14.82 | 246.22 | 24.73 | 294.88 | 0.4472 | -514.6 | -310.8 | |
|
previous
or next observation for the same group /

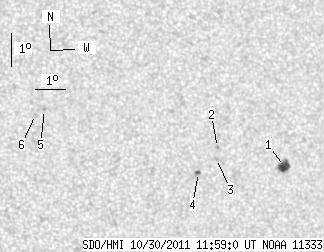

back to the solar disc SDO HMI 2011-10-30 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.58 | 10.31 | 4.80 | 5.77 | 14.55 | 247.81 | 26.32 | 292.91 | 0.4679 | -921.4 | -662.9 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 15.20 | 245.61 | 24.12 | 295.88 | 0.4401 | -772.0 | -627.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 14.87 | 245.54 | 24.04 | 295.23 | 0.4372 | -868.0 | -657.6 | |
| 1.04 | 2.25 | 0.57 | 1.23 | 14.46 | 244.89 | 23.39 | 294.88 | 0.4256 | -862.7 | -769.9 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.51 | 240.01 | 18.51 | 304.73 | 0.3720 | 914.0 | 709.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 16.37 | 239.70 | 18.20 | 304.81 | 0.3666 | 819.0 | 683.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
