group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11330	201.59	1061.32	120.61	639.58	6.57	253.95	34.65	275.26	0.5689	-460.3	-246.6

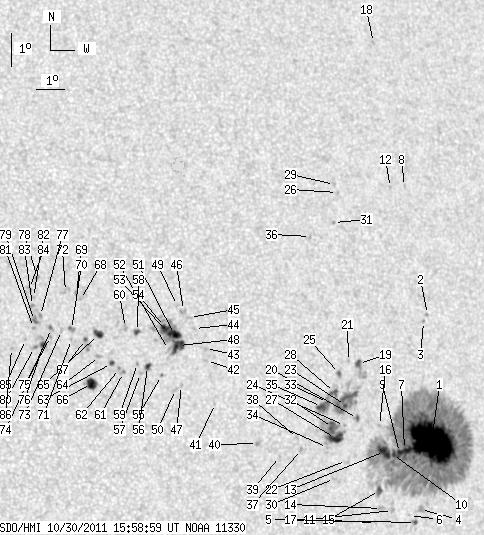

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-30 15:58:59 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	103.74	734.92	64.06	451.96	5.95	256.08	36.78	273.85	0.5991	-1403.9	-375.9
2	0.00	1.39	0.00	0.86	9.74	256.32	37.02	280.14	0.6051	-769.0	-590.2
3	0.00	1.04	0.00	0.64	9.54	256.14	36.85	279.83	0.6024	-807.0	-674.9
4	0.00	5.02	0.00	3.08	3.95	255.54	36.24	270.46	0.5920	-421.0	-367.6
5	1.65	3.20	1.01	1.96	3.57	255.34	36.04	269.81	0.5894	616.6	321.5
6	0.00	0.78	0.00	0.48	3.79	255.12	35.83	270.16	0.5863	415.0	309.2
7	1.21	-1.00	0.74	-1.00	5.76	255.06	35.76	273.54	0.5848	-1218.1	999999
8	0.00	1.47	0.00	0.92	13.61	256.04	36.75	286.53	0.6089	-391.0	-389.8
9	1.65	-1.00	1.00	-1.00	5.68	254.87	35.57	273.40	0.5821	-1066.8	999999
10	0.95	-1.00	0.58	-1.00	5.63	254.61	35.31	273.32	0.5784	-984.1	999999
11	0.00	2.68	0.00	1.63	3.97	254.51	35.21	270.42	0.5774	-55.0	-5.0
12	0.00	1.13	0.00	0.70	13.60	255.51	36.21	286.68	0.6017	-583.0	-497.4
13	10.22	-1.00	6.17	-1.00	5.74	254.32	35.02	273.50	0.5743	-1199.8	999999
14	0.00	3.64	0.00	2.19	4.05	254.11	34.81	270.53	0.5717	748.0	605.7
15	3.72	-1.00	2.24	-1.00	4.59	254.07	34.77	271.48	0.5708	462.7	999999
16	0.00	1.47	0.00	0.89	6.52	254.20	34.90	274.87	0.5727	-656.0	-529.1
17	0.00	1.56	0.00	0.94	3.64	253.87	34.58	269.80	0.5686	660.0	508.8
18	0.00	1.21	0.00	0.76	18.01	255.78	36.48	293.64	0.6195	-598.0	-464.6
19	2.08	10.91	1.25	6.55	8.40	253.60	34.30	278.23	0.5655	912.1	343.4
20	1.73	3.55	1.04	2.12	6.76	253.41	34.12	275.34	0.5616	-817.2	-699.3
21	0.00	0.87	0.00	0.52	8.47	253.24	33.95	278.41	0.5605	402.0	325.2
22	0.00	0.35	0.00	0.21	5.53	252.93	33.63	273.14	0.5543	-374.0	-457.0
23	1.47	65.98	0.88	39.17	7.17	253.01	33.72	276.09	0.5561	-832.2	-20.8
24	0.00	1.04	0.00	0.62	6.57	252.93	33.63	275.03	0.5545	-663.0	-588.3
25	0.95	2.60	0.57	1.54	8.13	252.88	33.59	277.84	0.5550	889.3	725.5
26	0.00	1.30	0.00	0.78	13.54	253.51	34.21	287.23	0.5745	-636.0	-569.3
27	10.65	38.88	6.30	22.98	6.20	252.58	33.28	274.37	0.5493	-967.2	-626.3
28	3.38	-23.00	2.00	-23.00	7.57	252.65	33.35	276.86	0.5511	729.1	999999
29	0.00	1.73	0.00	1.05	13.78	253.44	34.14	287.67	0.5743	-614.0	-511.0
30	0.00	1.82	0.00	1.07	5.01	252.47	33.17	272.19	0.5476	-585.0	-555.3
31	0.00	1.21	0.00	0.73	12.64	253.22	33.92	285.78	0.5681	-719.0	-589.9
32	6.67	-27.00	3.94	-27.00	6.53	252.50	33.20	274.98	0.5482	-905.5	999999
33	0.52	-23.00	0.31	-23.00	7.28	252.38	33.08	276.36	0.5469	632.0	999999
34	0.00	1.13	0.00	0.66	5.95	252.27	32.98	273.91	0.5448	-861.0	-731.6
35	5.11	-23.00	3.01	-23.00	7.17	252.15	32.85	276.18	0.5436	507.9	999999
36	0.00	1.04	0.00	0.62	12.26	252.32	33.02	285.39	0.5545	-742.0	-662.5
37	0.00	1.91	0.00	1.11	5.93	251.35	32.05	273.90	0.5312	-862.0	-681.7
38	0.00	1.73	0.00	1.01	6.26	251.23	31.93	274.53	0.5295	-590.0	-405.6
39	0.00	0.87	0.00	0.50	5.75	250.56	31.27	273.58	0.5195	-205.0	-238.3
40	0.00	2.08	0.00	1.19	6.17	249.82	30.52	274.42	0.5085	829.0	687.7
41	0.00	0.78	0.00	0.44	7.41	248.45	29.16	277.06	0.4888	544.0	476.0
42	0.00	1.30	0.00	0.74	8.71	248.24	28.95	279.75	0.4874	855.0	731.7
43	0.00	1.21	0.00	0.69	9.07	248.24	28.94	280.48	0.4880	827.0	639.4
44	0.00	1.47	0.00	0.83	9.68	247.92	28.62	281.82	0.4844	698.0	495.4
45	0.00	2.16	0.00	1.22	10.01	247.78	28.48	282.55	0.4831	653.0	377.6
46	0.00	3.03	0.00	1.71	10.23	247.59	28.30	283.05	0.4808	470.0	505.8
47	0.00	1.21	0.00	0.68	7.99	247.33	28.03	278.45	0.4725	753.0	598.0
48	10.04	60.10	5.65	33.71	9.19	247.33	28.03	280.98	0.4745	-991.8	-198.7
49	0.00	1.39	0.00	0.78	10.38	247.40	28.10	283.44	0.4784	581.0	484.2
50	0.00	2.42	0.00	1.36	7.88	247.12	27.82	278.26	0.4691	783.0	678.9
51	7.19	-48.00	4.04	-48.00	9.52	247.22	27.92	281.70	0.4736	-1191.9	999999
52	0.00	1.04	0.00	0.58	9.08	246.97	27.68	280.85	0.4690	-195.0	-194.7
53	4.42	-48.00	2.48	-48.00	9.65	246.96	27.66	282.06	0.4699	-456.5	999999
54	2.25	-48.00	1.26	-48.00	9.77	246.90	27.60	282.33	0.4693	554.0	999999
55	0.00	1.04	0.00	0.58	8.32	246.68	27.38	279.28	0.4630	416.0	422.6
56	2.42	4.07	1.35	2.26	8.60	246.22	26.93	280.01	0.4566	703.1	624.5
57	0.00	1.21	0.00	0.67	8.40	245.97	26.68	279.64	0.4524	971.0	838.6
58	2.25	3.20	1.25	1.78	9.66	245.97	26.67	282.39	0.4550	735.2	567.3
59	0.00	1.21	0.00	0.67	8.70	245.89	26.60	280.32	0.4517	708.0	484.1
60	0.00	3.03	0.00	1.68	9.79	245.58	26.28	282.82	0.4494	783.0	598.7
61	0.00	1.99	0.00	1.10	8.45	245.40	26.11	279.90	0.4437	885.0	752.2
62	0.00	1.30	0.00	0.72	8.57	245.28	25.98	280.21	0.4420	1027.0	764.7
63	1.13	2.25	0.62	1.24	8.73	245.02	25.73	280.64	0.4384	924.6	714.6
64	0.00	2.51	0.00	1.38	8.95	244.64	25.34	281.27	0.4329	781.0	623.3
65	5.11	6.93	2.81	3.81	9.61	244.66	25.36	282.76	0.4348	821.8	598.8
66	7.97	10.74	4.36	5.87	8.16	244.32	25.02	279.52	0.4263	1016.1	657.1
67	0.69	5.20	0.38	2.84	9.48	244.21	24.92	282.62	0.4276	928.4	699.0
68	0.00	0.87	0.00	0.47	10.68	244.14	24.85	285.41	0.4302	812.0	640.4
69	0.00	1.73	0.00	0.95	10.86	244.03	24.73	285.89	0.4290	855.0	660.5
70	0.00	3.20	0.00	1.75	9.79	243.77	24.47	283.53	0.4217	921.0	747.8
71	0.00	0.61	0.00	0.33	9.49	243.75	24.45	282.84	0.4205	831.0	634.6
72	0.00	4.24	0.00	2.32	10.93	243.67	24.37	286.24	0.4238	888.0	716.9
73	0.00	2.08	0.00	1.13	9.77	243.44	24.14	283.63	0.4165	879.0	651.9
74	0.00	2.25	0.00	1.22	9.84	243.11	23.82	283.94	0.4117	909.0	824.2
75	0.00	1.56	0.00	0.85	9.60	243.06	23.76	283.39	0.4102	906.0	665.4
76	2.42	7.01	1.31	3.80	9.37	242.81	23.52	282.94	0.4057	980.3	806.5
77	0.00	1.91	0.00	1.03	10.24	242.78	23.48	285.06	0.4078	863.0	723.7
78	0.00	1.99	0.00	1.08	11.38	242.78	23.48	287.78	0.4119	1053.0	798.5
79	0.00	3.90	0.00	2.11	10.10	242.57	23.27	284.82	0.4041	1211.0	991.2
80	0.00	2.34	0.00	1.26	9.29	242.51	23.22	282.87	0.4008	990.0	776.9
81	0.00	1.13	0.00	0.61	9.89	242.52	23.23	284.34	0.4027	1030.0	900.9
82	0.00	1.13	0.00	0.61	10.79	242.59	23.30	286.47	0.4069	812.0	557.3
83	0.00	1.65	0.00	0.89	10.55	242.54	23.24	285.93	0.4052	965.0	804.3
84	0.00	2.51	0.00	1.36	11.06	242.48	23.19	287.19	0.4062	756.0	670.8
85	0.00	0.87	0.00	0.47	9.54	242.23	22.94	283.61	0.3972	688.0	528.0
86	0.00	1.04	0.00	0.56	9.29	241.76	22.46	283.19	0.3890	668.0	600.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
