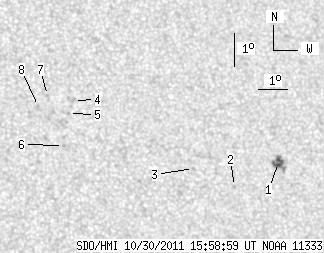

SDO HMI 2011-10-30 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 20.36 | 3.37 | 11.43 | 15.02 | 245.73 | 26.43 | 294.18 | 0.4725 | -72.5 | -222.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-30 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 12.21 | 3.37 | 6.98 | 14.58 | 247.94 | 28.64 | 291.58 | 0.5009 | -874.4 | -782.4 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 13.91 | 246.32 | 27.02 | 291.19 | 0.4750 | -789.0 | -571.9 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 14.50 | 244.99 | 25.69 | 293.25 | 0.4587 | -812.0 | -667.2 | |
| 0.00 | 1.65 | 0.00 | 0.90 | 16.69 | 241.20 | 21.90 | 301.11 | 0.4192 | 812.0 | 656.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 16.30 | 240.99 | 21.69 | 300.49 | 0.4134 | 654.0 | 525.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 15.33 | 240.71 | 21.42 | 298.63 | 0.4029 | 835.0 | 727.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 16.86 | 240.35 | 21.06 | 302.40 | 0.4090 | 656.0 | 523.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 16.54 | 240.02 | 20.72 | 302.07 | 0.4020 | 839.0 | 685.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
