Sunspot Group 11330

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11330	204.16	1014.63	123.02	616.27	6.50	254.01	35.26	275.09	0.5775	-457.0	-256.4

previous or next observation for the same group / back to the solar disc

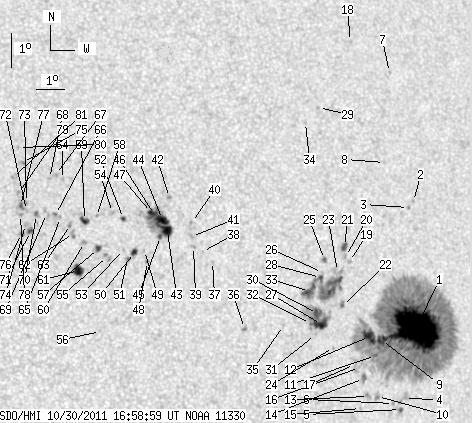

SDO HMI 2011-10-30 16:58:59 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	108.23	706.47	67.29	437.96	5.93	256.05	37.30	273.80	0.6064	-1403.0	-368.6
2	0.00	1.21	0.00	0.76	9.71	256.37	37.63	280.00	0.6133	-762.0	-577.7
3	0.00	1.21	0.00	0.76	9.54	256.16	37.41	279.75	0.6102	-778.0	-637.6
4	0.00	6.93	0.00	4.28	3.87	255.50	36.76	270.36	0.5993	-370.0	-232.8
5	1.56	2.68	0.96	1.65	3.55	255.34	36.59	269.81	0.5973	671.0	570.7
6	0.00	1.30	0.00	0.80	3.74	255.09	36.34	270.11	0.5936	493.0	401.8
7	0.00	1.21	0.00	0.76	13.61	256.07	37.33	286.37	0.6165	-454.0	-402.2
8	0.00	1.04	0.00	0.64	10.92	255.44	36.69	282.15	0.6024	-357.0	-297.4
9	5.11	-1.00	3.12	-1.00	5.63	254.76	36.01	273.31	0.5883	-1034.5	999999
10	0.00	3.90	0.00	2.38	3.97	254.51	35.76	270.47	0.5853	-335.0	-171.7
11	1.21	-1.00	0.74	-1.00	5.19	254.50	35.76	272.56	0.5848	-767.4	999999
12	10.48	-1.00	6.37	-1.00	5.77	254.32	35.58	273.55	0.5822	-1151.0	999999
13	0.00	2.86	0.00	1.73	3.99	254.18	35.43	270.47	0.5806	694.0	590.2
14	0.00	4.68	0.00	2.83	4.53	254.02	35.28	271.40	0.5781	693.0	435.6
15	0.00	0.69	0.00	0.42	3.64	253.87	35.12	269.85	0.5764	620.0	431.2
16	0.00	1.04	0.00	0.63	4.86	253.90	35.15	271.98	0.5762	-332.0	-315.7
17	0.00	6.41	0.00	3.87	4.96	253.72	34.97	272.14	0.5737	-264.0	-300.2
18	0.00	1.47	0.00	0.91	14.61	254.76	36.02	288.39	0.6019	-520.0	-379.3
19	0.00	1.99	0.00	1.20	8.03	253.78	35.04	277.50	0.5756	-124.0	-91.7
20	0.00	1.65	0.00	0.99	8.19	253.65	34.90	277.79	0.5739	703.0	562.9
21	4.16	4.33	2.51	2.61	8.49	253.64	34.90	278.31	0.5741	772.8	771.0
22	1.47	2.60	0.89	1.56	6.74	253.41	34.66	275.26	0.5694	-749.9	-777.5
23	0.00	4.68	0.00	2.81	7.75	253.31	34.57	277.07	0.5687	58.0	88.9
24	0.00	1.04	0.00	0.62	5.50	252.99	34.24	273.09	0.5631	-714.0	-594.0
25	0.69	1.99	0.41	1.19	8.13	252.88	34.13	277.78	0.5628	903.0	748.3
26	0.00	0.95	0.00	0.57	7.75	252.77	34.02	277.11	0.5609	566.0	468.1
27	9.09	41.30	5.42	24.56	6.20	252.60	33.86	274.35	0.5577	-960.8	-615.4
28	1.90	53.25	1.14	31.79	7.60	252.68	33.94	276.86	0.5595	669.1	-72.2
29	0.00	1.21	0.00	0.73	12.68	253.23	34.48	285.67	0.5759	-783.0	-621.9
30	6.49	-27.00	3.86	-27.00	6.54	252.48	33.74	274.96	0.5560	-919.2	999999
31	0.00	1.04	0.00	0.62	5.92	252.37	33.62	273.84	0.5542	-754.0	-640.1
32	0.35	-27.00	0.21	-27.00	6.25	252.21	33.47	274.45	0.5520	-1024.8	999999
33	8.92	-28.00	5.29	-28.00	7.20	252.25	33.50	276.18	0.5530	526.9	999999
34	0.00	0.95	0.00	0.57	12.25	252.68	33.94	285.09	0.5673	-755.0	-612.6
35	0.00	1.13	0.00	0.66	6.23	251.24	32.50	274.46	0.5379	-607.0	-476.5
36	0.00	2.25	0.00	1.30	6.20	249.87	31.12	274.46	0.5174	743.0	630.8
37	0.00	1.13	0.00	0.65	8.24	248.90	30.16	278.56	0.5048	514.0	406.8
38	0.00	0.69	0.00	0.40	8.55	248.58	29.83	279.24	0.5005	710.0	619.9
39	0.00	1.65	0.00	0.94	8.71	248.28	29.54	279.63	0.4963	841.0	695.8
40	0.00	1.21	0.00	0.69	9.43	248.28	29.53	281.07	0.4975	774.0	642.8
41	0.00	2.08	0.00	1.18	9.01	248.24	29.49	280.24	0.4961	825.0	698.5
42	0.00	1.39	0.00	0.79	10.20	247.59	28.85	282.83	0.4890	713.0	527.1
43	7.36	55.94	4.16	31.54	9.22	247.43	28.68	280.87	0.4844	-1020.3	-375.9
44	7.10	-43.00	4.01	-43.00	9.56	247.29	28.54	281.60	0.4830	-1178.5	999999
45	1.82	-43.00	1.03	-43.00	9.05	247.17	28.43	280.58	0.4802	-854.5	999999
46	1.39	-43.00	0.78	-43.00	9.72	247.03	28.28	282.00	0.4794	-386.3	999999
47	2.16	-43.00	1.22	-43.00	9.78	246.93	28.18	282.16	0.4781	554.4	999999
48	0.00	1.04	0.00	0.58	8.32	246.67	27.92	279.18	0.4713	626.0	537.3
49	0.00	0.87	0.00	0.49	8.66	246.59	27.85	279.90	0.4707	556.0	336.4
50	3.03	4.33	1.69	2.42	8.61	246.25	27.50	279.88	0.4654	762.9	599.2
51	0.35	1.73	0.19	0.97	8.44	246.00	27.25	279.58	0.4613	941.8	746.4
52	1.73	2.25	0.97	1.26	9.64	245.96	27.22	282.17	0.4632	687.6	612.2
53	0.00	0.95	0.00	0.53	8.71	245.88	27.14	280.20	0.4600	770.0	466.4
54	0.00	2.08	0.00	1.16	9.83	245.60	26.86	282.70	0.4582	870.0	702.4
55	0.00	3.81	0.00	2.11	8.52	245.33	26.58	279.93	0.4512	740.0	732.3
56	0.00	0.95	0.00	0.53	6.30	244.95	26.21	275.01	0.4425	748.0	594.5
57	2.86	4.59	1.58	2.54	8.77	245.05	26.30	280.56	0.4473	862.9	386.1
58	0.00	0.95	0.00	0.53	9.73	245.06	26.31	282.67	0.4496	395.0	363.5
59	4.50	6.75	2.49	3.73	9.62	244.64	25.90	282.59	0.4431	846.2	676.1
60	0.00	1.73	0.00	0.95	8.97	244.59	25.85	281.13	0.4407	902.0	756.8
61	8.14	10.82	4.47	5.95	8.14	244.33	25.58	279.32	0.4351	1026.4	576.2
62	0.00	3.46	0.00	1.90	9.25	244.24	25.50	281.88	0.4360	814.0	745.1
63	0.00	2.25	0.00	1.24	9.52	244.16	25.42	282.53	0.4355	903.0	727.0
64	0.00	1.90	0.00	1.05	10.87	244.01	25.27	285.65	0.4372	793.0	631.5
65	0.00	0.95	0.00	0.52	9.74	243.85	25.10	283.15	0.4312	768.0	636.5
66	0.00	1.73	0.00	0.95	9.83	243.69	24.94	283.44	0.4291	945.0	782.6
67	0.00	2.94	0.00	1.62	11.03	243.79	25.05	286.11	0.4344	739.0	654.2
68	0.00	1.13	0.00	0.62	10.91	243.58	24.84	285.96	0.4308	976.0	875.5
69	0.00	3.90	0.00	2.13	9.87	243.39	24.65	283.65	0.4246	287.0	562.6
70	0.00	2.94	0.00	1.61	9.85	243.06	24.31	283.75	0.4194	945.0	820.5
71	2.16	3.90	1.18	2.12	9.35	242.82	24.08	282.66	0.4143	1011.7	827.0
72	0.00	1.13	0.00	0.61	9.98	242.74	23.99	284.20	0.4149	829.0	749.8
73	0.00	1.30	0.00	0.71	10.22	242.76	24.01	284.76	0.4159	931.0	773.8
74	0.00	1.99	0.00	1.08	9.57	242.67	23.93	283.24	0.4126	972.0	780.7
75	0.00	2.51	0.00	1.37	11.42	242.73	23.98	287.59	0.4197	963.0	761.2
76	0.00	2.42	0.00	1.32	9.30	242.52	23.78	282.66	0.4095	977.0	777.4
77	1.90	3.90	1.04	2.12	10.14	242.55	23.81	284.66	0.4125	1073.4	842.7
78	0.00	1.90	0.00	1.03	9.87	242.53	23.79	284.03	0.4113	1011.0	792.4
79	0.00	1.90	0.00	1.04	10.53	242.52	23.77	285.61	0.4132	912.0	738.7
80	0.00	1.30	0.00	0.71	11.88	242.64	23.89	288.69	0.4202	759.0	600.3
81	0.00	0.78	0.00	0.42	10.98	242.36	23.61	286.77	0.4124	924.0	732.9

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
