SDO HMI 2011-10-30 17:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 201.14 | 988.06 | 122.38 | 604.15 | 6.53 | 254.08 | 35.89 | 275.10 | 0.5863 | -509.4 | -246.0 | |
|
previous
or next observation for the same group /

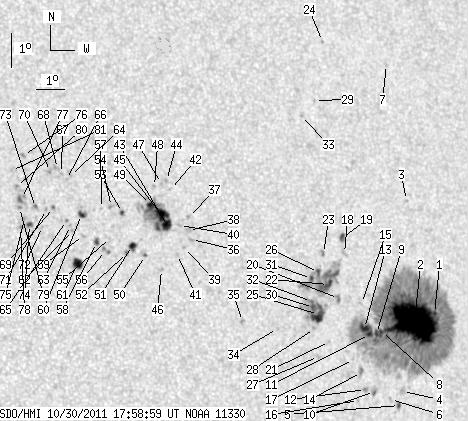

back to the solar disc SDO HMI 2011-10-30 17:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.13 | 680.47 | 0.71 | 425.12 | 6.13 | 256.92 | 38.72 | 274.12 | 0.6259 | -338.5 | -367.7 | |
| 113.25 | -1.00 | 70.99 | -1.00 | 5.93 | 256.13 | 37.94 | 273.80 | 0.6152 | -1355.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 9.54 | 256.21 | 38.02 | 279.67 | 0.6184 | -764.0 | -635.3 | |
| 0.00 | 4.85 | 0.00 | 3.02 | 3.87 | 255.54 | 37.35 | 270.40 | 0.6076 | -422.0 | -310.7 | |
| 1.65 | 2.68 | 1.02 | 1.67 | 3.46 | 255.41 | 37.22 | 269.71 | 0.6060 | 636.1 | 635.0 | |
| 0.00 | 1.99 | 0.00 | 1.23 | 3.65 | 255.08 | 36.89 | 270.01 | 0.6013 | 555.0 | 434.0 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 13.64 | 256.10 | 37.90 | 286.26 | 0.6242 | -577.0 | -479.8 | |
| 1.65 | -1.00 | 1.01 | -1.00 | 5.69 | 254.87 | 36.68 | 273.41 | 0.5977 | -1093.2 | 999999 | |
| 1.90 | -1.00 | 1.17 | -1.00 | 5.64 | 254.68 | 36.49 | 273.32 | 0.5950 | -988.8 | 999999 | |
| 0.00 | 3.72 | 0.00 | 2.29 | 3.92 | 254.50 | 36.31 | 270.41 | 0.5930 | -295.0 | -85.4 | |
| 3.90 | -1.00 | 2.39 | -1.00 | 5.62 | 254.42 | 36.23 | 273.29 | 0.5913 | -1158.1 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.69 | 3.99 | 254.17 | 35.98 | 270.52 | 0.5883 | 832.0 | 663.8 | |
| 8.23 | -1.00 | 5.03 | -1.00 | 5.81 | 254.25 | 36.05 | 273.61 | 0.5889 | -1162.5 | 999999 | |
| 0.00 | 3.90 | 0.00 | 2.38 | 4.50 | 254.05 | 35.86 | 271.38 | 0.5864 | 702.0 | 436.8 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 6.55 | 254.19 | 36.00 | 274.89 | 0.5883 | -811.0 | -584.2 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 3.68 | 253.90 | 35.70 | 269.96 | 0.5846 | 670.0 | 508.4 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 4.90 | 253.78 | 35.59 | 272.06 | 0.5824 | -611.0 | -470.0 | |
| 0.00 | 3.12 | 0.00 | 1.90 | 8.07 | 253.71 | 35.51 | 277.52 | 0.5823 | 323.0 | 187.5 | |
| 3.29 | 4.07 | 2.00 | 2.47 | 8.55 | 253.68 | 35.49 | 278.35 | 0.5824 | 769.3 | 747.9 | |
| 0.00 | 4.16 | 0.00 | 2.51 | 6.74 | 253.36 | 35.17 | 275.25 | 0.5766 | -829.0 | -703.7 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 5.48 | 252.94 | 34.74 | 273.05 | 0.5703 | -728.0 | -588.6 | |
| 4.50 | 65.20 | 2.71 | 39.22 | 7.17 | 253.03 | 34.84 | 276.03 | 0.5721 | -726.3 | 56.8 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 8.10 | 252.94 | 34.74 | 277.66 | 0.5715 | 756.0 | 704.2 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 14.44 | 253.79 | 35.60 | 288.27 | 0.5959 | -669.0 | -501.4 | |
| 11.69 | 39.57 | 7.01 | 23.68 | 6.30 | 252.59 | 34.40 | 274.50 | 0.5655 | -917.4 | -646.6 | |
| 2.25 | -22.00 | 1.35 | -22.00 | 7.55 | 252.70 | 34.51 | 276.71 | 0.5676 | 653.4 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.40 | 5.05 | 252.51 | 34.32 | 272.29 | 0.5642 | -694.0 | -604.0 | |
| 0.00 | 1.56 | 0.00 | 0.93 | 5.89 | 252.42 | 34.23 | 273.78 | 0.5629 | -731.0 | -614.5 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 12.69 | 253.19 | 35.00 | 285.52 | 0.5829 | -651.0 | -556.2 | |
| 2.86 | -25.00 | 1.71 | -25.00 | 6.52 | 252.43 | 34.24 | 274.89 | 0.5632 | -975.1 | 999999 | |
| 2.08 | -22.00 | 1.24 | -22.00 | 7.38 | 252.43 | 34.24 | 276.44 | 0.5637 | 653.6 | 999999 | |
| 0.35 | -25.00 | 0.21 | -25.00 | 6.70 | 252.37 | 34.18 | 275.22 | 0.5624 | -828.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 12.26 | 252.64 | 34.45 | 284.95 | 0.5743 | -817.0 | -623.6 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 5.95 | 251.09 | 32.90 | 273.91 | 0.5436 | -702.0 | -616.8 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 6.21 | 249.87 | 31.68 | 274.45 | 0.5257 | 774.0 | 597.1 | |
| 0.00 | 2.25 | 0.00 | 1.29 | 8.72 | 248.28 | 30.09 | 279.53 | 0.5045 | 891.0 | 682.5 | |
| 0.00 | 1.56 | 0.00 | 0.89 | 9.38 | 248.24 | 30.04 | 280.84 | 0.5050 | 750.0 | 566.7 | |
| 0.00 | 3.46 | 0.00 | 1.98 | 8.99 | 248.20 | 30.01 | 280.09 | 0.5037 | 793.0 | 658.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 8.49 | 248.02 | 29.82 | 279.13 | 0.5002 | 741.0 | 611.9 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 9.15 | 247.90 | 29.71 | 280.47 | 0.4996 | 176.0 | 125.2 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 8.29 | 247.76 | 29.56 | 278.78 | 0.4960 | 726.0 | 618.2 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 10.24 | 247.69 | 29.50 | 282.69 | 0.4988 | 514.0 | 410.3 | |
| 7.62 | 63.03 | 4.33 | 35.74 | 9.17 | 247.49 | 29.29 | 280.61 | 0.4934 | -898.4 | -343.5 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 10.51 | 247.58 | 29.39 | 283.27 | 0.4978 | 538.0 | 461.5 | |
| 11.08 | -43.00 | 6.30 | -43.00 | 9.50 | 247.31 | 29.12 | 281.33 | 0.4915 | -1171.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 7.87 | 247.17 | 28.98 | 278.02 | 0.4866 | 681.0 | 656.5 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 10.43 | 247.40 | 29.21 | 283.17 | 0.4949 | 709.0 | 527.1 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 10.35 | 247.15 | 28.96 | 283.09 | 0.4910 | 670.0 | 563.0 | |
| 2.94 | -43.00 | 1.67 | -43.00 | 9.82 | 246.96 | 28.77 | 282.07 | 0.4869 | 489.2 | 999999 | |
| 0.95 | 2.16 | 0.54 | 1.22 | 8.30 | 246.66 | 28.46 | 279.02 | 0.4795 | 607.9 | 31.8 | |
| 3.20 | 4.94 | 1.80 | 2.77 | 8.62 | 246.24 | 28.04 | 279.77 | 0.4736 | 771.6 | 644.8 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 8.42 | 246.05 | 27.86 | 279.39 | 0.4704 | 952.0 | 831.9 | |
| 1.65 | 2.34 | 0.92 | 1.31 | 9.61 | 245.98 | 27.79 | 281.94 | 0.4717 | 768.7 | 534.6 | |
| 0.00 | 1.99 | 0.00 | 1.11 | 9.81 | 245.62 | 27.43 | 282.46 | 0.4668 | 879.0 | 672.8 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 8.88 | 245.51 | 27.32 | 280.52 | 0.4631 | -654.0 | -483.1 | |
| 0.00 | 3.46 | 0.00 | 1.93 | 8.50 | 245.31 | 27.12 | 279.75 | 0.4593 | 763.0 | 717.5 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 9.76 | 245.28 | 27.08 | 282.48 | 0.4615 | 588.0 | 394.0 | |
| 2.16 | 3.20 | 1.20 | 1.78 | 8.75 | 245.02 | 26.83 | 280.37 | 0.4554 | 951.7 | 747.2 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 8.98 | 244.60 | 26.41 | 280.98 | 0.4494 | 923.0 | 737.0 | |
| 3.12 | 4.94 | 1.73 | 2.74 | 9.60 | 244.59 | 26.39 | 282.37 | 0.4506 | 843.1 | 721.0 | |
| 7.53 | 8.92 | 4.16 | 4.92 | 8.15 | 244.34 | 26.15 | 279.21 | 0.4438 | 988.3 | 737.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 9.14 | 244.25 | 26.05 | 281.45 | 0.4443 | 914.0 | 741.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 9.29 | 244.19 | 26.00 | 281.81 | 0.4438 | 906.0 | 734.8 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 10.78 | 244.32 | 26.13 | 285.06 | 0.4499 | 582.0 | 530.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 9.44 | 244.07 | 25.88 | 282.19 | 0.4423 | 911.0 | 718.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 10.67 | 244.18 | 25.98 | 284.87 | 0.4473 | 814.0 | 599.8 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 10.85 | 244.02 | 25.83 | 285.35 | 0.4456 | 789.0 | 641.4 | |
| 0.00 | 2.25 | 0.00 | 1.24 | 11.00 | 243.90 | 25.71 | 285.74 | 0.4443 | 637.0 | 631.9 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 9.84 | 243.67 | 25.47 | 283.25 | 0.4372 | 905.0 | 812.2 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 10.92 | 243.66 | 25.47 | 285.68 | 0.4404 | 1033.0 | 824.2 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 9.79 | 243.43 | 25.23 | 283.23 | 0.4334 | 877.0 | 628.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 9.29 | 243.25 | 25.06 | 282.14 | 0.4294 | 760.0 | 491.6 | |
| 0.00 | 2.68 | 0.00 | 1.47 | 9.86 | 243.07 | 24.87 | 283.54 | 0.4281 | 915.0 | 721.0 | |
| 2.16 | 2.77 | 1.18 | 1.51 | 9.36 | 242.83 | 24.63 | 282.47 | 0.4230 | 1000.5 | 810.4 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 9.55 | 242.68 | 24.48 | 282.96 | 0.4212 | 993.0 | 833.5 | |
| 0.00 | 1.99 | 0.00 | 1.09 | 11.43 | 242.80 | 24.61 | 287.26 | 0.4292 | 993.0 | 801.7 | |
| 0.00 | 6.15 | 0.00 | 3.36 | 10.15 | 242.62 | 24.43 | 284.39 | 0.4221 | 987.0 | 929.2 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 9.28 | 242.52 | 24.33 | 282.40 | 0.4181 | 949.0 | 825.5 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 9.88 | 242.54 | 24.34 | 283.81 | 0.4199 | 1017.0 | 867.5 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 10.51 | 242.49 | 24.29 | 285.30 | 0.4212 | 974.0 | 812.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 11.00 | 242.36 | 24.17 | 286.49 | 0.4210 | 874.0 | 699.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
