SDO HMI 2011-10-30 18:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.01 | 1001.82 | 113.24 | 616.46 | 6.50 | 253.97 | 36.33 | 275.04 | 0.5925 | -448.7 | -268.1 | |
|
previous
or next observation for the same group /

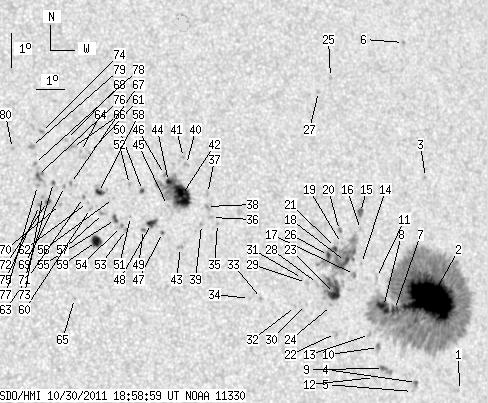

back to the solar disc SDO HMI 2011-10-30 18:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.50 | 3.14 | 257.06 | 39.42 | 269.40 | 0.6363 | -537.0 | -524.4 | |
| 96.80 | 686.96 | 61.14 | 432.47 | 5.90 | 256.12 | 38.48 | 273.75 | 0.6225 | -1370.3 | -386.7 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 9.54 | 256.32 | 38.68 | 279.58 | 0.6273 | -749.0 | -610.2 | |
| 1.39 | 2.94 | 0.87 | 1.84 | 3.46 | 255.43 | 37.79 | 269.76 | 0.6139 | 603.8 | 600.0 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 3.20 | 255.27 | 37.62 | 269.32 | 0.6118 | 611.0 | 397.0 | |
| 0.00 | 1.56 | 0.00 | 0.99 | 13.61 | 256.13 | 38.49 | 286.06 | 0.6318 | -641.0 | -518.0 | |
| 5.11 | -2.00 | 3.17 | -2.00 | 5.67 | 254.73 | 37.09 | 273.38 | 0.6035 | -989.9 | 999999 | |
| 9.44 | -2.00 | 5.82 | -2.00 | 5.78 | 254.33 | 36.69 | 273.56 | 0.5978 | -1132.3 | 999999 | |
| 1.13 | 6.67 | 0.69 | 4.11 | 3.93 | 254.21 | 36.57 | 270.46 | 0.5967 | 736.8 | 270.0 | |
| 0.00 | 3.46 | 0.00 | 2.13 | 4.57 | 254.06 | 36.42 | 271.52 | 0.5943 | 526.0 | 376.9 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 6.65 | 254.14 | 36.50 | 275.03 | 0.5953 | -654.0 | -563.0 | |
| 0.00 | 1.90 | 0.00 | 1.17 | 3.68 | 253.87 | 36.23 | 270.01 | 0.5920 | 589.0 | 358.5 | |
| 0.00 | 2.86 | 0.00 | 1.75 | 4.97 | 253.75 | 36.11 | 272.19 | 0.5898 | -634.0 | -500.3 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 7.09 | 253.62 | 35.98 | 275.81 | 0.5882 | 414.0 | 288.9 | |
| 4.07 | 4.68 | 2.49 | 2.87 | 8.61 | 253.73 | 36.09 | 278.38 | 0.5910 | 715.6 | 681.9 | |
| 0.00 | 1.30 | 0.00 | 0.79 | 8.11 | 253.68 | 36.04 | 277.53 | 0.5898 | 479.0 | 365.9 | |
| 0.00 | 3.03 | 0.00 | 1.85 | 6.78 | 253.33 | 35.69 | 275.29 | 0.5840 | -823.0 | -713.7 | |
| 2.51 | 104.07 | 1.52 | 62.92 | 7.18 | 253.03 | 35.39 | 276.00 | 0.5800 | -769.2 | -210.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 7.72 | 252.94 | 35.30 | 276.94 | 0.5790 | 536.0 | 503.0 | |
| 0.35 | 2.16 | 0.21 | 1.31 | 8.11 | 252.90 | 35.26 | 277.62 | 0.5788 | 820.8 | 713.9 | |
| 1.04 | -18.00 | 0.63 | -18.00 | 7.61 | 252.71 | 35.07 | 276.77 | 0.5757 | 678.4 | 999999 | |
| 0.00 | 3.03 | 0.00 | 1.83 | 5.06 | 252.51 | 34.87 | 272.31 | 0.5721 | -646.0 | -535.5 | |
| 10.48 | -18.00 | 6.32 | -18.00 | 6.25 | 252.55 | 34.91 | 274.40 | 0.5728 | -955.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 5.89 | 252.42 | 34.78 | 273.78 | 0.5708 | -778.0 | -633.1 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 12.69 | 253.17 | 35.53 | 285.38 | 0.5902 | -744.0 | -580.8 | |
| 2.60 | -18.00 | 1.56 | -18.00 | 7.39 | 252.43 | 34.79 | 276.40 | 0.5716 | 675.8 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.95 | 12.29 | 252.66 | 35.01 | 284.85 | 0.5822 | -740.0 | -602.4 | |
| 0.00 | 1.73 | 0.00 | 1.04 | 6.57 | 251.96 | 34.32 | 274.99 | 0.5644 | -549.0 | -396.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 6.62 | 251.56 | 33.92 | 275.10 | 0.5587 | -664.0 | -508.0 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 5.96 | 251.51 | 33.87 | 273.92 | 0.5578 | -516.0 | -491.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 6.74 | 251.43 | 33.79 | 275.33 | 0.5568 | -531.0 | -373.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 5.92 | 251.12 | 33.47 | 273.86 | 0.5520 | -762.0 | -635.5 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 6.21 | 249.92 | 32.28 | 274.43 | 0.5346 | 760.0 | 635.0 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 6.23 | 249.50 | 31.86 | 274.48 | 0.5284 | 577.0 | 528.1 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 8.51 | 248.55 | 30.91 | 278.96 | 0.5164 | 689.0 | 538.1 | |
| 0.00 | 1.99 | 0.00 | 1.15 | 8.69 | 248.36 | 30.72 | 279.36 | 0.5138 | 828.0 | 660.3 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 9.41 | 248.29 | 30.65 | 280.77 | 0.5139 | 722.0 | 601.7 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 9.03 | 248.21 | 30.57 | 280.04 | 0.5122 | 899.0 | 778.3 | |
| 0.00 | 1.65 | 0.00 | 0.94 | 8.50 | 247.99 | 30.35 | 279.05 | 0.5081 | 777.0 | 579.9 | |
| 0.00 | 2.16 | 0.00 | 1.24 | 10.31 | 247.64 | 30.00 | 282.69 | 0.5063 | 600.0 | 508.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 10.52 | 247.56 | 29.92 | 283.13 | 0.5056 | 707.0 | 594.0 | |
| 23.90 | 65.54 | 13.65 | 37.37 | 9.39 | 247.37 | 29.73 | 280.94 | 0.5004 | -1077.5 | -293.2 | |
| 0.00 | 2.34 | 0.00 | 1.33 | 7.84 | 247.21 | 29.57 | 277.88 | 0.4955 | 700.0 | 668.7 | |
| 1.99 | -42.00 | 1.13 | -42.00 | 9.83 | 246.97 | 29.32 | 281.92 | 0.4952 | 557.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 9.11 | 246.86 | 29.22 | 280.51 | 0.4923 | -608.0 | -430.5 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 10.04 | 246.85 | 29.21 | 282.39 | 0.4940 | 777.0 | 685.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 8.31 | 246.62 | 28.98 | 278.94 | 0.4873 | 642.0 | 598.6 | |
| 4.94 | 6.32 | 2.79 | 3.57 | 8.60 | 246.27 | 28.63 | 279.59 | 0.4824 | 773.6 | 545.9 | |
| 1.47 | 1.73 | 0.83 | 0.98 | 8.43 | 245.98 | 28.34 | 279.31 | 0.4778 | 767.9 | 482.0 | |
| 1.56 | 2.16 | 0.88 | 1.22 | 9.59 | 246.05 | 28.40 | 281.71 | 0.4810 | 755.5 | 512.6 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 8.83 | 245.57 | 27.93 | 280.25 | 0.4723 | -585.0 | -430.3 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 9.79 | 245.62 | 27.98 | 282.25 | 0.4750 | 812.0 | 659.2 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 8.45 | 245.40 | 27.76 | 279.48 | 0.4690 | 881.0 | 686.8 | |
| 0.00 | 1.90 | 0.00 | 1.07 | 8.54 | 245.24 | 27.60 | 279.73 | 0.4667 | 906.0 | 693.4 | |
| 2.68 | 3.38 | 1.50 | 1.89 | 8.76 | 245.05 | 27.41 | 280.23 | 0.4643 | 866.5 | 757.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 9.39 | 245.04 | 27.40 | 281.58 | 0.4653 | 420.0 | 291.1 | |
| 0.00 | 2.77 | 0.00 | 1.54 | 8.95 | 244.66 | 27.02 | 280.76 | 0.4587 | 888.0 | 679.5 | |
| 2.77 | 5.28 | 1.54 | 2.94 | 9.59 | 244.54 | 26.90 | 282.16 | 0.4583 | 821.2 | 715.2 | |
| 7.45 | 8.92 | 4.13 | 4.95 | 8.13 | 244.36 | 26.72 | 279.03 | 0.4526 | 985.9 | 771.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | 9.12 | 244.23 | 26.59 | 281.24 | 0.4525 | 903.0 | 660.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 10.79 | 244.35 | 26.71 | 284.84 | 0.4586 | 611.0 | 504.0 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 9.30 | 244.15 | 26.51 | 281.67 | 0.4516 | 803.0 | 649.5 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 9.45 | 244.03 | 26.39 | 282.05 | 0.4501 | 867.0 | 763.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 10.83 | 244.05 | 26.41 | 285.05 | 0.4542 | 747.0 | 657.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 6.46 | 243.52 | 25.88 | 275.42 | 0.4375 | 725.0 | 551.2 | |
| 0.00 | 3.55 | 0.00 | 1.97 | 10.96 | 243.79 | 26.15 | 285.45 | 0.4508 | 798.0 | 733.6 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 9.89 | 243.62 | 25.98 | 283.15 | 0.4451 | 960.0 | 743.6 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 11.21 | 243.61 | 25.97 | 286.06 | 0.4489 | 676.0 | 573.8 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 9.80 | 243.42 | 25.78 | 283.05 | 0.4417 | 902.0 | 689.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 9.27 | 243.24 | 25.60 | 281.91 | 0.4376 | 880.0 | 677.7 | |
| 0.95 | 1.13 | 0.52 | 0.62 | 9.94 | 243.06 | 25.42 | 283.48 | 0.4366 | 818.7 | 845.0 | |
| 1.73 | 2.60 | 0.95 | 1.42 | 9.38 | 242.81 | 25.17 | 282.30 | 0.4313 | 991.8 | 908.5 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 9.53 | 242.66 | 25.02 | 282.71 | 0.4294 | 984.0 | 839.8 | |
| 0.00 | 1.90 | 0.00 | 1.05 | 11.47 | 242.79 | 25.15 | 287.06 | 0.4376 | 913.0 | 732.6 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 9.27 | 242.54 | 24.90 | 282.14 | 0.4268 | 865.0 | 830.0 | |
| 1.65 | 9.18 | 0.90 | 5.03 | 10.16 | 242.54 | 24.90 | 284.22 | 0.4294 | 1046.0 | 762.4 | |
| 0.00 | 1.65 | 0.00 | 0.90 | 9.86 | 242.52 | 24.88 | 283.54 | 0.4281 | 983.0 | 720.6 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 10.52 | 242.47 | 24.83 | 285.08 | 0.4294 | 879.0 | 762.8 | |
| 0.00 | 3.46 | 0.00 | 1.90 | 11.04 | 242.42 | 24.78 | 286.27 | 0.4303 | 935.0 | 733.3 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 11.00 | 241.78 | 24.14 | 286.51 | 0.4205 | 815.0 | 611.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
