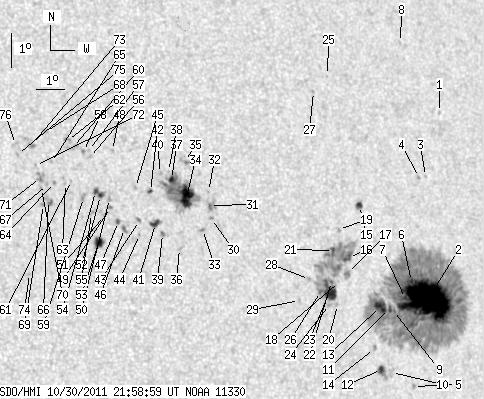

SDO HMI 2011-10-30 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.21 | 1058.20 | 116.49 | 664.16 | 6.60 | 253.85 | 37.86 | 275.17 | 0.6136 | -434.4 | -231.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-30 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.92 | 11.44 | 257.38 | 41.40 | 282.14 | 0.6653 | -424.0 | -312.3 | |
| 99.07 | 707.43 | 64.09 | 455.97 | 5.90 | 256.17 | 40.18 | 273.76 | 0.6455 | -1197.1 | -360.6 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 9.56 | 256.51 | 40.53 | 279.40 | 0.6519 | -496.0 | -423.2 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 9.54 | 256.27 | 40.29 | 279.40 | 0.6487 | -716.0 | -573.8 | |
| 0.00 | 1.73 | 0.00 | 1.11 | 3.34 | 255.45 | 39.47 | 269.73 | 0.6369 | 615.0 | 534.7 | |
| 1.82 | -2.00 | 1.17 | -2.00 | 6.46 | 255.59 | 39.61 | 274.65 | 0.6379 | -1083.3 | 999999 | |
| 1.04 | -2.00 | 0.66 | -2.00 | 5.97 | 255.32 | 39.33 | 273.88 | 0.6341 | -1319.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 13.61 | 256.22 | 40.24 | 285.64 | 0.6543 | -604.0 | -486.0 | |
| 1.21 | -2.00 | 0.77 | -2.00 | 5.64 | 254.82 | 38.84 | 273.34 | 0.6275 | -974.7 | 999999 | |
| 0.00 | 4.68 | 0.00 | 2.96 | 3.80 | 254.63 | 38.64 | 270.39 | 0.6254 | -80.0 | 117.6 | |
| 2.34 | -2.00 | 1.48 | -2.00 | 5.70 | 254.68 | 38.69 | 273.45 | 0.6255 | -925.6 | 999999 | |
| 3.64 | 8.49 | 2.29 | 5.35 | 3.91 | 254.25 | 38.27 | 270.54 | 0.6202 | 660.2 | 541.2 | |
| 9.70 | -2.00 | 6.12 | -2.00 | 5.78 | 254.34 | 38.35 | 273.57 | 0.6208 | -1067.4 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.25 | 4.54 | 254.02 | 38.04 | 271.56 | 0.6167 | 454.0 | 391.3 | |
| 3.72 | 5.02 | 2.34 | 3.15 | 8.82 | 253.84 | 37.86 | 278.54 | 0.6155 | 609.9 | 340.4 | |
| 4.16 | 111.19 | 2.58 | 68.55 | 7.30 | 253.25 | 37.27 | 276.08 | 0.6064 | -500.4 | -131.0 | |
| 0.00 | 6.15 | 0.00 | 3.82 | 6.82 | 253.17 | 37.19 | 275.30 | 0.6050 | -851.0 | -622.5 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 6.60 | 252.85 | 36.87 | 274.94 | 0.6005 | -628.0 | -528.4 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 8.15 | 252.96 | 36.98 | 277.51 | 0.6029 | 567.0 | 559.1 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 5.92 | 252.72 | 36.74 | 273.81 | 0.5985 | -616.0 | -525.0 | |
| 1.47 | -16.00 | 0.91 | -16.00 | 7.53 | 252.71 | 36.73 | 276.51 | 0.5990 | 661.9 | 999999 | |
| 1.30 | -16.00 | 0.80 | -16.00 | 6.61 | 252.55 | 36.57 | 274.98 | 0.5963 | -721.4 | 999999 | |
| 14.64 | -16.00 | 9.00 | -16.00 | 6.32 | 252.45 | 36.47 | 274.48 | 0.5949 | -875.3 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.38 | 5.93 | 252.42 | 36.44 | 273.83 | 0.5944 | -749.0 | -660.9 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 12.76 | 253.19 | 37.21 | 285.05 | 0.6130 | -622.0 | -533.4 | |
| 1.04 | -16.00 | 0.64 | -16.00 | 6.33 | 252.12 | 36.14 | 274.52 | 0.5902 | -849.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 12.31 | 252.58 | 36.60 | 284.46 | 0.6038 | -741.0 | -618.7 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 6.71 | 251.74 | 35.76 | 275.18 | 0.5850 | -633.0 | -571.2 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 6.10 | 251.33 | 35.34 | 274.14 | 0.5789 | -674.0 | -591.8 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 8.68 | 248.36 | 32.38 | 279.04 | 0.5382 | 823.0 | 732.5 | |
| 1.30 | 6.75 | 0.76 | 3.97 | 9.07 | 248.33 | 32.35 | 279.77 | 0.5383 | 807.1 | 632.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 9.49 | 248.34 | 32.35 | 280.55 | 0.5390 | 774.0 | 593.1 | |
| 0.00 | 2.60 | 0.00 | 1.52 | 8.37 | 248.01 | 32.03 | 278.51 | 0.5327 | 842.0 | 713.7 | |
| 18.45 | 85.21 | 10.74 | 49.49 | 9.37 | 247.54 | 31.56 | 280.50 | 0.5273 | -1010.0 | -293.9 | |
| 0.00 | 4.07 | 0.00 | 2.37 | 10.42 | 247.58 | 31.60 | 282.46 | 0.5299 | 723.0 | 531.6 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 7.83 | 247.15 | 31.17 | 277.63 | 0.5194 | 576.0 | 642.2 | |
| 2.34 | -34.00 | 1.36 | -34.00 | 9.90 | 247.07 | 31.08 | 281.61 | 0.5213 | 607.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 10.14 | 246.99 | 31.00 | 282.10 | 0.5206 | 595.0 | 530.0 | |
| 0.00 | 2.34 | 0.00 | 1.35 | 8.30 | 246.60 | 30.61 | 278.63 | 0.5117 | 894.0 | 620.5 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 10.09 | 246.70 | 30.71 | 282.08 | 0.5163 | 710.0 | 626.9 | |
| 4.68 | 8.14 | 2.69 | 4.68 | 8.61 | 246.38 | 30.39 | 279.27 | 0.5089 | 761.5 | 366.1 | |
| 1.13 | 2.08 | 0.65 | 1.19 | 9.57 | 246.29 | 30.31 | 281.17 | 0.5093 | 686.2 | 666.2 | |
| 1.13 | 2.42 | 0.64 | 1.39 | 8.72 | 245.83 | 29.85 | 279.60 | 0.5009 | -696.0 | -607.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 8.31 | 245.79 | 29.81 | 278.77 | 0.4998 | 529.0 | 422.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 9.71 | 245.78 | 29.80 | 281.58 | 0.5021 | 823.0 | 601.4 | |
| 0.43 | 3.29 | 0.25 | 1.87 | 8.50 | 245.29 | 29.31 | 279.27 | 0.4925 | 928.4 | 699.7 | |
| 1.39 | 1.82 | 0.79 | 1.03 | 8.72 | 245.10 | 29.12 | 279.75 | 0.4901 | 840.9 | 817.2 | |
| 0.00 | 1.30 | 0.00 | 0.74 | 10.85 | 245.10 | 29.12 | 284.05 | 0.4946 | 648.0 | 554.8 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 9.15 | 244.86 | 28.88 | 280.68 | 0.4872 | 770.0 | 605.9 | |
| 0.00 | 2.16 | 0.00 | 1.23 | 9.42 | 244.85 | 28.87 | 281.24 | 0.4876 | 551.0 | 366.3 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 8.92 | 244.64 | 28.65 | 280.27 | 0.4834 | 708.0 | 531.5 | |
| 1.73 | 6.75 | 0.98 | 3.82 | 9.52 | 244.55 | 28.57 | 281.53 | 0.4833 | 813.5 | 715.5 | |
| 6.49 | 8.75 | 3.66 | 4.93 | 8.12 | 244.37 | 28.38 | 278.67 | 0.4780 | 918.5 | 663.9 | |
| 1.99 | -52.00 | 1.12 | -52.00 | 9.64 | 244.39 | 28.41 | 281.83 | 0.4812 | 828.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.07 | 8.99 | 244.20 | 28.21 | 280.53 | 0.4769 | 653.0 | 587.7 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 10.67 | 244.29 | 28.30 | 283.97 | 0.4821 | 704.0 | 619.8 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 10.88 | 244.27 | 28.29 | 284.41 | 0.4825 | 516.0 | 345.2 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 10.85 | 244.10 | 28.11 | 284.42 | 0.4798 | 806.0 | 609.8 | |
| 0.00 | 2.60 | 0.00 | 1.46 | 9.48 | 243.97 | 27.98 | 281.62 | 0.4744 | 885.0 | 757.7 | |
| 0.00 | 4.24 | 0.00 | 2.39 | 10.99 | 243.73 | 27.75 | 284.84 | 0.4748 | 696.0 | 713.5 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 10.00 | 243.60 | 27.62 | 282.83 | 0.4702 | 738.0 | 590.8 | |
| 0.00 | 2.51 | 0.00 | 1.41 | 11.20 | 243.58 | 27.60 | 285.35 | 0.4733 | 456.0 | 584.2 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 9.92 | 243.39 | 27.41 | 282.73 | 0.4668 | 805.0 | 608.3 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 9.96 | 243.02 | 27.04 | 282.95 | 0.4613 | 905.0 | 712.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 10.56 | 242.97 | 26.99 | 284.25 | 0.4623 | 739.0 | 634.4 | |
| 0.00 | 5.46 | 0.00 | 3.03 | 9.43 | 242.77 | 26.79 | 281.89 | 0.4562 | 916.0 | 816.1 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 9.91 | 242.78 | 26.80 | 282.92 | 0.4575 | 805.0 | 620.3 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 11.50 | 242.86 | 26.88 | 286.28 | 0.4635 | 963.0 | 746.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 9.32 | 242.59 | 26.61 | 281.70 | 0.4533 | 929.0 | 852.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 9.80 | 242.57 | 26.58 | 282.75 | 0.4540 | 898.0 | 731.6 | |
| 0.00 | 5.98 | 0.00 | 3.32 | 10.13 | 242.56 | 26.58 | 283.47 | 0.4548 | 1008.0 | 820.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 10.49 | 242.43 | 26.44 | 284.32 | 0.4538 | 834.0 | 739.4 | |
| 0.00 | 3.03 | 0.00 | 1.68 | 11.13 | 242.35 | 26.37 | 285.72 | 0.4546 | 825.0 | 807.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 7.28 | 241.98 | 25.99 | 277.30 | 0.4401 | 729.0 | 533.4 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 10.84 | 241.85 | 25.87 | 285.33 | 0.4462 | 865.0 | 676.2 | |
| 0.00 | 3.38 | 0.00 | 1.87 | 11.14 | 241.81 | 25.83 | 286.01 | 0.4466 | 649.0 | 516.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
