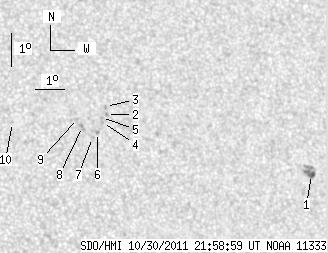

SDO HMI 2011-10-30 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 22.54 | 1.18 | 12.87 | 15.44 | 244.18 | 28.19 | 293.96 | 0.4992 | 562.5 | 44.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-30 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 10.31 | 1.18 | 6.10 | 14.46 | 248.18 | 32.19 | 289.63 | 0.5499 | -822.7 | -780.0 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 16.54 | 241.26 | 25.27 | 297.73 | 0.4643 | 690.0 | 569.7 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 16.79 | 241.26 | 25.28 | 298.21 | 0.4658 | 598.0 | 533.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 16.31 | 241.09 | 25.10 | 297.39 | 0.4605 | 659.0 | 551.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 16.46 | 241.07 | 25.09 | 297.71 | 0.4613 | 661.0 | 625.3 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 16.01 | 240.88 | 24.89 | 296.96 | 0.4558 | 879.0 | 661.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 15.86 | 240.69 | 24.70 | 296.81 | 0.4523 | 767.0 | 658.5 | |
| 0.00 | 2.94 | 0.00 | 1.63 | 16.21 | 240.39 | 24.41 | 297.76 | 0.4503 | 939.0 | 778.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 16.45 | 240.25 | 24.27 | 298.39 | 0.4500 | 768.0 | 613.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 16.40 | 238.05 | 22.07 | 300.34 | 0.4194 | 736.0 | 603.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
