SDO HMI 2011-10-31 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 179.21 | 956.56 | 118.57 | 630.65 | 6.53 | 253.98 | 41.30 | 274.97 | 0.6595 | -455.0 | -205.3 | |
|
previous
or next observation for the same group /

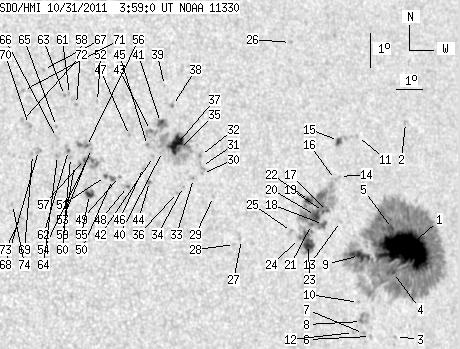

back to the solar disc SDO HMI 2011-10-31 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.10 | 632.79 | 73.03 | 429.85 | 5.84 | 256.27 | 43.59 | 273.74 | 0.6897 | -1197.0 | -346.4 | |
| 0.00 | 1.91 | 0.00 | 1.31 | 9.62 | 256.76 | 44.08 | 279.18 | 0.6971 | -634.0 | -524.8 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 3.28 | 255.66 | 42.98 | 269.97 | 0.6830 | 592.0 | 536.1 | |
| 0.78 | -1.00 | 0.53 | -1.00 | 5.19 | 255.71 | 43.03 | 272.77 | 0.6827 | -910.1 | 999999 | |
| 1.56 | -1.00 | 1.06 | -1.00 | 6.50 | 255.80 | 43.12 | 274.69 | 0.6837 | -891.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.92 | 3.33 | 254.65 | 41.97 | 269.96 | 0.6699 | 465.0 | 376.4 | |
| 0.00 | 1.91 | 0.00 | 1.26 | 3.44 | 254.38 | 41.69 | 270.10 | 0.6663 | 714.0 | 564.0 | |
| 1.30 | 8.92 | 0.86 | 5.92 | 3.80 | 254.32 | 41.63 | 270.64 | 0.6653 | 719.9 | 263.2 | |
| 11.78 | -1.00 | 7.80 | -1.00 | 5.76 | 254.38 | 41.70 | 273.61 | 0.6655 | -1058.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 4.37 | 254.23 | 41.55 | 271.50 | 0.6639 | -429.0 | -472.1 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 9.31 | 254.72 | 42.04 | 278.91 | 0.6712 | 633.0 | 544.9 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 3.49 | 253.98 | 41.30 | 270.15 | 0.6611 | 590.0 | 407.1 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 6.81 | 253.72 | 41.04 | 275.20 | 0.6570 | -712.0 | -542.4 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 8.15 | 253.84 | 41.16 | 277.24 | 0.6590 | 631.0 | 521.9 | |
| 2.43 | 6.59 | 1.60 | 4.34 | 9.23 | 253.94 | 41.26 | 278.86 | 0.6611 | 559.4 | 180.6 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 8.07 | 253.67 | 40.99 | 277.13 | 0.6568 | 636.0 | 553.5 | |
| 1.39 | 119.83 | 0.90 | 77.41 | 7.14 | 253.24 | 40.56 | 275.72 | 0.6507 | -547.3 | -134.8 | |
| 2.08 | -17.00 | 1.35 | -17.00 | 6.76 | 253.04 | 40.36 | 275.14 | 0.6480 | -755.9 | 999999 | |
| 0.78 | -17.00 | 0.51 | -17.00 | 7.14 | 253.08 | 40.40 | 275.73 | 0.6487 | -733.4 | 999999 | |
| 7.45 | -17.00 | 4.81 | -17.00 | 7.04 | 252.76 | 40.08 | 275.59 | 0.6443 | -514.0 | 999999 | |
| 0.87 | -17.00 | 0.56 | -17.00 | 6.78 | 252.57 | 39.89 | 275.19 | 0.6418 | -749.1 | 999999 | |
| 4.42 | -17.00 | 2.85 | -17.00 | 7.50 | 252.57 | 39.89 | 276.31 | 0.6420 | 740.6 | 999999 | |
| 9.10 | -17.00 | 5.85 | -17.00 | 6.19 | 252.40 | 39.72 | 274.27 | 0.6394 | -897.6 | 999999 | |
| 0.95 | -17.00 | 0.61 | -17.00 | 6.39 | 252.07 | 39.39 | 274.58 | 0.6349 | -736.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.27 | 6.61 | 251.78 | 39.10 | 274.94 | 0.6311 | -706.0 | -602.8 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 12.25 | 252.51 | 39.83 | 283.69 | 0.6466 | -525.0 | -488.4 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 6.47 | 249.86 | 37.17 | 274.76 | 0.6047 | 444.0 | 499.7 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 6.33 | 249.58 | 36.90 | 274.54 | 0.6009 | 668.0 | 586.7 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 7.79 | 248.93 | 36.25 | 277.04 | 0.5925 | 651.0 | 539.4 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 8.50 | 248.59 | 35.91 | 278.27 | 0.5884 | 716.0 | 626.1 | |
| 0.00 | 2.77 | 0.00 | 1.70 | 8.71 | 248.58 | 35.90 | 278.63 | 0.5884 | 809.0 | 690.3 | |
| 0.00 | 1.82 | 0.00 | 1.11 | 9.04 | 248.58 | 35.90 | 279.19 | 0.5888 | 904.0 | 731.0 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 8.36 | 248.24 | 35.56 | 278.08 | 0.5834 | 835.0 | 767.3 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 8.14 | 247.85 | 35.17 | 277.75 | 0.5776 | 730.0 | 584.9 | |
| 0.78 | 61.95 | 0.47 | 37.52 | 9.28 | 247.83 | 35.14 | 279.72 | 0.5786 | -625.1 | -324.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 7.97 | 247.61 | 34.93 | 277.48 | 0.5741 | 697.0 | 619.0 | |
| 12.13 | -35.00 | 7.35 | -35.00 | 9.40 | 247.73 | 35.05 | 279.95 | 0.5774 | -1021.1 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.21 | 10.57 | 247.73 | 35.04 | 281.97 | 0.5792 | 657.0 | 482.0 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 11.18 | 247.51 | 34.83 | 283.07 | 0.5774 | 701.0 | 564.9 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 9.22 | 247.19 | 34.51 | 279.71 | 0.5696 | -512.0 | -475.4 | |
| 2.86 | 8.92 | 1.72 | 5.38 | 10.09 | 247.22 | 34.54 | 281.23 | 0.5713 | 661.8 | 18.5 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 9.08 | 246.85 | 34.17 | 279.53 | 0.5645 | -676.0 | -536.9 | |
| 0.35 | 7.02 | 0.21 | 4.21 | 9.86 | 246.83 | 34.15 | 280.92 | 0.5654 | 778.8 | 469.3 | |
| 1.56 | 2.17 | 0.93 | 1.29 | 8.35 | 246.63 | 33.94 | 278.25 | 0.5604 | 706.5 | 574.7 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 9.42 | 246.67 | 33.99 | 280.16 | 0.5624 | 512.0 | 290.0 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 8.77 | 246.45 | 33.77 | 279.04 | 0.5584 | 862.0 | 470.4 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 9.75 | 246.05 | 33.37 | 280.87 | 0.5541 | 454.0 | 353.8 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 8.23 | 245.82 | 33.14 | 278.16 | 0.5487 | 605.0 | 595.9 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 8.54 | 245.56 | 32.88 | 278.76 | 0.5453 | 744.0 | 569.4 | |
| 2.34 | 5.46 | 1.38 | 3.21 | 8.46 | 245.30 | 32.62 | 278.66 | 0.5415 | 618.4 | 672.8 | |
| 1.13 | -50.00 | 0.66 | -50.00 | 8.56 | 245.06 | 32.38 | 278.88 | 0.5381 | 770.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 10.81 | 245.02 | 32.34 | 283.04 | 0.5415 | 585.0 | 449.0 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 9.42 | 244.65 | 31.97 | 280.55 | 0.5334 | 611.0 | 503.2 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 9.30 | 244.60 | 31.92 | 280.34 | 0.5325 | 629.0 | 499.5 | |
| 3.99 | 6.85 | 2.32 | 3.99 | 8.05 | 244.45 | 31.76 | 278.01 | 0.5285 | 887.2 | 862.7 | |
| 0.78 | 7.11 | 0.46 | 4.14 | 9.48 | 244.48 | 31.80 | 280.71 | 0.5310 | 833.0 | 743.4 | |
| 0.87 | 17.33 | 0.50 | 10.12 | 9.10 | 244.37 | 31.69 | 280.01 | 0.5288 | 938.6 | 633.4 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 10.75 | 244.26 | 31.58 | 283.14 | 0.5304 | 852.0 | 636.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 8.93 | 244.00 | 31.32 | 279.77 | 0.5231 | 775.0 | 659.2 | |
| 0.00 | 1.65 | 0.00 | 0.95 | 9.18 | 243.88 | 31.20 | 280.26 | 0.5218 | 741.0 | 648.4 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 11.06 | 244.05 | 31.37 | 283.79 | 0.5281 | 680.0 | 601.6 | |
| 0.43 | 3.29 | 0.25 | 1.91 | 9.39 | 243.83 | 31.15 | 280.68 | 0.5214 | 934.6 | 715.2 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 11.04 | 243.87 | 31.19 | 283.80 | 0.5254 | 819.0 | 708.0 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 9.26 | 243.43 | 30.75 | 280.51 | 0.5153 | 818.0 | 656.1 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 10.12 | 243.48 | 30.80 | 282.17 | 0.5177 | 719.0 | 514.2 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 9.79 | 243.45 | 30.77 | 281.55 | 0.5166 | 733.0 | 605.2 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 11.84 | 243.22 | 30.54 | 285.54 | 0.5183 | 706.0 | 548.5 | |
| 0.00 | 3.99 | 0.00 | 2.29 | 9.43 | 242.78 | 30.10 | 281.01 | 0.5060 | 880.0 | 748.4 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 9.32 | 242.56 | 29.88 | 280.84 | 0.5026 | 867.0 | 689.8 | |
| 0.00 | 2.51 | 0.00 | 1.44 | 10.22 | 242.51 | 29.83 | 282.64 | 0.5037 | 778.0 | 755.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 11.24 | 242.45 | 29.76 | 284.66 | 0.5054 | 903.0 | 730.1 | |
| 0.00 | 1.65 | 0.00 | 0.94 | 10.35 | 242.32 | 29.63 | 282.95 | 0.5011 | 777.0 | 613.6 | |
| 0.00 | 2.60 | 0.00 | 1.48 | 7.46 | 241.99 | 29.31 | 277.21 | 0.4912 | 638.0 | 618.4 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 7.86 | 241.74 | 29.06 | 278.06 | 0.4880 | 733.0 | 529.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
