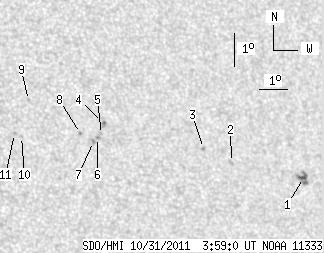

SDO HMI 2011-10-31 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.82 | 22.52 | 2.33 | 13.33 | 15.43 | 244.40 | 31.72 | 291.94 | 0.5474 | 201.4 | -60.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-31 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.47 | 8.84 | 2.13 | 5.44 | 14.57 | 248.25 | 35.57 | 288.54 | 0.5960 | -823.8 | -730.3 | |
| 0.00 | 2.25 | 0.00 | 1.35 | 15.13 | 245.66 | 32.98 | 290.51 | 0.5632 | -846.0 | -683.8 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 15.60 | 244.72 | 32.03 | 291.75 | 0.5522 | -811.0 | -646.5 | |
| 0.35 | 2.60 | 0.20 | 1.49 | 16.52 | 241.24 | 28.56 | 295.37 | 0.5093 | 725.8 | 594.2 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 16.16 | 241.15 | 28.47 | 294.75 | 0.5062 | 699.0 | 564.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 16.08 | 241.00 | 28.31 | 294.69 | 0.5036 | 834.0 | 732.1 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 15.96 | 240.84 | 28.15 | 294.57 | 0.5009 | 770.0 | 736.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 16.22 | 240.42 | 27.74 | 295.34 | 0.4965 | 877.0 | 699.6 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 17.28 | 238.77 | 26.09 | 298.58 | 0.4801 | 529.0 | 444.0 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 16.20 | 238.37 | 25.68 | 296.78 | 0.4681 | 613.0 | 516.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 16.30 | 238.14 | 25.46 | 297.15 | 0.4656 | 702.0 | 634.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
