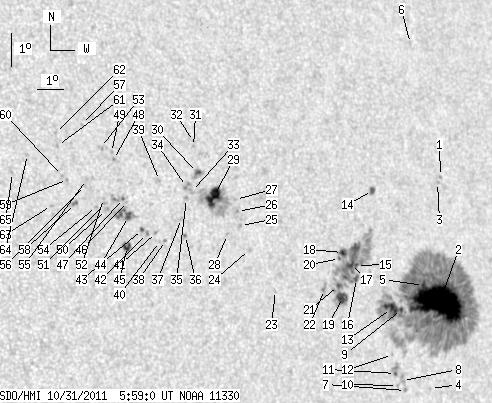

SDO HMI 2011-10-31 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 164.46 | 929.17 | 110.69 | 625.27 | 6.45 | 254.21 | 42.62 | 274.82 | 0.6766 | -490.1 | -210.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-31 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.73 | 9.57 | 256.89 | 45.30 | 279.03 | 0.7121 | -668.0 | -588.8 | |
| 99.04 | 627.77 | 68.89 | 434.75 | 5.83 | 256.34 | 44.75 | 273.75 | 0.7043 | -1231.3 | -338.3 | |
| 0.00 | 1.21 | 0.00 | 0.85 | 9.40 | 256.74 | 45.15 | 278.80 | 0.7101 | -540.0 | -531.1 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 3.30 | 255.76 | 44.18 | 270.10 | 0.6981 | 515.0 | 447.4 | |
| 1.73 | -2.00 | 1.19 | -2.00 | 6.37 | 255.73 | 44.14 | 274.52 | 0.6966 | -1040.8 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.16 | 13.61 | 256.43 | 44.84 | 284.76 | 0.7111 | -553.0 | -389.8 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 3.29 | 254.73 | 43.14 | 270.01 | 0.6850 | 542.0 | 466.2 | |
| 0.00 | 4.68 | 0.00 | 3.17 | 3.60 | 254.62 | 43.04 | 270.45 | 0.6835 | 15.0 | -81.5 | |
| 1.39 | -2.00 | 0.94 | -2.00 | 5.71 | 254.74 | 43.16 | 273.55 | 0.6842 | -987.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 3.46 | 254.41 | 42.82 | 270.23 | 0.6808 | 734.0 | 604.1 | |
| 0.95 | 6.76 | 0.64 | 4.55 | 3.82 | 254.35 | 42.76 | 270.76 | 0.6799 | 674.5 | 518.2 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 4.39 | 254.27 | 42.68 | 271.60 | 0.6785 | -563.0 | -443.7 | |
| 9.10 | -2.00 | 6.12 | -2.00 | 5.76 | 254.34 | 42.75 | 273.62 | 0.6791 | -1012.2 | 999999 | |
| 3.38 | 3.73 | 2.26 | 2.50 | 9.31 | 253.99 | 42.41 | 278.89 | 0.6759 | 599.9 | 383.0 | |
| 1.04 | 125.64 | 0.69 | 82.60 | 7.11 | 253.06 | 41.47 | 275.66 | 0.6627 | -611.3 | -89.7 | |
| 2.51 | -15.00 | 1.66 | -15.00 | 6.72 | 253.02 | 41.43 | 275.08 | 0.6620 | -768.2 | 999999 | |
| 3.38 | -15.00 | 2.22 | -15.00 | 7.15 | 252.82 | 41.23 | 275.73 | 0.6596 | -526.5 | 999999 | |
| 2.43 | -15.00 | 1.59 | -15.00 | 7.53 | 252.54 | 40.96 | 276.31 | 0.6561 | 837.0 | 999999 | |
| 9.01 | -15.00 | 5.88 | -15.00 | 6.19 | 252.41 | 40.82 | 274.27 | 0.6540 | -891.7 | 999999 | |
| 0.95 | -15.00 | 0.62 | -15.00 | 7.35 | 252.41 | 40.82 | 276.06 | 0.6542 | 616.0 | 999999 | |
| 2.25 | -15.00 | 1.47 | -15.00 | 6.55 | 252.28 | 40.69 | 274.83 | 0.6524 | -818.2 | 999999 | |
| 0.00 | 5.20 | 0.00 | 3.36 | 6.46 | 251.72 | 40.13 | 274.70 | 0.6449 | -795.0 | -651.2 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 6.53 | 249.83 | 38.24 | 274.85 | 0.6194 | 677.0 | 471.4 | |
| 0.00 | 1.56 | 0.00 | 0.97 | 7.79 | 248.96 | 37.37 | 276.96 | 0.6081 | 561.0 | 482.1 | |
| 0.00 | 1.65 | 0.00 | 1.02 | 8.52 | 248.70 | 37.11 | 278.19 | 0.6051 | 734.0 | 729.2 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 8.94 | 248.63 | 37.05 | 278.90 | 0.6046 | 878.0 | 758.9 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 9.30 | 248.60 | 37.01 | 279.50 | 0.6046 | 804.0 | 550.3 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 8.28 | 248.18 | 36.59 | 277.84 | 0.5977 | 723.0 | 552.1 | |
| 14.21 | 56.41 | 8.73 | 34.66 | 9.43 | 247.79 | 36.20 | 279.83 | 0.5936 | -997.3 | -252.7 | |
| 2.25 | 7.19 | 1.38 | 4.39 | 10.17 | 247.28 | 35.70 | 281.17 | 0.5876 | 635.9 | 352.8 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 10.96 | 247.24 | 35.65 | 282.51 | 0.5884 | 656.0 | 545.9 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 11.11 | 247.26 | 35.67 | 282.76 | 0.5889 | 598.0 | 545.7 | |
| 0.00 | 2.77 | 0.00 | 1.69 | 9.62 | 246.99 | 35.40 | 280.28 | 0.5827 | 134.0 | -52.8 | |
| 0.00 | 2.86 | 0.00 | 1.74 | 9.78 | 246.82 | 35.24 | 280.58 | 0.5806 | 758.0 | 624.2 | |
| 0.00 | 2.43 | 0.00 | 1.47 | 9.42 | 246.78 | 35.19 | 279.97 | 0.5795 | 390.0 | 261.0 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 8.32 | 246.62 | 35.04 | 278.09 | 0.5760 | 851.0 | 704.0 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 8.83 | 246.53 | 34.94 | 278.99 | 0.5752 | 567.0 | 383.5 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 8.20 | 245.88 | 34.29 | 277.97 | 0.5653 | 651.0 | 543.8 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 10.00 | 245.86 | 34.27 | 281.15 | 0.5674 | 565.0 | 383.5 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 8.18 | 245.66 | 34.07 | 277.96 | 0.5621 | 556.0 | 349.0 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 8.45 | 245.58 | 33.99 | 278.46 | 0.5612 | 762.0 | 607.4 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 8.44 | 245.25 | 33.66 | 278.48 | 0.5565 | 820.0 | 606.5 | |
| 1.30 | 1.39 | 0.77 | 0.82 | 8.56 | 245.08 | 33.49 | 278.73 | 0.5542 | 728.1 | 777.0 | |
| 3.99 | 17.85 | 2.36 | 10.54 | 8.97 | 244.62 | 33.03 | 279.55 | 0.5481 | 759.8 | 695.7 | |
| 4.42 | 6.24 | 2.61 | 3.68 | 8.08 | 244.49 | 32.90 | 277.94 | 0.5452 | 868.8 | 752.4 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 9.42 | 244.63 | 33.04 | 280.36 | 0.5489 | 501.0 | 394.6 | |
| 1.13 | 7.28 | 0.67 | 4.29 | 9.52 | 244.49 | 32.91 | 280.56 | 0.5472 | 772.2 | 626.0 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 10.70 | 244.27 | 32.68 | 282.76 | 0.5462 | 805.0 | 696.5 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 10.91 | 244.22 | 32.63 | 283.16 | 0.5460 | 597.0 | 517.3 | |
| 0.00 | 2.51 | 0.00 | 1.47 | 9.21 | 243.85 | 32.26 | 280.14 | 0.5374 | 791.0 | 624.1 | |
| 0.00 | 1.56 | 0.00 | 0.91 | 9.39 | 243.83 | 32.25 | 280.48 | 0.5374 | 1025.0 | 769.5 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 9.55 | 243.78 | 32.19 | 280.77 | 0.5369 | 851.0 | 764.1 | |
| 0.00 | 2.17 | 0.00 | 1.27 | 11.07 | 243.85 | 32.26 | 283.57 | 0.5410 | 724.0 | 641.3 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 9.32 | 243.51 | 31.92 | 280.40 | 0.5325 | 723.0 | 641.7 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 10.14 | 243.24 | 31.65 | 282.00 | 0.5302 | 568.0 | 484.1 | |
| 0.00 | 1.21 | 0.00 | 0.71 | 9.96 | 243.18 | 31.59 | 281.68 | 0.5290 | 739.0 | 539.5 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 11.79 | 243.26 | 31.67 | 285.07 | 0.5343 | 627.0 | 559.8 | |
| 0.00 | 1.99 | 0.00 | 1.16 | 9.44 | 242.77 | 31.18 | 280.79 | 0.5221 | 966.0 | 847.6 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 10.16 | 242.57 | 30.98 | 282.23 | 0.5205 | 898.0 | 714.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 10.29 | 242.40 | 30.82 | 282.51 | 0.5184 | 747.0 | 576.4 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 11.19 | 242.33 | 30.74 | 284.26 | 0.5195 | 841.0 | 685.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 11.56 | 242.30 | 30.71 | 284.96 | 0.5200 | 680.0 | 465.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 9.41 | 241.93 | 30.34 | 280.94 | 0.5096 | 909.0 | 725.3 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 10.97 | 241.25 | 29.66 | 284.18 | 0.5031 | 772.0 | 559.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 10.45 | 240.67 | 29.08 | 283.35 | 0.4933 | 752.0 | 565.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
