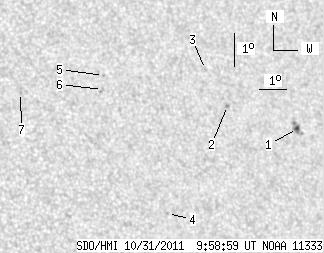

SDO HMI 2011-10-31 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 14.82 | 1.34 | 9.23 | 15.04 | 245.56 | 36.16 | 289.32 | 0.6053 | 15.9 | -189.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-31 09:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 7.19 | 1.34 | 4.62 | 14.53 | 248.32 | 38.92 | 287.47 | 0.6398 | -808.3 | -616.1 | |
| 0.00 | 1.65 | 0.00 | 1.03 | 15.34 | 245.76 | 36.36 | 289.57 | 0.6090 | -817.0 | -672.2 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 16.47 | 245.15 | 35.75 | 291.62 | 0.6049 | -483.0 | -352.5 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 12.20 | 242.97 | 33.57 | 285.23 | 0.5623 | 583.0 | 461.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 16.45 | 241.33 | 31.92 | 293.34 | 0.5545 | 717.0 | 540.1 | |
| 0.00 | 1.65 | 0.00 | 0.98 | 16.03 | 241.21 | 31.81 | 292.66 | 0.5512 | 579.0 | 571.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 16.05 | 238.27 | 28.87 | 294.35 | 0.5113 | 621.0 | 586.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
