SDO HMI 2011-10-31 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.21 | 29.18 | 5.71 | 16.32 | 30.98 | 215.68 | 8.46 | 344.20 | 0.4672 | -757.6 | -560.0 | |
|
previous
or next observation for the same group /

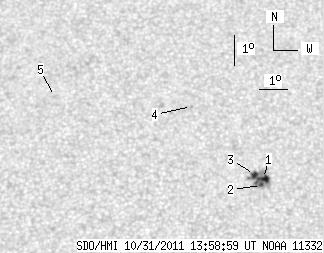

back to the solar disc SDO HMI 2011-10-31 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.28 | 27.01 | 2.95 | 15.09 | 30.77 | 216.15 | 8.94 | 343.27 | 0.4657 | -1027.4 | -630.0 | |
| 1.64 | -1.00 | 0.92 | -1.00 | 30.54 | 216.06 | 8.84 | 343.27 | 0.4619 | -1137.9 | 999999 | |
| 3.29 | -1.00 | 1.84 | -1.00 | 30.91 | 215.84 | 8.63 | 343.90 | 0.4663 | -891.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 33.22 | 213.81 | 6.59 | 348.72 | 0.4930 | -722.0 | -560.2 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 33.58 | 208.93 | 1.71 | 357.07 | 0.4893 | 599.0 | 469.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
