SDO HMI 2011-10-31 17:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.49 | 705.71 | 114.45 | 539.90 | 6.36 | 254.69 | 49.68 | 274.66 | 0.7614 | -502.1 | -189.9 | |
|
previous
or next observation for the same group /

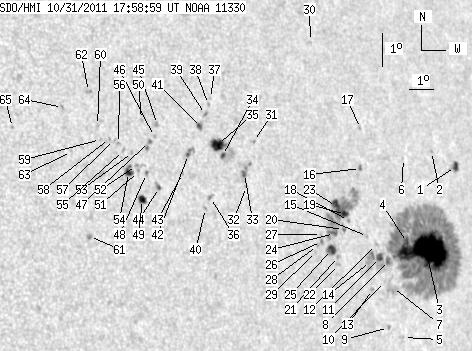

back to the solar disc SDO HMI 2011-10-31 17:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.37 | 6.14 | 2.79 | 5.08 | 8.22 | 258.45 | 53.44 | 276.94 | 0.8031 | -436.3 | -431.7 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 8.74 | 257.35 | 52.34 | 277.61 | 0.7917 | -519.0 | -455.7 | |
| 91.30 | 475.78 | 72.52 | 377.17 | 5.79 | 256.62 | 51.61 | 273.86 | 0.7839 | -1073.0 | -264.3 | |
| 0.69 | -3.00 | 0.54 | -3.00 | 6.11 | 255.75 | 50.74 | 274.25 | 0.7743 | -874.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.74 | 3.30 | 255.28 | 50.27 | 270.59 | 0.7702 | 479.0 | 394.5 | |
| 0.00 | 0.52 | 0.00 | 0.41 | 8.62 | 255.96 | 50.95 | 277.49 | 0.7767 | 393.0 | 322.5 | |
| 0.00 | 12.72 | 0.00 | 9.74 | 4.82 | 254.89 | 49.89 | 272.55 | 0.7651 | -322.0 | -308.1 | |
| 2.86 | -3.00 | 2.18 | -3.00 | 5.63 | 254.80 | 49.79 | 273.61 | 0.7638 | -761.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.39 | 3.64 | 254.60 | 49.60 | 270.99 | 0.7624 | 465.0 | 468.0 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 5.02 | 254.54 | 49.54 | 272.79 | 0.7611 | -594.0 | -487.1 | |
| 3.98 | -3.00 | 3.02 | -3.00 | 5.75 | 254.39 | 49.38 | 273.75 | 0.7592 | -857.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.05 | 6.14 | 254.30 | 49.29 | 274.27 | 0.7581 | -664.0 | -536.4 | |
| 0.00 | 1.21 | 0.00 | 0.91 | 4.81 | 253.97 | 48.96 | 272.50 | 0.7547 | -722.0 | -548.7 | |
| 0.00 | 11.77 | 0.00 | 8.84 | 5.65 | 253.97 | 48.96 | 273.61 | 0.7544 | -797.0 | -639.7 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 6.40 | 253.92 | 48.91 | 274.61 | 0.7538 | -649.0 | -565.3 | |
| 0.61 | 2.08 | 0.45 | 1.56 | 8.44 | 253.90 | 48.90 | 277.32 | 0.7538 | 724.6 | 597.4 | |
| 0.00 | 1.12 | 0.00 | 0.85 | 9.62 | 254.12 | 49.12 | 278.89 | 0.7568 | 622.0 | 475.8 | |
| 0.00 | 1.47 | 0.00 | 1.09 | 6.92 | 253.13 | 48.12 | 275.31 | 0.7446 | -669.0 | -539.2 | |
| 3.03 | 67.50 | 2.23 | 49.59 | 7.11 | 253.02 | 48.01 | 275.56 | 0.7434 | -583.7 | -38.8 | |
| 0.52 | 1.64 | 0.38 | 1.21 | 6.67 | 252.87 | 47.86 | 274.97 | 0.7416 | -637.0 | -616.2 | |
| 0.00 | 2.08 | 0.00 | 1.52 | 5.88 | 252.55 | 47.54 | 273.90 | 0.7379 | -673.0 | -569.0 | |
| 0.00 | 1.30 | 0.00 | 0.95 | 5.64 | 252.52 | 47.52 | 273.57 | 0.7377 | -643.0 | -564.7 | |
| 7.44 | -19.00 | 5.45 | -19.00 | 7.37 | 252.65 | 47.64 | 275.92 | 0.7391 | 540.8 | 999999 | |
| 2.42 | -19.00 | 1.77 | -19.00 | 6.57 | 252.45 | 47.45 | 274.84 | 0.7368 | -776.7 | 999999 | |
| 6.06 | 8.65 | 4.41 | 6.29 | 6.11 | 252.26 | 47.26 | 274.20 | 0.7345 | -903.1 | -721.6 | |
| 0.00 | 2.16 | 0.00 | 1.56 | 6.37 | 251.85 | 46.85 | 274.56 | 0.7297 | -702.0 | -642.2 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 6.58 | 251.88 | 46.87 | 274.84 | 0.7300 | -636.0 | -448.5 | |
| 0.00 | 1.21 | 0.00 | 0.87 | 6.26 | 251.66 | 46.66 | 274.41 | 0.7274 | -699.0 | -590.6 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 6.08 | 251.60 | 46.59 | 274.16 | 0.7267 | -641.0 | -619.5 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 12.34 | 252.43 | 47.42 | 282.67 | 0.7396 | -473.0 | -450.0 | |
| 0.00 | 1.38 | 0.00 | 0.96 | 9.50 | 249.37 | 44.36 | 279.04 | 0.7006 | 568.0 | 494.1 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 8.18 | 248.87 | 43.87 | 277.18 | 0.6937 | 846.0 | 721.5 | |
| 2.34 | 10.73 | 1.60 | 7.36 | 8.57 | 248.84 | 43.84 | 277.74 | 0.6935 | 792.0 | 424.0 | |
| 1.99 | 9.95 | 1.35 | 6.76 | 9.15 | 248.02 | 43.01 | 278.65 | 0.6835 | -607.4 | -33.1 | |
| 11.16 | 14.37 | 7.54 | 9.71 | 9.49 | 247.86 | 42.85 | 279.16 | 0.6818 | -857.7 | -426.1 | |
| 0.00 | 2.77 | 0.00 | 1.85 | 7.93 | 247.35 | 42.35 | 276.89 | 0.6744 | 714.0 | 607.4 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 10.87 | 247.80 | 42.80 | 281.20 | 0.6825 | 327.0 | 259.2 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 10.70 | 247.69 | 42.68 | 280.96 | 0.6808 | 517.0 | 385.9 | |
| 0.00 | 1.99 | 0.00 | 1.34 | 10.41 | 247.51 | 42.51 | 280.55 | 0.6783 | 664.0 | 510.1 | |
| 0.00 | 1.47 | 0.00 | 0.98 | 7.61 | 247.11 | 42.10 | 276.43 | 0.6711 | 549.0 | 473.4 | |
| 1.12 | 3.72 | 0.75 | 2.49 | 10.03 | 247.29 | 42.28 | 280.02 | 0.6751 | -430.6 | 27.3 | |
| 0.95 | 4.59 | 0.63 | 3.04 | 9.25 | 246.64 | 41.63 | 278.92 | 0.6661 | -781.1 | -769.0 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 8.70 | 246.32 | 41.31 | 278.12 | 0.6615 | -664.0 | -564.8 | |
| 0.78 | 3.20 | 0.51 | 2.08 | 8.33 | 245.35 | 40.35 | 277.63 | 0.6486 | 723.4 | 596.2 | |
| 0.00 | 1.82 | 0.00 | 1.18 | 10.21 | 245.54 | 40.53 | 280.50 | 0.6528 | 636.0 | 535.2 | |
| 0.00 | 1.56 | 0.00 | 1.01 | 9.86 | 245.36 | 40.36 | 279.98 | 0.6501 | 505.0 | 341.2 | |
| 1.47 | 3.63 | 0.95 | 2.35 | 9.72 | 245.15 | 40.14 | 279.80 | 0.6471 | 539.9 | 540.0 | |
| 0.00 | 1.82 | 0.00 | 1.17 | 8.77 | 244.90 | 39.89 | 278.36 | 0.6429 | 613.0 | 469.6 | |
| 4.33 | 5.80 | 2.78 | 3.72 | 8.00 | 244.65 | 39.64 | 277.18 | 0.6390 | 776.0 | 506.4 | |
| 0.00 | 1.56 | 0.00 | 1.01 | 10.39 | 244.93 | 39.92 | 280.86 | 0.6451 | 643.0 | 504.9 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 8.84 | 244.59 | 39.59 | 278.50 | 0.6390 | 570.0 | 479.3 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 9.03 | 244.54 | 39.53 | 278.79 | 0.6384 | 655.0 | 531.2 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 9.42 | 244.43 | 39.43 | 279.42 | 0.6374 | 651.0 | 541.3 | |
| 4.07 | 6.58 | 2.60 | 4.20 | 8.83 | 244.20 | 39.19 | 278.53 | 0.6337 | 855.1 | 747.3 | |
| 0.00 | 1.90 | 0.00 | 1.22 | 9.50 | 244.09 | 39.09 | 279.59 | 0.6330 | 697.0 | 501.4 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 9.72 | 243.93 | 38.92 | 279.95 | 0.6310 | 848.0 | 687.5 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 9.84 | 243.79 | 38.78 | 280.17 | 0.6293 | 469.0 | 520.1 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 9.88 | 243.60 | 38.60 | 280.26 | 0.6268 | 614.0 | 600.3 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 9.87 | 243.25 | 38.25 | 280.29 | 0.6221 | 568.0 | 492.5 | |
| 0.00 | 1.64 | 0.00 | 1.04 | 10.29 | 243.20 | 38.19 | 280.98 | 0.6219 | 764.0 | 622.0 | |
| 0.00 | 2.60 | 0.00 | 1.62 | 7.00 | 242.50 | 37.49 | 275.70 | 0.6094 | 767.0 | 671.8 | |
| 0.00 | 2.68 | 0.00 | 1.69 | 11.32 | 243.00 | 38.00 | 282.67 | 0.6210 | 658.0 | 622.5 | |
| 0.00 | 0.61 | 0.00 | 0.38 | 9.56 | 242.10 | 37.10 | 279.97 | 0.6062 | 664.0 | 543.7 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 10.89 | 241.94 | 36.94 | 282.18 | 0.6060 | 703.0 | 604.2 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 10.38 | 240.00 | 34.99 | 281.71 | 0.5783 | 702.0 | 528.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
