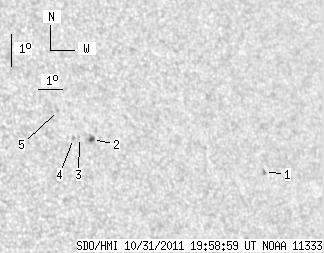

SDO HMI 2011-10-31 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.13 | 7.37 | 0.71 | 4.79 | 15.66 | 243.32 | 39.41 | 289.22 | 0.6488 | 387.6 | 165.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-31 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.39 | 14.62 | 248.36 | 44.45 | 286.29 | 0.7083 | -675.0 | -624.1 | |
| 1.13 | 3.12 | 0.71 | 1.98 | 15.93 | 241.60 | 37.70 | 290.05 | 0.6283 | 789.5 | 616.4 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 16.02 | 241.11 | 37.21 | 290.35 | 0.6223 | 623.0 | 545.0 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 16.00 | 240.88 | 36.97 | 290.41 | 0.6192 | 692.0 | 540.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 16.87 | 240.49 | 36.59 | 291.93 | 0.6172 | 625.0 | 538.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
