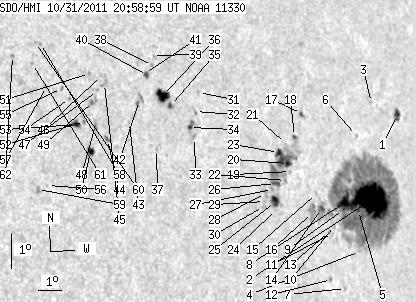

SDO HMI 2011-10-31 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.50 | 652.67 | 95.96 | 520.11 | 6.34 | 255.09 | 51.74 | 274.64 | 0.7840 | -437.7 | -232.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-31 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.11 | 6.40 | 4.42 | 5.54 | 8.28 | 258.68 | 55.33 | 277.00 | 0.8221 | -468.8 | -318.9 | |
| 64.48 | 449.00 | 53.50 | 370.55 | 5.85 | 256.90 | 53.55 | 273.98 | 0.8044 | -940.2 | -282.5 | |
| 0.00 | 1.38 | 0.00 | 1.16 | 8.72 | 257.41 | 54.06 | 277.55 | 0.8095 | -490.0 | -339.4 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 4.34 | 256.12 | 52.77 | 272.07 | 0.7967 | -245.0 | -229.9 | |
| 0.87 | -2.00 | 0.71 | -2.00 | 5.56 | 256.21 | 52.86 | 273.60 | 0.7973 | -901.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.92 | 7.79 | 256.46 | 53.11 | 276.41 | 0.7996 | 459.0 | 381.8 | |
| 0.00 | 1.04 | 0.00 | 0.83 | 3.28 | 255.34 | 51.99 | 270.68 | 0.7890 | 478.0 | 400.0 | |
| 5.80 | -2.00 | 4.67 | -2.00 | 5.84 | 255.56 | 52.21 | 273.94 | 0.7903 | -1001.0 | 999999 | |
| 1.13 | -2.00 | 0.90 | -2.00 | 5.63 | 255.48 | 52.13 | 273.68 | 0.7895 | -934.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.96 | 5.19 | 254.99 | 51.64 | 273.09 | 0.7843 | -690.0 | -572.1 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 4.95 | 254.86 | 51.52 | 272.79 | 0.7831 | -510.0 | -580.0 | |
| 0.00 | 1.47 | 0.00 | 1.16 | 3.59 | 254.69 | 51.34 | 271.03 | 0.7817 | 556.0 | 437.8 | |
| 0.00 | 0.95 | 0.00 | 0.75 | 5.02 | 254.73 | 51.38 | 272.87 | 0.7815 | -643.0 | -566.3 | |
| 3.63 | 18.78 | 2.85 | 14.77 | 5.73 | 254.43 | 51.08 | 273.77 | 0.7781 | -843.5 | -612.2 | |
| 0.00 | 1.21 | 0.00 | 0.95 | 6.19 | 254.25 | 50.90 | 274.36 | 0.7760 | -536.0 | -434.9 | |
| 0.00 | 10.65 | 0.00 | 8.28 | 5.63 | 253.99 | 50.64 | 273.64 | 0.7733 | -758.0 | -656.0 | |
| 1.38 | 2.68 | 1.08 | 2.08 | 8.60 | 253.92 | 50.57 | 277.49 | 0.7726 | 612.6 | 639.9 | |
| 1.38 | 5.63 | 1.07 | 4.33 | 7.94 | 253.47 | 50.12 | 276.64 | 0.7675 | 673.2 | 389.1 | |
| 0.00 | 1.21 | 0.00 | 0.93 | 6.91 | 253.12 | 49.77 | 275.29 | 0.7635 | -697.0 | -567.7 | |
| 2.34 | 50.02 | 1.78 | 37.91 | 7.15 | 253.06 | 49.71 | 275.61 | 0.7628 | -557.9 | -131.8 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 7.76 | 253.02 | 49.67 | 276.40 | 0.7624 | 632.0 | 547.4 | |
| 0.00 | 1.38 | 0.00 | 1.05 | 6.66 | 252.85 | 49.50 | 274.96 | 0.7605 | -701.0 | -616.1 | |
| 3.03 | -20.00 | 2.29 | -20.00 | 7.51 | 252.65 | 49.30 | 276.08 | 0.7582 | 658.9 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.11 | 5.82 | 252.33 | 48.98 | 273.85 | 0.7546 | -534.0 | -506.5 | |
| 5.71 | 8.83 | 4.29 | 6.64 | 6.06 | 252.31 | 48.97 | 274.16 | 0.7544 | -848.4 | -699.0 | |
| 3.20 | -20.00 | 2.41 | -20.00 | 6.60 | 252.38 | 49.03 | 274.88 | 0.7551 | -706.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.30 | 6.43 | 252.22 | 48.87 | 274.65 | 0.7533 | -772.0 | -720.5 | |
| 0.00 | 1.99 | 0.00 | 1.48 | 6.33 | 251.89 | 48.54 | 274.51 | 0.7495 | -657.0 | -619.0 | |
| 0.00 | 1.13 | 0.00 | 0.84 | 6.09 | 251.82 | 48.47 | 274.20 | 0.7487 | -750.0 | -595.6 | |
| 0.00 | 1.99 | 0.00 | 1.48 | 5.95 | 251.75 | 48.40 | 274.00 | 0.7480 | -328.0 | -400.8 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 9.49 | 249.39 | 46.04 | 278.91 | 0.7210 | 582.0 | 517.7 | |
| 0.00 | 1.64 | 0.00 | 1.17 | 8.93 | 249.16 | 45.81 | 278.15 | 0.7179 | 604.0 | 481.3 | |
| 0.00 | 1.30 | 0.00 | 0.92 | 8.16 | 249.00 | 45.65 | 277.08 | 0.7156 | 679.0 | 643.6 | |
| 1.04 | 5.89 | 0.73 | 4.15 | 8.47 | 248.83 | 45.48 | 277.52 | 0.7137 | 738.6 | 659.1 | |
| 1.82 | 2.77 | 1.27 | 1.93 | 9.17 | 248.13 | 44.78 | 278.55 | 0.7055 | -533.0 | -469.5 | |
| 10.90 | 13.07 | 7.56 | 9.06 | 9.49 | 247.84 | 44.49 | 279.02 | 0.7022 | -805.1 | -562.5 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 7.89 | 247.35 | 44.00 | 276.77 | 0.6952 | 346.0 | 371.6 | |
| 0.00 | 1.30 | 0.00 | 0.90 | 10.40 | 247.57 | 44.22 | 280.35 | 0.6997 | 751.0 | 574.9 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 10.70 | 247.62 | 44.28 | 280.77 | 0.7006 | 132.0 | 230.2 | |
| 1.47 | 2.86 | 1.01 | 1.96 | 10.11 | 247.31 | 43.96 | 279.97 | 0.6962 | -360.8 | -292.6 | |
| 0.95 | -40.00 | 0.65 | -40.00 | 10.18 | 247.19 | 43.84 | 280.07 | 0.6948 | 256.7 | 999999 | |
| 0.00 | 5.11 | 0.00 | 3.48 | 9.39 | 246.85 | 43.50 | 278.96 | 0.6899 | -563.0 | -693.2 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 8.76 | 246.34 | 42.99 | 278.08 | 0.6831 | -649.0 | -505.0 | |
| 0.00 | 2.94 | 0.00 | 1.96 | 8.30 | 245.38 | 42.03 | 277.47 | 0.6705 | 753.0 | 595.3 | |
| 0.00 | 3.98 | 0.00 | 2.66 | 9.97 | 245.50 | 42.15 | 279.95 | 0.6734 | 335.0 | 348.5 | |
| 0.00 | 1.56 | 0.00 | 1.04 | 10.21 | 245.42 | 42.07 | 280.32 | 0.6726 | 522.0 | 431.3 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 9.77 | 245.18 | 41.83 | 279.69 | 0.6691 | 432.0 | 327.5 | |
| 0.00 | 2.94 | 0.00 | 1.95 | 8.77 | 244.96 | 41.61 | 278.20 | 0.6654 | 543.0 | 354.2 | |
| 0.00 | 4.59 | 0.00 | 3.04 | 9.46 | 244.97 | 41.62 | 279.24 | 0.6661 | 667.0 | 422.8 | |
| 3.63 | 4.85 | 2.39 | 3.19 | 7.97 | 244.65 | 41.30 | 277.03 | 0.6609 | 762.0 | 545.9 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 10.30 | 244.94 | 41.59 | 280.50 | 0.6666 | 620.0 | 512.9 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 8.88 | 244.53 | 41.18 | 278.41 | 0.6599 | 600.0 | 487.4 | |
| 3.63 | 5.02 | 2.38 | 3.28 | 8.81 | 244.20 | 40.85 | 278.33 | 0.6556 | 842.5 | 624.1 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 9.59 | 244.03 | 40.68 | 279.55 | 0.6541 | 662.0 | 539.8 | |
| 0.00 | 1.73 | 0.00 | 1.13 | 9.91 | 243.76 | 40.41 | 280.06 | 0.6508 | 746.0 | 586.3 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 7.05 | 242.85 | 39.50 | 275.69 | 0.6367 | 564.0 | 444.0 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 10.00 | 243.17 | 39.83 | 280.28 | 0.6433 | 797.0 | 610.6 | |
| 0.00 | 1.30 | 0.00 | 0.84 | 11.29 | 243.14 | 39.79 | 282.29 | 0.6446 | 637.0 | 511.6 | |
| 0.00 | 2.42 | 0.00 | 1.54 | 6.95 | 242.45 | 39.10 | 275.55 | 0.6313 | 621.0 | 593.0 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 11.33 | 242.95 | 39.60 | 282.38 | 0.6422 | 381.0 | 366.5 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 10.71 | 242.73 | 39.38 | 281.45 | 0.6384 | 777.0 | 680.5 | |
| 0.00 | 1.47 | 0.00 | 0.94 | 10.98 | 241.99 | 38.64 | 282.01 | 0.6290 | 794.0 | 704.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
