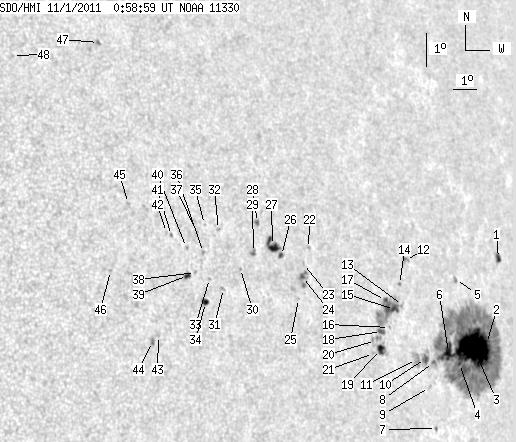

SDO HMI 2011-11-01 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.88 | 581.58 | 90.21 | 490.09 | 6.33 | 255.31 | 54.17 | 274.68 | 0.8096 | -441.5 | -228.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-01 00:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.38 | 4.68 | 3.10 | 4.30 | 8.42 | 258.82 | 57.68 | 277.17 | 0.8447 | -372.8 | -266.9 | |
| 0.52 | 422.08 | 0.46 | 368.18 | 5.95 | 257.67 | 56.53 | 274.20 | 0.8340 | 125.2 | -277.7 | |
| 60.69 | -2.00 | 53.20 | -2.00 | 5.87 | 256.95 | 55.81 | 274.09 | 0.8271 | -860.5 | 999999 | |
| 0.95 | -2.00 | 0.82 | -2.00 | 5.44 | 256.15 | 55.01 | 273.54 | 0.8193 | -793.0 | 999999 | |
| 0.00 | 2.68 | 0.00 | 2.32 | 7.95 | 256.36 | 55.22 | 276.60 | 0.8211 | 579.0 | 371.2 | |
| 6.06 | -2.00 | 5.14 | -2.00 | 5.81 | 255.63 | 54.48 | 273.97 | 0.8139 | -901.1 | 999999 | |
| 1.13 | 1.56 | 0.94 | 1.30 | 3.59 | 254.76 | 53.62 | 271.19 | 0.8059 | 250.5 | 290.4 | |
| 1.65 | -2.00 | 1.37 | -2.00 | 5.56 | 254.82 | 53.68 | 273.64 | 0.8058 | -771.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.43 | 4.83 | 254.53 | 53.39 | 272.72 | 0.8030 | -592.0 | -469.4 | |
| 4.33 | 9.87 | 3.57 | 8.14 | 5.70 | 254.44 | 53.29 | 273.81 | 0.8018 | -750.2 | -577.0 | |
| 0.00 | 9.78 | 0.00 | 7.98 | 5.70 | 253.99 | 52.84 | 273.79 | 0.7970 | -776.0 | -591.0 | |
| 0.00 | 3.55 | 0.00 | 2.89 | 8.67 | 253.93 | 52.79 | 277.53 | 0.7964 | 733.0 | 488.6 | |
| 0.00 | 1.56 | 0.00 | 1.26 | 7.34 | 253.54 | 52.39 | 275.86 | 0.7921 | -370.0 | -257.9 | |
| 0.00 | 1.13 | 0.00 | 0.91 | 7.97 | 253.50 | 52.36 | 276.66 | 0.7918 | 671.0 | 610.9 | |
| 1.90 | 36.45 | 1.53 | 28.95 | 7.25 | 253.13 | 51.99 | 275.74 | 0.7878 | -428.0 | -84.2 | |
| 0.00 | 1.04 | 0.00 | 0.83 | 6.73 | 252.80 | 51.66 | 275.08 | 0.7843 | -507.0 | -494.0 | |
| 1.21 | -15.00 | 0.96 | -15.00 | 7.54 | 252.74 | 51.59 | 276.11 | 0.7836 | 632.6 | 999999 | |
| 2.94 | 3.81 | 2.32 | 3.00 | 6.63 | 252.40 | 51.26 | 274.95 | 0.7800 | -667.4 | -594.2 | |
| 4.94 | 8.74 | 3.88 | 6.88 | 6.10 | 252.28 | 51.14 | 274.26 | 0.7787 | -784.4 | -621.8 | |
| 0.00 | 6.06 | 0.00 | 4.74 | 6.38 | 252.08 | 50.94 | 274.62 | 0.7764 | -540.0 | -679.7 | |
| 0.00 | 1.30 | 0.00 | 1.01 | 6.00 | 251.93 | 50.79 | 274.13 | 0.7749 | -666.0 | -522.4 | |
| 0.00 | 1.21 | 0.00 | 0.90 | 9.29 | 249.43 | 48.29 | 278.51 | 0.7472 | 536.0 | 493.7 | |
| 0.00 | 1.13 | 0.00 | 0.83 | 8.86 | 249.12 | 47.98 | 277.94 | 0.7435 | 468.0 | 453.2 | |
| 1.47 | 7.45 | 1.08 | 5.48 | 8.48 | 249.01 | 47.87 | 277.43 | 0.7421 | 786.1 | 673.0 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 7.83 | 248.73 | 47.59 | 276.57 | 0.7386 | 683.0 | 582.3 | |
| 2.16 | 18.96 | 1.57 | 13.68 | 9.15 | 248.19 | 47.05 | 278.39 | 0.7327 | -448.4 | -454.3 | |
| 9.35 | -26.00 | 6.74 | -26.00 | 9.47 | 247.85 | 46.70 | 278.85 | 0.7289 | -741.1 | 999999 | |
| 0.00 | 3.12 | 0.00 | 2.23 | 10.19 | 247.32 | 46.17 | 279.89 | 0.7231 | -76.0 | -75.1 | |
| 0.00 | 3.12 | 0.00 | 2.21 | 9.31 | 246.98 | 45.84 | 278.68 | 0.7185 | -852.0 | -717.6 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 8.86 | 246.35 | 45.21 | 278.10 | 0.7106 | -548.0 | -532.0 | |
| 0.00 | 1.73 | 0.00 | 1.20 | 8.31 | 245.54 | 44.40 | 277.36 | 0.7004 | 706.0 | 609.0 | |
| 0.00 | 1.47 | 0.00 | 1.02 | 10.07 | 245.61 | 44.47 | 279.88 | 0.7024 | 618.0 | 501.0 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 8.64 | 245.00 | 43.86 | 277.86 | 0.6939 | 574.0 | 418.5 | |
| 2.86 | 3.81 | 1.95 | 2.60 | 7.93 | 244.74 | 43.59 | 276.86 | 0.6902 | 664.1 | 604.9 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 10.25 | 245.05 | 43.91 | 280.19 | 0.6957 | 506.0 | 459.5 | |
| 0.00 | 1.39 | 0.00 | 0.95 | 9.42 | 244.87 | 43.73 | 279.01 | 0.6928 | 578.0 | 462.1 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 10.03 | 244.72 | 43.58 | 279.90 | 0.6914 | 405.0 | 339.2 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 8.84 | 244.45 | 43.30 | 278.21 | 0.6871 | 601.0 | 466.7 | |
| 2.34 | 3.20 | 1.58 | 2.17 | 8.77 | 244.11 | 42.96 | 278.13 | 0.6827 | 709.7 | 731.0 | |
| 0.00 | 1.39 | 0.00 | 0.94 | 9.61 | 244.19 | 43.05 | 279.34 | 0.6844 | 575.0 | 491.4 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 10.00 | 243.63 | 42.49 | 279.97 | 0.6778 | 492.0 | 457.6 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 10.10 | 243.45 | 42.30 | 280.14 | 0.6755 | 559.0 | 525.6 | |
| 0.00 | 1.39 | 0.00 | 0.91 | 7.05 | 242.71 | 41.56 | 275.64 | 0.6640 | 583.0 | 486.1 | |
| 0.00 | 2.94 | 0.00 | 1.94 | 6.88 | 242.45 | 41.30 | 275.39 | 0.6605 | 784.0 | 648.9 | |
| 0.00 | 1.47 | 0.00 | 0.97 | 11.04 | 242.06 | 40.92 | 281.74 | 0.6589 | 806.0 | 624.5 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 9.08 | 241.04 | 39.90 | 278.86 | 0.6434 | 728.0 | 609.5 | |
| 0.00 | 1.73 | 0.00 | 1.15 | 15.93 | 241.86 | 40.71 | 289.10 | 0.6661 | 732.0 | 593.7 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 15.69 | 238.37 | 37.23 | 289.87 | 0.6216 | 665.0 | 521.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
