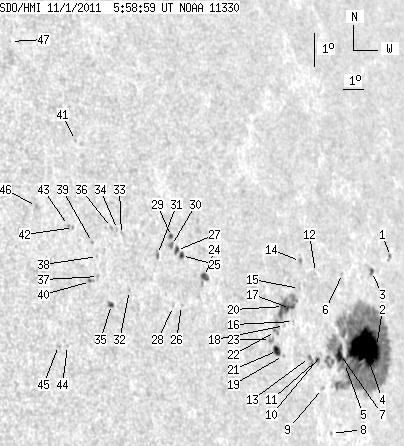

SDO HMI 2011-11-01 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.89 | 494.77 | 96.74 | 451.34 | 6.25 | 255.73 | 57.33 | 274.66 | 0.8406 | -495.3 | -202.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-01 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.39 | 2.86 | 1.39 | 2.87 | 8.47 | 259.19 | 60.79 | 277.25 | 0.8723 | -327.1 | -426.9 | |
| 3.12 | 380.01 | 3.01 | 357.63 | 5.86 | 257.77 | 59.37 | 274.21 | 0.8603 | 235.5 | -231.7 | |
| 2.25 | 3.29 | 2.18 | 3.19 | 8.10 | 257.94 | 59.54 | 276.82 | 0.8615 | -429.7 | -463.7 | |
| 59.67 | -2.00 | 56.42 | -2.00 | 5.88 | 257.07 | 58.67 | 274.21 | 0.8540 | -1004.1 | 999999 | |
| 0.61 | -2.00 | 0.55 | -2.00 | 5.48 | 255.86 | 57.46 | 273.69 | 0.8431 | -703.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.12 | 8.15 | 256.26 | 57.86 | 276.87 | 0.8463 | 495.0 | 399.2 | |
| 9.18 | -2.00 | 8.35 | -2.00 | 5.76 | 255.68 | 57.28 | 274.02 | 0.8413 | -848.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.08 | 3.45 | 254.90 | 56.50 | 271.22 | 0.8347 | 353.0 | 281.3 | |
| 0.00 | 1.82 | 0.00 | 1.61 | 4.81 | 254.56 | 56.16 | 272.85 | 0.8309 | -667.0 | -549.6 | |
| 0.00 | 1.21 | 0.00 | 1.07 | 5.82 | 254.65 | 56.25 | 274.07 | 0.8314 | -532.0 | -498.6 | |
| 1.91 | 2.51 | 1.68 | 2.21 | 5.69 | 254.41 | 56.01 | 273.90 | 0.8292 | -747.0 | -686.7 | |
| 0.00 | 0.95 | 0.00 | 0.85 | 8.27 | 254.78 | 56.38 | 277.02 | 0.8324 | 500.0 | 330.4 | |
| 0.52 | 3.46 | 0.45 | 3.03 | 5.78 | 254.00 | 55.59 | 273.99 | 0.8251 | -678.0 | -705.0 | |
| 0.00 | 2.60 | 0.00 | 2.27 | 8.65 | 254.05 | 55.65 | 277.48 | 0.8254 | 680.0 | 453.2 | |
| 0.00 | 1.04 | 0.00 | 0.90 | 7.85 | 253.83 | 55.42 | 276.52 | 0.8232 | 298.0 | 233.3 | |
| 0.00 | 0.87 | 0.00 | 0.74 | 6.90 | 253.33 | 54.93 | 275.34 | 0.8183 | -556.0 | -521.7 | |
| 3.55 | 32.74 | 3.03 | 27.83 | 7.29 | 253.24 | 54.84 | 275.83 | 0.8174 | -466.3 | -94.8 | |
| 0.00 | 1.13 | 0.00 | 0.95 | 6.81 | 252.85 | 54.44 | 275.23 | 0.8134 | -479.0 | -403.1 | |
| 0.00 | 0.95 | 0.00 | 0.80 | 5.92 | 252.65 | 54.25 | 274.13 | 0.8116 | -460.0 | -407.7 | |
| 6.93 | -17.00 | 5.87 | -17.00 | 7.37 | 252.89 | 54.49 | 275.93 | 0.8138 | 255.7 | 999999 | |
| 4.85 | 6.32 | 4.06 | 5.29 | 6.09 | 252.37 | 53.97 | 274.33 | 0.8087 | -770.1 | -672.1 | |
| 0.00 | 3.12 | 0.00 | 2.61 | 6.66 | 252.36 | 53.95 | 275.04 | 0.8084 | -718.0 | -531.1 | |
| 0.00 | 3.03 | 0.00 | 2.52 | 6.43 | 252.07 | 53.66 | 274.76 | 0.8055 | -736.0 | -660.6 | |
| 4.16 | 7.53 | 3.24 | 5.87 | 8.50 | 249.16 | 50.76 | 277.39 | 0.7747 | 593.1 | 574.9 | |
| 1.73 | 2.68 | 1.33 | 2.05 | 9.18 | 248.20 | 49.80 | 278.32 | 0.7643 | -400.7 | -389.3 | |
| 0.00 | 1.13 | 0.00 | 0.86 | 7.70 | 247.94 | 49.54 | 276.38 | 0.7610 | 361.0 | 358.5 | |
| 2.42 | 3.64 | 1.85 | 2.77 | 9.34 | 248.00 | 49.60 | 278.54 | 0.7621 | -491.7 | -376.1 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 7.69 | 247.57 | 49.17 | 276.37 | 0.7568 | 508.0 | 403.4 | |
| 1.39 | 1.65 | 1.05 | 1.25 | 9.77 | 247.85 | 49.45 | 279.12 | 0.7607 | -718.9 | -701.7 | |
| 0.00 | 2.94 | 0.00 | 2.23 | 9.51 | 247.80 | 49.39 | 278.77 | 0.7600 | -749.0 | -665.1 | |
| 0.00 | 2.94 | 0.00 | 2.20 | 9.28 | 247.10 | 48.70 | 278.50 | 0.7520 | -742.0 | -547.6 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 8.28 | 245.67 | 47.26 | 277.22 | 0.7350 | 545.0 | 477.5 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 9.96 | 245.60 | 47.20 | 279.52 | 0.7351 | 409.0 | 403.2 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 10.12 | 245.46 | 47.05 | 279.75 | 0.7335 | 536.0 | 449.0 | |
| 2.17 | 3.29 | 1.55 | 2.36 | 7.90 | 244.82 | 46.41 | 276.74 | 0.7248 | 745.5 | 571.2 | |
| 0.00 | 1.13 | 0.00 | 0.81 | 10.19 | 245.20 | 46.80 | 279.87 | 0.7306 | 576.0 | 451.1 | |
| 0.00 | 1.56 | 0.00 | 1.11 | 8.77 | 244.38 | 45.98 | 277.96 | 0.7199 | 478.0 | 308.8 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 9.36 | 244.44 | 46.03 | 278.78 | 0.7209 | 470.0 | 352.6 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 9.79 | 244.29 | 45.89 | 279.39 | 0.7195 | 617.0 | 527.2 | |
| 1.04 | 2.17 | 0.73 | 1.53 | 8.64 | 244.01 | 45.61 | 277.80 | 0.7154 | 755.6 | 642.2 | |
| 0.00 | 0.61 | 0.00 | 0.43 | 12.87 | 244.19 | 45.79 | 283.68 | 0.7215 | 480.0 | 394.9 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 10.28 | 243.56 | 45.16 | 280.14 | 0.7111 | 425.0 | 393.1 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 10.35 | 243.36 | 44.95 | 280.26 | 0.7087 | 697.0 | 578.0 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 6.79 | 242.78 | 44.38 | 275.22 | 0.6997 | 561.0 | 476.2 | |
| 0.00 | 1.56 | 0.00 | 1.07 | 6.81 | 242.41 | 44.00 | 275.26 | 0.6951 | 772.0 | 502.9 | |
| 0.00 | 2.51 | 0.00 | 1.72 | 10.99 | 242.11 | 43.71 | 281.31 | 0.6942 | 762.0 | 557.7 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 15.99 | 242.16 | 43.76 | 288.43 | 0.7031 | 494.0 | 397.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
