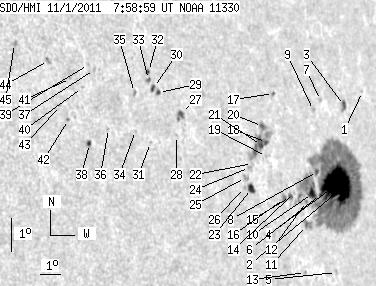

SDO HMI 2011-11-01 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.51 | 470.84 | 89.69 | 445.30 | 6.22 | 255.94 | 58.63 | 274.66 | 0.8528 | -530.5 | -182.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-01 07:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.99 | 8.53 | 259.32 | 62.01 | 277.34 | 0.8824 | -404.0 | -308.1 | |
| 4.07 | 361.01 | 4.06 | 351.57 | 5.90 | 257.82 | 60.51 | 274.30 | 0.8703 | 279.3 | -216.1 | |
| 3.29 | 4.94 | 3.31 | 4.95 | 8.19 | 258.08 | 60.77 | 276.94 | 0.8722 | -411.2 | -510.2 | |
| 53.25 | -2.00 | 52.02 | -2.00 | 5.89 | 257.09 | 59.78 | 274.26 | 0.8640 | -991.0 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.51 | 3.28 | 256.74 | 59.43 | 271.22 | 0.8618 | 370.0 | 365.3 | |
| 1.04 | -2.00 | 0.99 | -2.00 | 5.66 | 256.11 | 58.80 | 273.96 | 0.8553 | -694.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.09 | 8.44 | 256.69 | 59.38 | 277.22 | 0.8601 | 274.0 | 193.9 | |
| 1.73 | -2.00 | 1.64 | -2.00 | 6.35 | 256.05 | 58.74 | 274.77 | 0.8547 | -756.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 8.17 | 256.21 | 58.90 | 276.90 | 0.8558 | 332.0 | 329.8 | |
| 5.37 | -2.00 | 5.03 | -2.00 | 5.71 | 255.66 | 58.35 | 274.01 | 0.8512 | -844.3 | 999999 | |
| 0.95 | 6.84 | 0.88 | 6.36 | 4.79 | 255.18 | 57.87 | 272.90 | 0.8471 | -172.3 | -453.3 | |
| 0.87 | 1.39 | 0.80 | 1.29 | 5.50 | 255.28 | 57.97 | 273.74 | 0.8478 | -604.9 | -510.7 | |
| 0.00 | 1.04 | 0.00 | 0.96 | 3.40 | 254.96 | 57.65 | 271.24 | 0.8456 | 488.0 | 408.4 | |
| 0.00 | 0.52 | 0.00 | 0.47 | 5.81 | 254.65 | 57.34 | 274.09 | 0.8419 | -515.0 | -485.2 | |
| 2.08 | 2.77 | 1.88 | 2.51 | 5.70 | 254.41 | 57.10 | 273.96 | 0.8396 | -702.0 | -605.2 | |
| 2.42 | 3.72 | 2.18 | 3.34 | 5.67 | 254.07 | 56.77 | 273.90 | 0.8364 | -681.5 | -544.8 | |
| 1.13 | 1.56 | 1.01 | 1.40 | 8.81 | 254.08 | 56.77 | 277.68 | 0.8362 | 497.2 | 488.6 | |
| 1.13 | 34.90 | 0.99 | 30.54 | 7.39 | 253.39 | 56.08 | 275.96 | 0.8296 | -549.8 | 17.2 | |
| 0.00 | 1.04 | 0.00 | 0.91 | 6.97 | 253.31 | 56.00 | 275.46 | 0.8289 | -699.0 | -607.2 | |
| 2.42 | -18.00 | 2.13 | -18.00 | 7.87 | 253.27 | 55.96 | 276.55 | 0.8284 | 445.2 | 999999 | |
| 1.47 | -18.00 | 1.29 | -18.00 | 7.31 | 253.11 | 55.80 | 275.87 | 0.8268 | -444.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.97 | 6.81 | 252.54 | 55.23 | 275.25 | 0.8213 | -548.0 | -478.2 | |
| 4.76 | 5.89 | 4.10 | 5.06 | 6.07 | 252.36 | 55.05 | 274.35 | 0.8196 | -756.7 | -603.5 | |
| 0.00 | 1.82 | 0.00 | 1.56 | 6.70 | 252.36 | 55.05 | 275.12 | 0.8195 | -674.0 | -540.2 | |
| 0.00 | 3.46 | 0.00 | 2.96 | 6.42 | 252.10 | 54.79 | 274.77 | 0.8170 | -751.0 | -654.1 | |
| 0.00 | 0.87 | 0.00 | 0.74 | 6.13 | 252.00 | 54.69 | 274.40 | 0.8160 | -564.0 | -484.9 | |
| 2.77 | 5.54 | 2.21 | 4.42 | 8.51 | 249.23 | 51.92 | 277.39 | 0.7873 | 588.1 | 618.1 | |
| 0.00 | 1.13 | 0.00 | 0.89 | 7.87 | 248.87 | 51.56 | 276.58 | 0.7833 | 617.0 | 574.5 | |
| 1.65 | 2.42 | 1.29 | 1.90 | 9.20 | 248.25 | 50.94 | 278.30 | 0.7769 | -405.8 | -352.4 | |
| 1.65 | 2.42 | 1.28 | 1.89 | 9.36 | 248.04 | 50.73 | 278.52 | 0.7747 | -479.5 | -327.7 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 7.74 | 247.60 | 50.29 | 276.43 | 0.7694 | 461.0 | 433.4 | |
| 1.47 | 1.65 | 1.14 | 1.28 | 9.85 | 247.90 | 50.59 | 279.16 | 0.7734 | -634.5 | -533.0 | |
| 0.00 | 1.47 | 0.00 | 1.14 | 9.61 | 247.85 | 50.55 | 278.86 | 0.7728 | -688.0 | -617.3 | |
| 0.00 | 0.87 | 0.00 | 0.66 | 8.13 | 246.96 | 49.65 | 276.96 | 0.7624 | 171.0 | 245.9 | |
| 0.00 | 1.82 | 0.00 | 1.39 | 9.26 | 247.12 | 49.81 | 278.44 | 0.7645 | -542.0 | -537.0 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 8.26 | 245.74 | 48.43 | 277.17 | 0.7486 | 617.0 | 485.8 | |
| 0.00 | 1.39 | 0.00 | 1.03 | 10.05 | 245.43 | 48.12 | 279.59 | 0.7458 | 618.0 | 472.6 | |
| 1.99 | 2.51 | 1.46 | 1.84 | 7.87 | 244.82 | 47.51 | 276.66 | 0.7378 | 655.4 | 442.8 | |
| 0.00 | 1.21 | 0.00 | 0.89 | 10.22 | 245.19 | 47.88 | 279.83 | 0.7432 | 458.0 | 343.4 | |
| 0.00 | 1.04 | 0.00 | 0.76 | 9.55 | 244.79 | 47.48 | 278.95 | 0.7381 | 502.0 | 413.8 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 9.84 | 244.31 | 47.00 | 279.39 | 0.7327 | 598.0 | 408.2 | |
| 0.00 | 1.13 | 0.00 | 0.81 | 8.63 | 244.01 | 46.70 | 277.74 | 0.7285 | 809.0 | 690.5 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 9.07 | 243.73 | 46.42 | 278.36 | 0.7254 | 625.0 | 490.1 | |
| 0.00 | 2.60 | 0.00 | 1.86 | 10.43 | 243.45 | 46.14 | 280.27 | 0.7230 | 697.0 | 586.7 | |
| 0.00 | 2.77 | 0.00 | 1.94 | 11.02 | 242.09 | 44.78 | 281.23 | 0.7072 | 679.0 | 522.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
