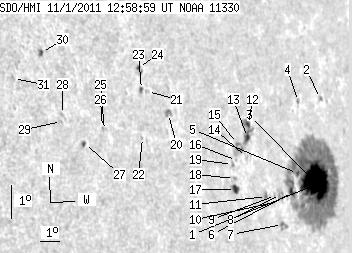

SDO HMI 2011-11-01 12:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.73 | 401.74 | 78.82 | 416.13 | 6.18 | 256.23 | 61.66 | 274.69 | 0.8791 | -565.8 | -167.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-01 12:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.62 | 320.95 | 6.15 | 342.06 | 5.91 | 257.89 | 63.31 | 274.42 | 0.8933 | 396.7 | -175.0 | |
| 0.00 | 1.99 | 0.00 | 2.19 | 8.35 | 258.16 | 63.59 | 277.16 | 0.8950 | -393.0 | -321.5 | |
| 47.77 | -1.00 | 50.98 | -1.00 | 5.93 | 257.16 | 62.59 | 274.41 | 0.8875 | -938.9 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.90 | 8.36 | 256.70 | 62.13 | 277.15 | 0.8834 | 339.0 | 286.9 | |
| 1.12 | -1.00 | 1.16 | -1.00 | 6.24 | 256.13 | 61.55 | 274.73 | 0.8790 | -743.0 | 999999 | |
| 3.46 | -1.00 | 3.52 | -1.00 | 5.70 | 255.71 | 61.13 | 274.10 | 0.8756 | -792.0 | 999999 | |
| 0.69 | 4.41 | 0.69 | 4.40 | 4.79 | 254.94 | 60.37 | 273.03 | 0.8694 | -530.6 | -362.6 | |
| 0.00 | 6.92 | 0.00 | 6.89 | 5.68 | 254.96 | 60.39 | 274.06 | 0.8693 | -703.0 | -557.2 | |
| 0.00 | 1.73 | 0.00 | 1.71 | 5.68 | 254.66 | 60.08 | 274.04 | 0.8667 | -544.0 | -494.8 | |
| 0.00 | 1.30 | 0.00 | 1.27 | 5.48 | 254.50 | 59.93 | 273.80 | 0.8654 | -516.0 | -523.6 | |
| 1.21 | 2.68 | 1.18 | 2.60 | 5.68 | 254.12 | 59.55 | 274.02 | 0.8620 | -597.6 | -534.8 | |
| 2.16 | 27.08 | 2.06 | 25.55 | 7.88 | 253.50 | 58.92 | 276.57 | 0.8561 | 489.1 | -32.0 | |
| 4.15 | -12.00 | 3.94 | -12.00 | 7.50 | 253.35 | 58.78 | 276.13 | 0.8548 | -455.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 6.91 | 253.17 | 58.60 | 275.44 | 0.8533 | -583.0 | -486.7 | |
| 1.30 | -12.00 | 1.21 | -12.00 | 7.36 | 252.75 | 58.17 | 275.96 | 0.8493 | 271.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.04 | 6.86 | 252.59 | 58.01 | 275.36 | 0.8479 | -491.0 | -442.4 | |
| 4.41 | 5.02 | 4.08 | 4.64 | 6.00 | 252.38 | 57.80 | 274.35 | 0.8461 | -757.7 | -593.1 | |
| 0.00 | 1.38 | 0.00 | 1.28 | 6.33 | 252.38 | 57.80 | 274.74 | 0.8461 | -679.0 | -598.3 | |
| 0.00 | 1.47 | 0.00 | 1.36 | 6.75 | 252.34 | 57.77 | 275.24 | 0.8457 | -540.0 | -520.1 | |
| 0.00 | 4.15 | 0.00 | 3.53 | 8.48 | 249.21 | 54.63 | 277.31 | 0.8154 | 641.0 | 531.9 | |
| 0.00 | 1.47 | 0.00 | 1.22 | 9.20 | 248.28 | 53.70 | 278.22 | 0.8061 | -542.0 | -322.6 | |
| 0.00 | 0.43 | 0.00 | 0.36 | 7.85 | 247.75 | 53.17 | 276.55 | 0.8004 | 559.0 | 484.4 | |
| 1.30 | 2.34 | 1.07 | 1.93 | 9.27 | 247.99 | 53.41 | 278.32 | 0.8031 | -470.2 | -450.0 | |
| 1.12 | 3.46 | 0.93 | 2.87 | 9.94 | 247.99 | 53.41 | 279.15 | 0.8033 | -616.9 | -471.4 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 8.17 | 245.93 | 51.36 | 276.98 | 0.7812 | 536.0 | 506.0 | |
| 0.00 | 0.95 | 0.00 | 0.75 | 8.26 | 245.85 | 51.28 | 277.10 | 0.7803 | 449.0 | 387.2 | |
| 1.38 | 2.16 | 1.07 | 1.67 | 7.84 | 244.91 | 50.34 | 276.57 | 0.7700 | 619.1 | 440.4 | |
| 0.00 | 1.64 | 0.00 | 1.25 | 8.75 | 244.04 | 49.47 | 277.80 | 0.7605 | 565.0 | 461.7 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 8.55 | 243.96 | 49.39 | 277.53 | 0.7595 | 723.0 | 661.5 | |
| 1.04 | 3.12 | 0.78 | 2.34 | 10.65 | 243.44 | 48.87 | 280.35 | 0.7548 | 702.4 | 576.7 | |
| 0.00 | 1.82 | 0.00 | 1.33 | 9.95 | 242.03 | 47.45 | 279.51 | 0.7381 | 523.0 | 444.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
