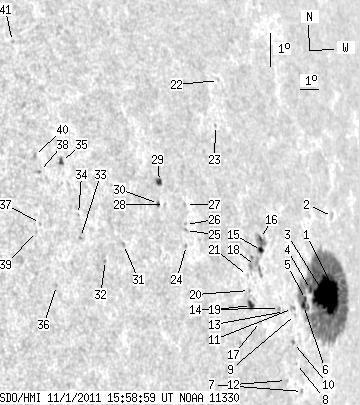

SDO HMI 2011-11-01 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.98 | 376.43 | 80.32 | 411.15 | 6.23 | 256.14 | 63.22 | 274.82 | 0.8915 | -465.3 | -143.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-01 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.01 | 300.76 | 8.13 | 339.99 | 5.97 | 257.91 | 64.98 | 274.56 | 0.9059 | 482.7 | -160.9 | |
| 0.00 | 2.34 | 0.00 | 2.74 | 8.23 | 258.30 | 65.38 | 277.06 | 0.9084 | -416.0 | -273.5 | |
| 46.54 | -1.00 | 52.59 | -1.00 | 5.93 | 257.19 | 64.27 | 274.48 | 0.9006 | -911.0 | 999999 | |
| 2.25 | -1.00 | 2.45 | -1.00 | 6.18 | 256.22 | 63.30 | 274.72 | 0.8931 | -729.9 | 999999 | |
| 0.78 | -1.00 | 0.84 | -1.00 | 5.91 | 255.83 | 62.90 | 274.40 | 0.8901 | -704.8 | 999999 | |
| 2.51 | -1.00 | 2.69 | -1.00 | 5.74 | 255.66 | 62.74 | 274.21 | 0.8888 | -796.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.37 | 3.20 | 255.21 | 62.29 | 271.32 | 0.8861 | 381.0 | 251.5 | |
| 0.00 | 1.04 | 0.00 | 1.09 | 4.05 | 254.93 | 62.01 | 272.27 | 0.8834 | -383.0 | -362.2 | |
| 0.00 | 0.78 | 0.00 | 0.82 | 5.51 | 255.10 | 62.17 | 273.92 | 0.8843 | -499.0 | -455.0 | |
| 0.35 | 1.21 | 0.36 | 1.27 | 4.69 | 254.83 | 61.91 | 272.98 | 0.8824 | -513.2 | -470.1 | |
| 0.00 | 3.03 | 0.00 | 3.17 | 5.70 | 254.94 | 62.01 | 274.13 | 0.8829 | -623.0 | -540.2 | |
| 0.00 | 1.38 | 0.00 | 1.42 | 3.59 | 254.24 | 61.31 | 271.70 | 0.8779 | 377.0 | 291.2 | |
| 0.00 | 1.12 | 0.00 | 1.16 | 5.64 | 254.42 | 61.49 | 274.05 | 0.8787 | -665.0 | -584.5 | |
| 0.00 | 1.38 | 0.00 | 1.41 | 5.75 | 254.12 | 61.20 | 274.17 | 0.8762 | -691.0 | -600.2 | |
| 2.51 | 13.15 | 2.50 | 13.10 | 7.54 | 253.38 | 60.46 | 276.20 | 0.8696 | -424.7 | 142.5 | |
| 1.12 | -15.00 | 1.12 | -15.00 | 7.90 | 253.41 | 60.48 | 276.61 | 0.8698 | 450.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.70 | 5.44 | 252.90 | 59.98 | 273.77 | 0.8658 | -492.0 | -333.7 | |
| 0.00 | 11.94 | 0.00 | 11.73 | 7.12 | 252.92 | 60.00 | 275.71 | 0.8657 | -188.0 | -297.1 | |
| 4.07 | 4.67 | 3.94 | 4.52 | 5.95 | 252.45 | 59.53 | 274.34 | 0.8617 | -679.6 | -595.4 | |
| 0.00 | 1.12 | 0.00 | 1.09 | 6.40 | 252.42 | 59.49 | 274.86 | 0.8613 | -530.0 | -497.5 | |
| 0.00 | 0.87 | 0.00 | 0.84 | 6.85 | 252.39 | 59.46 | 275.39 | 0.8610 | -446.0 | -405.9 | |
| 0.00 | 0.95 | 0.00 | 0.92 | 12.73 | 252.38 | 59.46 | 282.23 | 0.8616 | -310.0 | -268.8 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 11.41 | 251.72 | 58.80 | 280.71 | 0.8554 | -432.0 | -341.8 | |
| 0.00 | 1.38 | 0.00 | 1.22 | 7.96 | 249.15 | 56.23 | 276.67 | 0.8310 | 574.0 | 521.6 | |
| 0.00 | 1.12 | 0.00 | 1.00 | 8.41 | 249.19 | 56.27 | 277.21 | 0.8314 | 624.0 | 542.8 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 8.58 | 249.23 | 56.31 | 277.42 | 0.8318 | 470.0 | 418.9 | |
| 0.00 | 1.38 | 0.00 | 1.23 | 9.18 | 249.37 | 56.45 | 278.13 | 0.8332 | 437.0 | 325.8 | |
| 0.00 | 1.12 | 0.00 | 0.97 | 9.25 | 248.25 | 55.33 | 278.24 | 0.8224 | -321.0 | -241.5 | |
| 3.29 | 4.41 | 2.84 | 3.81 | 9.94 | 248.16 | 55.23 | 279.09 | 0.8216 | -556.9 | -231.4 | |
| 1.21 | 1.73 | 1.04 | 1.49 | 9.29 | 247.95 | 55.02 | 278.31 | 0.8194 | -382.6 | -232.3 | |
| 0.00 | 1.47 | 0.00 | 1.20 | 8.19 | 245.91 | 52.98 | 276.98 | 0.7985 | 647.0 | 531.1 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 7.77 | 244.94 | 52.01 | 276.46 | 0.7882 | 729.0 | 515.9 | |
| 0.00 | 1.12 | 0.00 | 0.88 | 8.52 | 243.86 | 50.93 | 277.45 | 0.7767 | 613.0 | 532.9 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 9.21 | 243.90 | 50.97 | 278.33 | 0.7773 | -538.0 | -387.2 | |
| 2.34 | 2.94 | 1.82 | 2.29 | 10.83 | 243.43 | 50.51 | 280.45 | 0.7731 | 667.1 | 563.7 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 7.16 | 242.50 | 49.57 | 275.70 | 0.7614 | 438.0 | 434.0 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 9.04 | 242.07 | 49.15 | 278.20 | 0.7570 | 539.0 | 416.2 | |
| 0.00 | 1.30 | 0.00 | 0.99 | 10.59 | 242.34 | 49.41 | 280.22 | 0.7608 | 790.0 | 654.1 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 8.81 | 241.84 | 48.92 | 277.91 | 0.7544 | 537.0 | 428.3 | |
| 0.00 | 1.56 | 0.00 | 1.18 | 11.08 | 242.21 | 49.29 | 280.88 | 0.7598 | 688.0 | 584.4 | |
| 0.00 | 1.21 | 0.00 | 0.92 | 14.54 | 242.10 | 49.17 | 285.43 | 0.7622 | 562.0 | 439.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
