SDO HMI 2011-11-01 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.97 | 23.87 | 7.88 | 14.48 | 31.29 | 214.77 | 24.05 | 322.82 | 0.5794 | -582.0 | -429.6 | |
|
previous
or next observation for the same group /

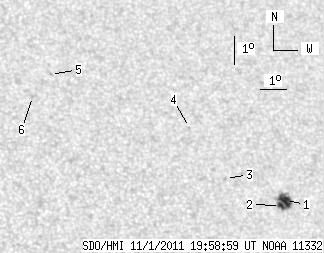

back to the solar disc SDO HMI 2011-11-01 19:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.60 | 19.72 | 5.84 | 11.98 | 30.86 | 215.70 | 24.98 | 321.29 | 0.5819 | -822.1 | -676.7 | |
| 3.37 | -1.00 | 2.04 | -1.00 | 30.70 | 215.46 | 24.75 | 321.33 | 0.5783 | -1059.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 31.65 | 213.63 | 22.91 | 324.45 | 0.5722 | -628.0 | -469.2 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 33.41 | 212.72 | 22.00 | 327.47 | 0.5837 | -626.0 | -516.0 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 35.35 | 207.87 | 17.15 | 335.08 | 0.5731 | 539.0 | 465.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 34.60 | 207.03 | 16.31 | 335.46 | 0.5588 | 763.0 | 592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
