SDO HMI 2011-11-01 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.98 | 23.26 | 6.73 | 14.21 | 31.49 | 214.15 | 24.54 | 322.59 | 0.5867 | -314.3 | -282.9 | |
|
previous
or next observation for the same group /

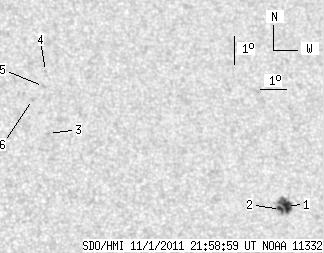

back to the solar disc SDO HMI 2011-11-01 21:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.30 | 19.03 | 5.09 | 11.66 | 30.82 | 215.70 | 26.09 | 320.14 | 0.5915 | -792.8 | -698.7 | |
| 2.68 | -1.00 | 1.64 | -1.00 | 30.69 | 215.43 | 25.82 | 320.25 | 0.5879 | -1076.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 33.47 | 207.34 | 17.73 | 332.58 | 0.5538 | 716.0 | 542.1 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 35.61 | 207.70 | 18.09 | 334.19 | 0.5820 | 445.0 | 422.8 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 35.09 | 207.51 | 17.90 | 333.94 | 0.5745 | 443.0 | 443.2 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 34.65 | 206.99 | 17.38 | 334.16 | 0.5659 | 824.0 | 677.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
