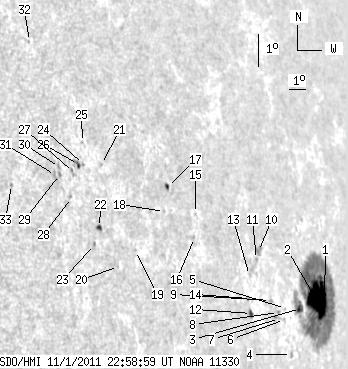

SDO HMI 2011-11-01 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.53 | 300.02 | 70.69 | 379.04 | 6.27 | 256.22 | 67.16 | 275.02 | 0.9197 | -333.4 | -141.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-01 22:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.65 | 249.94 | 11.74 | 330.23 | 5.96 | 257.98 | 68.92 | 274.71 | 0.9328 | 333.8 | -164.6 | |
| 35.64 | -1.00 | 47.05 | -1.00 | 5.98 | 257.32 | 68.26 | 274.70 | 0.9286 | -692.2 | 999999 | |
| 3.98 | -1.00 | 4.98 | -1.00 | 5.80 | 256.00 | 66.94 | 274.45 | 0.9199 | -716.8 | 999999 | |
| 0.00 | 2.16 | 0.00 | 2.61 | 4.49 | 255.05 | 65.99 | 272.98 | 0.9136 | -500.0 | -441.9 | |
| 0.00 | 0.87 | 0.00 | 1.04 | 5.88 | 254.89 | 65.83 | 274.49 | 0.9121 | -396.0 | -373.8 | |
| 0.00 | 1.04 | 0.00 | 1.24 | 5.56 | 254.74 | 65.68 | 274.14 | 0.9111 | -573.0 | -504.6 | |
| 0.00 | 0.95 | 0.00 | 1.12 | 5.61 | 254.39 | 65.33 | 274.18 | 0.9086 | -588.0 | -550.5 | |
| 0.00 | 1.21 | 0.00 | 1.42 | 5.80 | 254.36 | 65.30 | 274.38 | 0.9083 | -585.0 | -565.6 | |
| 0.00 | 1.56 | 0.00 | 1.79 | 6.19 | 253.87 | 64.81 | 274.79 | 0.9046 | -472.0 | -419.2 | |
| 0.00 | 5.02 | 0.00 | 5.68 | 7.69 | 253.41 | 64.35 | 276.45 | 0.9009 | -386.0 | -270.2 | |
| 0.00 | 1.21 | 0.00 | 1.36 | 7.46 | 253.21 | 64.15 | 276.19 | 0.8994 | -289.0 | -269.6 | |
| 2.25 | 3.03 | 2.47 | 3.32 | 5.89 | 252.49 | 63.43 | 274.41 | 0.8942 | -549.2 | -421.1 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 7.02 | 252.61 | 63.55 | 275.68 | 0.8949 | -302.0 | -316.3 | |
| 0.00 | 1.64 | 0.00 | 1.80 | 6.35 | 252.39 | 63.33 | 274.92 | 0.8933 | -605.0 | -498.2 | |
| 0.00 | 0.87 | 0.00 | 0.86 | 9.08 | 249.67 | 60.61 | 277.98 | 0.8708 | 262.0 | 221.5 | |
| 0.00 | 1.12 | 0.00 | 1.12 | 8.38 | 249.41 | 60.35 | 277.17 | 0.8686 | 505.0 | 376.6 | |
| 1.47 | 2.42 | 1.41 | 2.32 | 9.99 | 248.23 | 59.17 | 279.05 | 0.8585 | -363.0 | -370.9 | |
| 0.00 | 0.87 | 0.00 | 0.82 | 9.26 | 247.85 | 58.79 | 278.20 | 0.8549 | -454.0 | -378.6 | |
| 0.00 | 0.78 | 0.00 | 0.70 | 8.21 | 245.94 | 56.88 | 276.97 | 0.8373 | 557.0 | 511.4 | |
| 0.00 | 0.69 | 0.00 | 0.61 | 7.79 | 244.92 | 55.86 | 276.48 | 0.8275 | 473.0 | 445.1 | |
| 0.00 | 0.87 | 0.00 | 0.76 | 10.87 | 244.75 | 55.69 | 280.21 | 0.8264 | 226.0 | 234.0 | |
| 2.16 | 3.11 | 1.86 | 2.68 | 9.01 | 244.17 | 55.11 | 277.97 | 0.8202 | -537.7 | -488.5 | |
| 0.00 | 1.47 | 0.00 | 1.25 | 8.52 | 243.80 | 54.74 | 277.37 | 0.8165 | 488.0 | 351.8 | |
| 0.00 | 0.95 | 0.00 | 0.81 | 10.93 | 243.80 | 54.75 | 280.33 | 0.8172 | 440.0 | 362.9 | |
| 0.00 | 1.12 | 0.00 | 0.96 | 11.58 | 243.94 | 54.88 | 281.12 | 0.8188 | 347.0 | 249.6 | |
| 1.38 | 3.63 | 1.18 | 3.08 | 10.94 | 243.55 | 54.49 | 280.36 | 0.8146 | 550.2 | 598.1 | |
| 0.00 | 2.42 | 0.00 | 2.04 | 10.72 | 243.22 | 54.17 | 280.10 | 0.8113 | 504.0 | 466.3 | |
| 0.00 | 1.12 | 0.00 | 0.94 | 9.99 | 242.93 | 53.88 | 279.21 | 0.8081 | 516.0 | 417.9 | |
| 0.00 | 1.90 | 0.00 | 1.58 | 10.71 | 242.50 | 53.44 | 280.12 | 0.8040 | 542.0 | 517.1 | |
| 0.00 | 2.60 | 0.00 | 2.15 | 10.91 | 242.55 | 53.49 | 280.38 | 0.8046 | 661.0 | 560.9 | |
| 0.00 | 3.11 | 0.00 | 2.57 | 10.69 | 242.29 | 53.23 | 280.11 | 0.8018 | 706.0 | 643.1 | |
| 0.00 | 0.26 | 0.00 | 0.22 | 14.76 | 242.19 | 53.13 | 285.19 | 0.8039 | 463.0 | 402.0 | |
| 0.00 | 1.04 | 0.00 | 0.82 | 10.55 | 240.07 | 51.01 | 280.07 | 0.7784 | 657.0 | 566.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
