SDO HMI 2011-11-01 23:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.75 | 294.26 | 64.73 | 380.59 | 6.27 | 256.26 | 67.75 | 275.04 | 0.9237 | -378.7 | -149.8 | |
|
previous
or next observation for the same group /

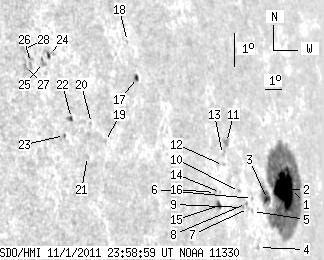

back to the solar disc SDO HMI 2011-11-01 23:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.05 | 245.47 | 11.19 | 332.36 | 5.96 | 257.95 | 69.44 | 274.73 | 0.9360 | 341.0 | -171.3 | |
| 31.15 | -1.00 | 42.14 | -1.00 | 6.00 | 257.36 | 68.86 | 274.75 | 0.9324 | -688.8 | 999999 | |
| 3.37 | -1.00 | 4.31 | -1.00 | 5.79 | 256.01 | 67.50 | 274.47 | 0.9236 | -705.5 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.81 | 4.43 | 255.02 | 66.51 | 272.94 | 0.9173 | -618.0 | -440.4 | |
| 0.00 | 0.95 | 0.00 | 1.16 | 5.52 | 254.78 | 66.28 | 274.12 | 0.9154 | -541.0 | -500.7 | |
| 0.00 | 0.95 | 0.00 | 1.16 | 5.90 | 254.87 | 66.37 | 274.54 | 0.9159 | -410.0 | -347.3 | |
| 0.00 | 1.21 | 0.00 | 1.46 | 5.63 | 254.51 | 66.00 | 274.23 | 0.9134 | -623.0 | -561.8 | |
| 0.00 | 1.38 | 0.00 | 1.66 | 5.79 | 254.40 | 65.89 | 274.39 | 0.9125 | -601.0 | -535.1 | |
| 0.00 | 0.87 | 0.00 | 1.03 | 5.68 | 254.15 | 65.64 | 274.27 | 0.9108 | -608.0 | -583.6 | |
| 0.00 | 1.04 | 0.00 | 1.23 | 6.17 | 253.97 | 65.47 | 274.81 | 0.9094 | -601.0 | -523.5 | |
| 0.00 | 3.98 | 0.00 | 4.60 | 7.68 | 253.43 | 64.93 | 276.45 | 0.9052 | -465.0 | -331.8 | |
| 0.00 | 0.35 | 0.00 | 0.39 | 7.02 | 253.04 | 64.53 | 275.71 | 0.9023 | -364.0 | -304.5 | |
| 0.00 | 1.04 | 0.00 | 1.18 | 7.35 | 253.05 | 64.55 | 276.07 | 0.9024 | -105.0 | -169.9 | |
| 0.00 | 0.87 | 0.00 | 0.97 | 6.24 | 252.64 | 64.13 | 274.83 | 0.8995 | -388.0 | -354.2 | |
| 2.68 | 3.63 | 3.00 | 4.06 | 5.86 | 252.48 | 63.98 | 274.40 | 0.8984 | -495.6 | -311.2 | |
| 0.00 | 1.99 | 0.00 | 2.21 | 6.26 | 252.30 | 63.79 | 274.84 | 0.8969 | -374.0 | -395.7 | |
| 1.73 | 2.94 | 1.69 | 2.87 | 9.98 | 248.29 | 59.78 | 279.03 | 0.8637 | -367.9 | -326.3 | |
| 0.00 | 0.69 | 0.00 | 0.67 | 11.08 | 248.03 | 59.53 | 280.32 | 0.8618 | 196.0 | 154.0 | |
| 0.00 | 1.12 | 0.00 | 1.03 | 8.20 | 245.95 | 57.44 | 276.97 | 0.8426 | 487.0 | 363.4 | |
| 0.00 | 0.69 | 0.00 | 0.62 | 8.78 | 245.30 | 56.80 | 277.67 | 0.8365 | 453.0 | 336.8 | |
| 0.00 | 1.56 | 0.00 | 1.38 | 7.82 | 244.87 | 56.36 | 276.51 | 0.8323 | 127.0 | 193.8 | |
| 1.73 | 2.77 | 1.51 | 2.42 | 9.00 | 244.26 | 55.75 | 277.94 | 0.8266 | -499.2 | -577.9 | |
| 0.00 | 1.47 | 0.00 | 1.27 | 8.52 | 243.78 | 55.27 | 277.37 | 0.8218 | 271.0 | 315.4 | |
| 1.04 | 3.63 | 0.89 | 3.12 | 10.94 | 243.53 | 55.02 | 280.33 | 0.8199 | 477.7 | 580.0 | |
| 0.00 | 2.94 | 0.00 | 2.51 | 10.75 | 243.21 | 54.70 | 280.12 | 0.8167 | 542.0 | 449.3 | |
| 0.00 | 4.59 | 0.00 | 3.86 | 10.79 | 242.54 | 54.03 | 280.20 | 0.8100 | 697.0 | 578.1 | |
| 0.00 | 3.98 | 0.00 | 3.32 | 10.72 | 242.26 | 53.76 | 280.12 | 0.8072 | 777.0 | 584.0 | |
| 0.00 | 2.68 | 0.00 | 2.24 | 11.20 | 242.29 | 53.78 | 280.72 | 0.8077 | 372.0 | 371.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
