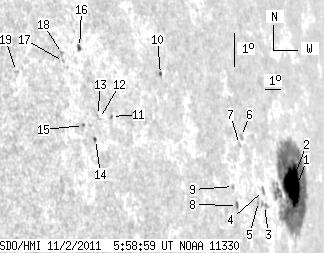

SDO HMI 2011-11-02 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.10 | 236.20 | 68.97 | 362.37 | 6.19 | 256.71 | 71.49 | 275.11 | 0.9468 | -357.7 | -139.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-02 05:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.43 | 204.27 | 15.47 | 325.45 | 6.01 | 258.00 | 72.78 | 274.96 | 0.9548 | 572.7 | -131.4 | |
| 29.78 | -1.00 | 47.19 | -1.00 | 6.03 | 257.30 | 72.08 | 274.94 | 0.9511 | -758.9 | 999999 | |
| 0.00 | 3.90 | 0.00 | 5.46 | 5.61 | 254.77 | 69.55 | 274.38 | 0.9368 | -510.0 | -470.3 | |
| 0.00 | 2.68 | 0.00 | 3.76 | 6.05 | 254.80 | 69.59 | 274.86 | 0.9369 | -450.0 | -374.1 | |
| 0.00 | 1.99 | 0.00 | 2.73 | 5.76 | 254.29 | 69.08 | 274.52 | 0.9338 | -564.0 | -454.6 | |
| 0.00 | 2.25 | 0.00 | 2.97 | 7.77 | 253.49 | 68.27 | 276.65 | 0.9283 | -312.0 | -262.5 | |
| 0.00 | 1.47 | 0.00 | 1.92 | 7.54 | 253.25 | 68.03 | 276.40 | 0.9268 | -147.0 | -126.8 | |
| 1.90 | 2.77 | 2.42 | 3.52 | 5.76 | 252.58 | 67.36 | 274.45 | 0.9227 | -401.9 | -334.2 | |
| 0.00 | 1.82 | 0.00 | 2.29 | 6.34 | 252.41 | 67.20 | 275.07 | 0.9215 | -595.0 | -493.3 | |
| 1.04 | 1.99 | 1.12 | 2.15 | 9.99 | 248.27 | 63.06 | 279.03 | 0.8909 | -345.2 | -323.8 | |
| 0.00 | 1.38 | 0.00 | 1.35 | 8.95 | 244.84 | 59.62 | 277.86 | 0.8624 | -551.0 | -472.6 | |
| 0.00 | 1.13 | 0.00 | 1.07 | 8.93 | 244.12 | 58.91 | 277.85 | 0.8560 | -596.0 | -480.3 | |
| 0.00 | 0.52 | 0.00 | 0.49 | 9.03 | 244.03 | 58.81 | 277.96 | 0.8552 | -291.0 | -288.0 | |
| 1.13 | 1.73 | 1.06 | 1.63 | 8.32 | 243.74 | 58.52 | 277.14 | 0.8525 | 215.1 | 259.7 | |
| 0.00 | 1.21 | 0.00 | 1.12 | 8.78 | 243.16 | 57.94 | 277.68 | 0.8473 | 474.0 | 437.0 | |
| 1.82 | 2.68 | 1.71 | 2.52 | 11.11 | 243.59 | 58.37 | 280.41 | 0.8516 | 473.0 | 407.6 | |
| 0.00 | 1.04 | 0.00 | 0.95 | 10.75 | 242.56 | 57.34 | 280.03 | 0.8421 | 585.0 | 537.7 | |
| 0.00 | 1.73 | 0.00 | 1.58 | 10.99 | 242.57 | 57.36 | 280.31 | 0.8423 | 670.0 | 634.0 | |
| 0.00 | 1.64 | 0.00 | 1.41 | 10.60 | 239.95 | 54.73 | 279.97 | 0.8171 | 240.0 | 306.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
