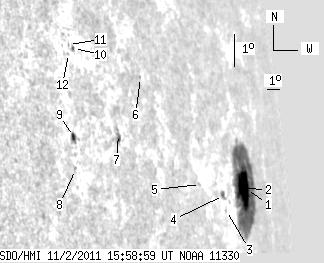

SDO HMI 2011-11-02 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.57 | 160.02 | 63.66 | 347.04 | 6.15 | 256.80 | 77.06 | 275.34 | 0.9731 | -151.4 | -66.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-02 15:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.82 | 140.75 | 20.64 | 320.81 | 5.97 | 257.83 | 78.09 | 275.19 | 0.9781 | 693.3 | -57.3 | |
| 17.90 | -1.00 | 39.93 | -1.00 | 6.04 | 257.28 | 77.54 | 275.24 | 0.9761 | -657.3 | 999999 | |
| 0.00 | 1.47 | 0.00 | 2.79 | 5.54 | 254.99 | 75.25 | 274.60 | 0.9668 | -397.0 | -313.7 | |
| 0.00 | 3.37 | 0.00 | 6.35 | 6.00 | 254.81 | 75.07 | 275.07 | 0.9659 | -469.0 | -396.7 | |
| 0.00 | 0.95 | 0.00 | 1.56 | 6.50 | 252.48 | 72.74 | 275.48 | 0.9545 | -427.0 | -367.8 | |
| 0.00 | 0.61 | 0.00 | 0.81 | 10.00 | 248.40 | 68.66 | 279.08 | 0.9306 | -183.0 | -182.9 | |
| 0.00 | 5.10 | 0.00 | 6.19 | 8.45 | 246.03 | 66.29 | 277.36 | 0.9150 | -433.0 | -268.6 | |
| 0.00 | 0.95 | 0.00 | 1.03 | 7.62 | 242.73 | 63.00 | 276.38 | 0.8905 | 454.0 | 381.9 | |
| 2.85 | 4.06 | 3.09 | 4.41 | 8.60 | 242.88 | 63.14 | 277.49 | 0.8916 | 377.8 | 370.7 | |
| 0.00 | 1.38 | 0.00 | 1.55 | 11.19 | 243.80 | 64.06 | 280.39 | 0.8987 | 310.0 | 253.6 | |
| 0.00 | 1.12 | 0.00 | 1.25 | 11.33 | 243.51 | 63.77 | 280.55 | 0.8965 | 416.0 | 367.6 | |
| 0.00 | 0.26 | 0.00 | 0.29 | 11.07 | 243.40 | 63.66 | 280.25 | 0.8957 | 499.0 | 432.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
