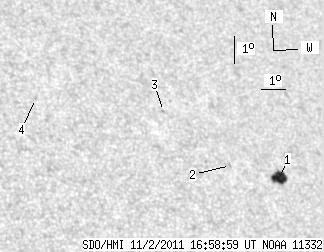

SDO HMI 2011-11-02 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.88 | 18.85 | 8.75 | 12.71 | 31.23 | 214.45 | 35.26 | 313.38 | 0.6813 | -624.7 | -308.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-02 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.88 | 15.39 | 8.75 | 10.45 | 30.86 | 215.35 | 36.16 | 312.26 | 0.6866 | -779.4 | -500.6 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 31.34 | 213.46 | 34.28 | 314.11 | 0.6723 | -576.0 | -490.2 | |
| 0.00 | 1.30 | 0.00 | 0.86 | 33.26 | 211.43 | 32.25 | 317.93 | 0.6683 | -594.0 | -506.3 | |
| 0.00 | 1.21 | 0.00 | 0.77 | 33.87 | 206.40 | 27.21 | 322.85 | 0.6310 | 650.0 | 488.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
