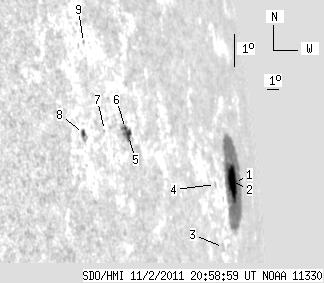

SDO HMI 2011-11-02 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.71 | 133.74 | 67.14 | 358.04 | 6.19 | 256.59 | 79.62 | 275.52 | 0.9818 | -97.4 | -72.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-02 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.87 | 112.04 | 23.52 | 325.87 | 6.02 | 257.77 | 80.80 | 275.40 | 0.9868 | 510.8 | -64.4 | |
| 12.62 | -1.00 | 35.50 | -1.00 | 6.08 | 257.25 | 80.28 | 275.43 | 0.9853 | -495.8 | 999999 | |
| 0.00 | 2.33 | 0.00 | 5.50 | 4.26 | 255.06 | 78.09 | 273.45 | 0.9785 | -343.0 | -329.5 | |
| 0.00 | 1.47 | 0.00 | 3.34 | 6.18 | 254.73 | 77.75 | 275.39 | 0.9769 | -385.0 | -332.4 | |
| 2.94 | 10.46 | 4.04 | 14.32 | 8.25 | 246.26 | 69.28 | 277.21 | 0.9346 | -363.2 | -317.0 | |
| 0.95 | -5.00 | 1.30 | -5.00 | 8.47 | 246.09 | 69.11 | 277.44 | 0.9335 | -478.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.32 | 8.52 | 244.38 | 67.40 | 277.47 | 0.9225 | 184.0 | 154.2 | |
| 2.33 | 5.36 | 2.78 | 6.40 | 8.54 | 242.78 | 65.80 | 277.46 | 0.9115 | 358.5 | 356.7 | |
| 0.00 | 1.04 | 0.00 | 1.29 | 11.22 | 243.85 | 66.87 | 280.39 | 0.9188 | 294.0 | 238.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
