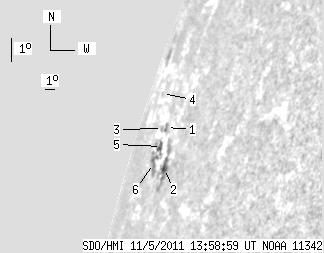

SDO HMI 2011-11-05 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.17 | 48.19 | 18.76 | 134.65 | 17.24 | 60.88 | -80.40 | 73.17 | 0.9844 | -235.8 | 28.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-05 13:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.76 | 0.00 | 8.07 | 18.10 | 60.31 | -80.97 | 72.30 | 0.9862 | -14.0 | 98.9 | |
| 4.84 | 22.97 | 12.06 | 57.82 | 16.94 | 62.09 | -79.19 | 73.50 | 0.9809 | -445.6 | -276.8 | |
| 0.00 | 2.59 | 0.00 | 8.15 | 18.02 | 59.62 | -81.66 | 72.36 | 0.9880 | 460.0 | 405.2 | |
| 0.00 | 1.04 | 0.00 | 4.36 | 18.95 | 57.02 | -84.26 | 71.36 | 0.9937 | 278.0 | 271.0 | |
| 2.33 | 7.86 | 6.70 | 23.36 | 17.52 | 60.49 | -80.79 | 72.89 | 0.9857 | -154.8 | 200.4 | |
| 0.00 | 10.97 | 0.00 | 32.89 | 16.95 | 59.98 | -81.30 | 73.45 | 0.9871 | 320.0 | 222.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
