group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	506.72	3025.40	318.31	1904.50	19.20	104.34	-35.29	63.01	0.6119	-296.8	15.4

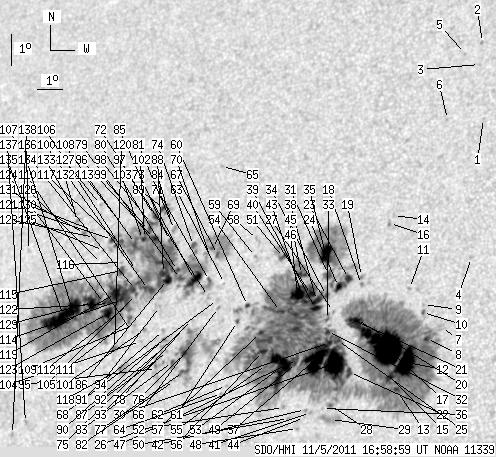

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-05 16:58:59 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.95	0.00	0.57	25.90	111.38	-28.25	48.16	0.5738	-656.0	-550.8
2	0.00	1.38	0.00	0.85	28.34	110.65	-28.98	45.39	0.6012	-537.0	-528.1
3	0.00	0.52	0.00	0.32	27.63	110.75	-28.88	46.28	0.5944	-638.0	-541.0
4	0.00	1.81	0.00	1.06	21.51	111.96	-27.67	54.42	0.5333	-503.0	-468.8
5	0.00	0.95	0.00	0.59	27.96	110.11	-29.52	46.36	0.6036	-606.0	-498.0
6	0.00	0.95	0.00	0.58	25.82	110.04	-29.59	49.42	0.5875	-563.0	-467.6
7	0.00	3.71	0.00	2.16	19.31	111.32	-28.31	58.64	0.5262	-319.0	-334.1
8	1.73	1848.76	1.01	1116.00	18.95	110.85	-28.78	59.61	0.5300	-932.7	-235.1
9	0.00	1.21	0.00	0.71	20.00	110.54	-29.09	58.07	0.5405	-426.0	-298.4
10	1.12	-8.00	0.66	-8.00	19.75	110.55	-29.08	58.48	0.5387	-750.2	999999
11	0.00	1.04	0.00	0.61	20.47	109.93	-29.70	57.74	0.5511	794.0	593.9
12	33.23	-8.00	19.42	-8.00	18.20	110.27	-29.36	61.33	0.5329	-1483.8	999999
13	2.24	-8.00	1.31	-8.00	17.36	110.07	-29.56	62.94	0.5309	-1019.2	999999
14	0.00	1.55	0.00	0.94	22.72	108.81	-30.82	55.00	0.5791	-545.0	-382.6
15	3.19	-8.00	1.87	-8.00	17.72	109.75	-29.88	62.52	0.5370	-957.1	999999
16	0.00	1.47	0.00	0.89	22.47	108.73	-30.90	55.45	0.5784	-643.0	-543.0
17	80.01	-8.00	47.27	-8.00	18.66	109.39	-30.24	61.14	0.5470	-1301.7	999999
18	0.00	1.64	0.00	0.99	20.54	108.14	-31.49	58.90	0.5735	-874.0	-721.0
19	0.00	1.81	0.00	1.10	20.79	108.08	-31.55	58.54	0.5756	-623.0	-480.4
20	2.24	-8.00	1.35	-8.00	19.45	108.20	-31.43	60.61	0.5665	-906.1	999999
21	0.26	-8.00	0.16	-8.00	19.48	107.93	-31.70	60.74	0.5700	-801.7	999999
22	4.83	-8.00	2.88	-8.00	17.82	108.28	-31.35	63.27	0.5568	-989.8	999999
23	3.63	-8.00	2.20	-8.00	20.71	107.62	-32.01	58.98	0.5809	-948.6	999999
24	4.23	-8.00	2.57	-8.00	20.45	107.30	-32.33	59.59	0.5832	-1020.6	999999
25	3.88	-8.00	2.34	-8.00	18.79	107.64	-31.99	62.06	0.5700	-741.8	999999
26	39.10	-8.00	23.44	-8.00	18.08	107.68	-31.95	63.20	0.5658	-1259.3	999999
27	0.00	1.21	0.00	0.73	19.67	107.29	-32.34	60.83	0.5790	-612.0	-468.5
28	1.55	-8.00	0.93	-8.00	16.79	107.78	-31.85	65.30	0.5582	-792.4	999999
29	0.00	13.98	0.00	8.31	16.37	107.86	-31.77	65.99	0.5552	-256.0	-208.2
30	1.47	-8.00	0.89	-8.00	18.71	107.36	-32.27	62.34	0.5732	-805.8	999999
31	5.35	-8.00	3.28	-8.00	20.80	106.84	-32.79	59.32	0.5909	-735.9	999999
32	2.59	-8.00	1.57	-8.00	19.05	107.21	-32.42	61.89	0.5768	-614.7	999999
33	0.60	-8.00	0.37	-8.00	19.42	107.13	-32.50	61.34	0.5797	-538.4	999999
34	2.07	-8.00	1.26	-8.00	20.15	106.92	-32.71	60.30	0.5863	-1014.2	999999
35	14.59	-8.00	8.99	-8.00	21.45	106.56	-33.07	58.50	0.5979	-955.5	999999
36	0.00	0.60	0.00	0.36	16.69	107.51	-32.12	65.63	0.5614	-522.0	-428.7
37	38.32	-8.00	23.16	-8.00	18.24	107.01	-32.62	63.32	0.5752	-1000.8	999999
38	4.32	-8.00	2.64	-8.00	19.99	106.58	-33.05	60.77	0.5895	-952.9	999999
39	3.37	-8.00	2.06	-8.00	19.74	106.60	-33.03	61.14	0.5880	-554.2	999999
40	4.40	-8.00	2.70	-8.00	20.16	106.35	-33.28	60.63	0.5933	-978.9	999999
41	0.00	0.95	0.00	0.57	16.56	107.09	-32.54	66.08	0.5662	-741.0	-601.3
42	0.00	1.38	0.00	0.83	16.64	106.89	-32.74	66.04	0.5692	-544.0	-415.0
43	1.29	-8.00	0.80	-8.00	19.94	106.14	-33.49	61.10	0.5947	-595.2	999999
44	0.00	0.78	0.00	0.47	16.40	106.90	-32.73	66.45	0.5680	-377.0	-315.8
45	4.40	-8.00	2.73	-8.00	20.77	105.82	-33.81	60.01	0.6030	-719.9	999999
46	11.13	-8.00	6.88	-8.00	20.18	105.81	-33.82	60.92	0.6000	-882.8	999999
47	0.95	-8.00	0.58	-8.00	18.15	106.28	-33.35	63.87	0.5840	-740.7	999999
48	0.00	1.47	0.00	0.88	16.05	106.71	-32.92	67.12	0.5691	-611.0	-465.1
49	0.86	-8.00	0.53	-8.00	18.03	106.27	-33.36	64.08	0.5836	-716.8	999999
50	0.00	1.38	0.00	0.83	16.34	106.32	-33.31	66.82	0.5755	-589.0	-483.2
51	3.80	13.55	2.38	8.52	21.27	104.99	-34.64	59.73	0.6156	-648.2	-26.2
52	0.00	1.38	0.00	0.84	16.67	106.07	-33.56	66.41	0.5801	542.0	289.0
53	33.58	-8.00	20.56	-8.00	17.88	105.70	-33.93	64.61	0.5902	-947.8	999999
54	2.33	-8.00	1.44	-8.00	19.60	105.31	-34.32	62.11	0.6033	1152.0	999999
55	1.04	-8.00	0.64	-8.00	17.96	105.16	-34.47	64.78	0.5974	-547.6	999999
56	3.63	-8.00	2.24	-8.00	18.35	104.92	-34.71	64.28	0.6022	-524.3	999999
57	1.38	-8.00	0.86	-8.00	18.93	104.70	-34.93	63.48	0.6075	1315.4	999999
58	0.00	2.68	0.00	1.71	21.79	103.83	-35.80	59.61	0.6320	-488.0	-396.8
59	0.00	1.04	0.00	0.66	21.26	103.90	-35.73	60.36	0.6285	-635.0	-510.4
60	1.90	-8.00	1.20	-8.00	19.73	104.00	-35.63	62.60	0.6199	870.9	999999
61	1.29	7.77	0.82	4.91	19.23	103.74	-35.89	63.50	0.6208	775.9	779.3
62	0.00	0.86	0.00	0.54	17.26	103.78	-35.84	66.54	0.6119	-426.0	-256.2
63	0.00	0.78	0.00	0.50	20.38	102.92	-36.71	62.18	0.6359	-180.0	-182.3
64	0.00	0.86	0.00	0.54	17.01	103.65	-35.98	66.99	0.6127	597.0	497.2
65	0.00	1.12	0.00	0.74	24.01	101.66	-37.97	57.61	0.6678	662.0	540.9
66	0.00	1.38	0.00	0.88	19.63	102.89	-36.74	63.31	0.6329	890.0	746.0
67	2.33	44.97	1.51	29.15	21.26	102.39	-37.24	61.14	0.6462	895.7	402.3
68	0.00	1.29	0.00	0.83	19.87	102.78	-36.85	63.00	0.6353	696.0	600.0
69	1.81	-67.00	1.18	-67.00	21.44	102.13	-37.49	61.01	0.6500	868.9	999999
70	0.00	0.86	0.00	0.56	21.07	102.21	-37.42	61.52	0.6475	710.0	564.3
71	1.90	881.52	1.23	598.83	20.45	102.31	-37.32	62.38	0.6435	-361.3	378.0
72	0.00	2.16	0.00	1.39	19.95	102.41	-37.22	63.06	0.6401	681.0	603.1
73	10.01	-71.00	6.51	-71.00	20.45	101.70	-37.93	62.66	0.6507	-794.3	999999
74	3.37	-71.00	2.21	-71.00	21.50	101.35	-38.28	61.31	0.6594	699.7	999999
75	0.00	1.21	0.00	0.78	19.22	101.97	-37.66	64.35	0.6423	811.0	683.0
76	2.85	91.32	1.83	58.43	18.17	101.89	-37.74	65.96	0.6391	831.8	430.1
77	4.49	-76.00	2.87	-76.00	17.62	102.03	-37.60	66.74	0.6354	805.8	999999
78	0.00	1.21	0.00	0.78	18.93	101.69	-37.94	64.91	0.6445	685.0	580.3
79	3.54	-71.00	2.32	-71.00	20.46	101.13	-38.50	62.91	0.6574	430.9	999999
80	1.90	-71.00	1.25	-71.00	20.70	100.94	-38.69	62.65	0.6607	568.2	999999
81	0.00	2.68	0.00	1.79	21.97	100.41	-39.22	61.09	0.6721	878.0	719.3
82	0.00	1.12	0.00	0.72	17.33	101.74	-37.89	67.29	0.6378	717.0	617.4
83	1.29	-76.00	0.83	-76.00	17.90	101.52	-38.11	66.51	0.6427	1001.0	999999
84	0.00	1.29	0.00	0.87	22.18	100.22	-39.41	60.89	0.6753	551.0	529.3
85	1.55	-71.00	1.04	-71.00	21.62	100.32	-39.31	61.63	0.6717	876.0	999999
86	5.44	-71.00	3.59	-71.00	20.41	100.62	-39.01	63.22	0.6632	-739.7	999999
87	0.00	1.12	0.00	0.73	18.20	101.24	-38.39	66.18	0.6472	813.0	732.3
88	1.38	-71.00	0.91	-71.00	20.59	100.40	-39.23	63.06	0.6665	-705.5	999999
89	3.02	9.75	2.04	6.58	22.60	99.74	-39.89	60.52	0.6825	619.0	507.0
90	0.86	2.85	0.56	1.85	18.56	100.99	-38.64	65.75	0.6516	856.2	752.6
91	0.00	1.81	0.00	1.18	18.84	100.91	-38.72	65.38	0.6535	709.0	634.3
92	0.00	3.80	0.00	2.47	18.28	101.02	-38.61	66.15	0.6502	624.0	632.2
93	0.00	0.86	0.00	0.56	18.04	101.00	-38.63	66.52	0.6495	535.0	470.2
94	0.00	1.38	0.00	0.91	19.56	100.54	-39.09	64.47	0.6607	741.0	601.3
95	0.00	13.64	0.00	8.85	17.67	100.94	-38.69	67.10	0.6489	509.0	338.0
96	2.68	-71.00	1.80	-71.00	21.65	99.69	-39.94	61.87	0.6790	1052.5	999999
97	3.11	-71.00	2.11	-71.00	22.37	99.44	-40.19	60.98	0.6848	763.6	999999
98	1.12	-71.00	0.76	-71.00	22.11	99.40	-40.23	61.35	0.6841	834.9	999999
99	3.28	-71.00	2.22	-71.00	21.89	99.40	-40.23	61.66	0.6833	828.8	999999
100	7.08	-71.00	4.71	-71.00	20.07	99.94	-39.69	64.00	0.6697	789.0	999999
101	0.00	1.81	0.00	1.20	18.83	100.14	-39.49	65.69	0.6628	883.0	767.4
102	1.38	-71.00	0.93	-71.00	21.63	99.27	-40.36	62.07	0.6836	256.1	999999
103	0.86	-71.00	0.58	-71.00	21.60	99.20	-40.43	62.15	0.6843	-340.2	999999
104	0.00	0.95	0.00	0.63	18.46	100.08	-39.55	66.26	0.6621	710.0	609.2
105	1.21	-71.00	0.81	-71.00	19.89	99.50	-40.13	64.43	0.6742	856.4	999999
106	0.00	1.64	0.00	1.10	20.63	99.27	-40.36	63.48	0.6797	743.0	658.9
107	0.86	-71.00	0.58	-71.00	20.05	99.41	-40.22	64.25	0.6758	886.8	999999
108	3.88	-71.00	2.64	-71.00	21.46	98.95	-40.68	62.45	0.6866	499.2	999999
109	0.00	2.16	0.00	1.43	18.97	99.69	-39.94	65.67	0.6686	878.0	694.6
110	0.00	0.95	0.00	0.63	18.72	99.68	-39.95	66.04	0.6678	752.0	634.7
111	3.11	-71.00	2.07	-71.00	19.11	99.44	-40.19	65.56	0.6720	767.7	999999
112	0.78	-71.00	0.52	-71.00	19.57	99.27	-40.36	64.98	0.6758	932.9	999999
113	0.00	1.04	0.00	0.71	21.94	98.32	-41.31	62.06	0.6955	597.0	519.2
114	1.21	-71.00	0.81	-71.00	19.72	98.97	-40.66	64.89	0.6797	1079.2	999999
115	3.97	-71.00	2.70	-71.00	20.60	98.65	-40.98	63.77	0.6867	750.3	999999
116	0.00	1.04	0.00	0.71	20.85	98.56	-41.06	63.46	0.6886	571.0	455.3
117	4.06	-71.00	2.78	-71.00	21.43	98.28	-41.35	62.76	0.6940	844.5	999999
118	1.12	9.41	0.74	6.22	17.57	99.47	-40.16	67.79	0.6665	630.8	555.8
119	7.16	-71.00	4.85	-71.00	19.89	98.63	-41.00	64.78	0.6843	975.5	999999
120	2.33	3.28	1.56	2.19	18.20	99.09	-40.54	67.01	0.6731	729.9	774.3
121	2.50	-71.00	1.73	-71.00	21.55	97.94	-41.69	62.75	0.6982	670.4	999999
122	1.21	-71.00	0.82	-71.00	19.57	98.47	-41.16	65.29	0.6850	972.1	999999
123	9.75	-71.00	6.60	-71.00	19.26	98.48	-41.14	65.72	0.6838	1054.2	999999
124	1.29	-71.00	0.88	-71.00	19.56	98.27	-41.36	65.38	0.6873	892.9	999999
125	0.00	1.38	0.00	0.95	21.19	97.68	-41.95	63.34	0.6997	458.0	360.2
126	0.00	0.78	0.00	0.54	20.78	97.74	-41.89	63.88	0.6977	428.0	378.9
127	0.00	0.95	0.00	0.67	22.61	97.03	-42.60	61.68	0.7122	521.0	438.5
128	0.00	2.16	0.00	1.51	21.57	97.16	-42.47	63.02	0.7070	665.0	563.6
129	22.10	-71.00	15.14	-71.00	19.57	97.75	-41.88	65.55	0.6932	877.4	999999
130	0.00	1.21	0.00	0.85	21.79	96.99	-42.64	62.80	0.7096	574.0	466.5
131	1.47	1.90	1.03	1.34	21.68	96.68	-42.95	63.06	0.7126	657.6	555.0
132	0.00	2.68	0.00	1.90	22.04	96.24	-43.39	62.75	0.7187	775.0	551.1
133	0.00	1.55	0.00	1.11	22.25	96.15	-43.48	62.49	0.7203	517.0	388.4
134	1.21	-71.00	0.83	-71.00	19.02	97.21	-42.42	66.52	0.6977	1001.1	999999
135	46.35	-71.00	32.24	-71.00	19.12	96.66	-42.97	66.56	0.7043	922.2	999999
136	0.00	1.47	0.00	1.07	21.04	94.43	-45.20	64.71	0.7349	472.0	344.1
137	0.00	1.55	0.00	1.08	15.79	96.02	-43.61	71.38	0.7028	628.0	509.9
138	0.00	1.73	0.00	1.21	15.41	95.56	-44.07	72.03	0.7072	723.0	565.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
