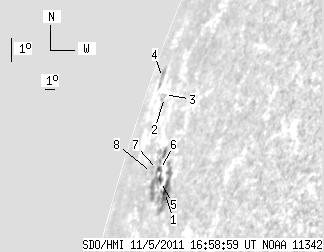

SDO HMI 2011-11-05 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.90 | 71.64 | 9.23 | 188.01 | 17.76 | 59.93 | -79.70 | 72.64 | 0.9815 | -7.2 | -9.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-05 16:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 30.99 | 2.26 | 67.92 | 16.86 | 62.16 | -77.47 | 73.59 | 0.9749 | -465.2 | -273.0 | |
| 0.00 | 0.86 | 0.00 | 2.94 | 19.51 | 57.12 | -82.51 | 70.84 | 0.9900 | 547.0 | 468.6 | |
| 0.00 | 1.38 | 0.00 | 4.82 | 19.59 | 56.89 | -82.74 | 70.76 | 0.9905 | 567.0 | 534.1 | |
| 0.00 | 7.77 | 0.00 | 35.61 | 19.99 | 54.90 | -84.73 | 70.30 | 0.9945 | 112.0 | 38.8 | |
| 1.04 | 29.43 | 2.43 | 73.42 | 17.14 | 61.14 | -78.49 | 73.30 | 0.9785 | -221.7 | 144.3 | |
| 1.04 | -5.00 | 2.56 | -5.00 | 17.48 | 60.60 | -79.03 | 72.95 | 0.9804 | -185.7 | 999999 | |
| 0.78 | -5.00 | 1.98 | -5.00 | 17.45 | 60.14 | -79.49 | 72.98 | 0.9818 | 149.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 3.30 | 17.30 | 59.31 | -80.32 | 73.12 | 0.9844 | 447.0 | 394.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
