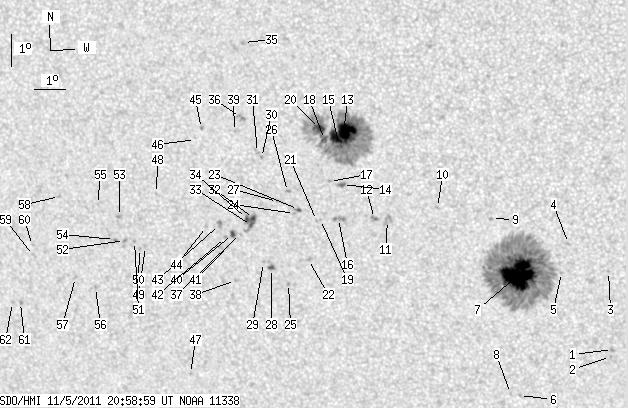

SDO HMI 2011-11-05 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.44 | 704.35 | 62.99 | 381.73 | -13.87 | 121.80 | -15.61 | 139.58 | 0.4064 | 452.0 | 279.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-05 20:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.03 | -17.79 | 127.61 | -9.81 | 156.28 | 0.4051 | 834.0 | 674.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -18.02 | 127.53 | -9.89 | 156.35 | 0.4088 | 875.0 | 685.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.32 | 127.61 | -9.81 | 153.45 | 0.3692 | -689.0 | -485.3 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -14.46 | 126.40 | -11.02 | 149.51 | 0.3663 | -622.0 | -425.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -15.37 | 126.13 | -11.29 | 150.19 | 0.3812 | 630.0 | 515.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.32 | 124.53 | -12.89 | 151.83 | 0.4478 | 752.0 | 537.5 | |
| 56.97 | 371.43 | 30.67 | 199.86 | -15.45 | 124.77 | -12.64 | 147.43 | 0.3937 | 1427.7 | 421.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.26 | 124.25 | -13.17 | 151.24 | 0.4492 | 732.0 | 526.2 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -13.71 | 124.03 | -13.39 | 143.25 | 0.3777 | -494.0 | -315.6 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -13.40 | 122.35 | -15.07 | 139.44 | 0.3908 | 869.0 | 638.5 | |
| 0.00 | 6.21 | 0.00 | 3.38 | -13.83 | 120.73 | -16.69 | 137.31 | 0.4131 | -527.0 | -672.3 | |
| 0.00 | 3.54 | 0.00 | 1.93 | -13.78 | 120.31 | -17.11 | 136.53 | 0.4170 | -921.0 | -755.3 | |
| 35.74 | 228.49 | 19.28 | 123.43 | -11.17 | 119.51 | -17.91 | 130.45 | 0.3982 | 1231.5 | 393.6 | |
| 1.81 | 3.63 | 0.99 | 1.97 | -12.74 | 119.37 | -18.05 | 133.19 | 0.4163 | -940.0 | -761.1 | |
| 1.47 | -13.00 | 0.79 | -13.00 | -11.57 | 119.35 | -18.07 | 130.99 | 0.4042 | 777.7 | 999999 | |
| 0.00 | 4.40 | 0.00 | 2.41 | -13.81 | 119.16 | -18.26 | 134.72 | 0.4301 | -752.0 | -791.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -12.66 | 118.96 | -18.46 | 132.40 | 0.4202 | -821.0 | -609.5 | |
| 2.59 | -13.00 | 1.40 | -13.00 | -11.36 | 118.89 | -18.53 | 129.88 | 0.4078 | 766.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -13.85 | 118.57 | -18.85 | 133.90 | 0.4372 | 837.0 | 624.3 | |
| 6.91 | -13.00 | 3.74 | -13.00 | -11.03 | 118.75 | -18.67 | 129.03 | 0.4062 | 1046.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -13.88 | 118.44 | -18.98 | 133.76 | 0.4391 | 638.0 | 563.6 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -15.11 | 118.07 | -19.35 | 135.24 | 0.4563 | -1053.0 | -767.4 | |
| 1.38 | 2.24 | 0.76 | 1.24 | -13.55 | 117.88 | -19.54 | 132.38 | 0.4420 | 651.6 | 335.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -13.68 | 117.74 | -19.68 | 132.40 | 0.4449 | 373.0 | 242.8 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -15.89 | 117.33 | -20.09 | 135.41 | 0.4725 | -849.0 | -733.9 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -13.00 | 117.57 | -19.85 | 130.98 | 0.4400 | -970.0 | -782.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -13.32 | 117.22 | -20.20 | 131.05 | 0.4474 | -790.0 | -637.9 | |
| 2.16 | 4.57 | 1.21 | 2.57 | -15.43 | 116.82 | -20.60 | 133.98 | 0.4733 | -816.8 | -579.5 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -15.24 | 116.58 | -20.84 | 133.36 | 0.4741 | -683.0 | -565.5 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -11.97 | 116.81 | -20.61 | 128.08 | 0.4392 | -971.0 | -758.4 | |
| 0.00 | 2.16 | 0.00 | 1.19 | -11.82 | 116.70 | -20.72 | 127.64 | 0.4393 | -690.0 | -547.5 | |
| 2.24 | 12.69 | 1.25 | 7.09 | -13.87 | 116.39 | -21.03 | 130.86 | 0.4626 | -1082.3 | -860.3 | |
| 1.29 | -32.00 | 0.72 | -32.00 | -14.09 | 116.30 | -21.12 | 131.11 | 0.4658 | -891.0 | 999999 | |
| 1.12 | -32.00 | 0.63 | -32.00 | -13.88 | 116.16 | -21.26 | 130.56 | 0.4654 | -952.2 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -8.46 | 116.47 | -20.95 | 120.71 | 0.4131 | 559.0 | 560.8 | |
| 0.00 | 3.97 | 0.00 | 2.18 | -10.75 | 116.23 | -21.19 | 125.03 | 0.4356 | 771.0 | 733.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -14.35 | 115.91 | -21.51 | 131.04 | 0.4729 | -578.0 | -446.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -15.84 | 115.59 | -21.83 | 132.99 | 0.4912 | -687.0 | -500.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -11.19 | 116.00 | -21.42 | 125.57 | 0.4423 | 822.0 | 679.2 | |
| 2.76 | 2.93 | 1.55 | 1.65 | -14.39 | 115.64 | -21.78 | 130.75 | 0.4763 | -884.7 | -851.5 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -14.77 | 115.44 | -21.98 | 131.11 | 0.4824 | -689.0 | -572.3 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -14.49 | 115.40 | -22.02 | 130.61 | 0.4801 | -755.0 | -603.2 | |
| 0.00 | 3.28 | 0.00 | 1.85 | -14.09 | 115.24 | -22.18 | 129.75 | 0.4781 | -826.0 | -726.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -14.16 | 114.81 | -22.61 | 129.33 | 0.4840 | -614.0 | -514.2 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -11.12 | 114.93 | -22.49 | 124.15 | 0.4556 | 756.0 | 623.2 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -11.47 | 114.70 | -22.72 | 124.53 | 0.4614 | 485.0 | 406.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -18.85 | 113.67 | -23.75 | 135.05 | 0.5417 | -596.0 | -435.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -13.18 | 113.24 | -24.18 | 125.88 | 0.4942 | -607.0 | -498.0 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -14.85 | 112.68 | -24.74 | 127.99 | 0.5153 | -715.0 | -662.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -14.92 | 112.47 | -24.95 | 127.87 | 0.5184 | -717.0 | -593.5 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -14.70 | 112.33 | -25.09 | 127.37 | 0.5183 | -831.0 | -682.6 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -14.68 | 111.99 | -25.43 | 126.98 | 0.5221 | -877.0 | -749.8 | |
| 0.00 | 2.07 | 0.00 | 1.20 | -13.94 | 111.91 | -25.51 | 125.70 | 0.5168 | -834.0 | -771.5 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -14.66 | 111.65 | -25.77 | 126.60 | 0.5260 | -777.0 | -656.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -13.58 | 111.20 | -26.22 | 124.41 | 0.5226 | -616.0 | -515.8 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -16.20 | 110.79 | -26.63 | 128.07 | 0.5490 | -880.0 | -717.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -15.91 | 110.13 | -27.29 | 126.99 | 0.5541 | -723.0 | -577.5 | |
| 0.00 | 1.47 | 0.00 | 0.86 | -13.38 | 109.92 | -27.49 | 122.85 | 0.5368 | -848.0 | -656.2 | |
| 0.00 | 1.38 | 0.00 | 0.83 | -15.26 | 108.76 | -28.66 | 124.72 | 0.5651 | -643.0 | -450.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -14.94 | 108.77 | -28.65 | 124.26 | 0.5626 | -784.0 | -703.3 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -16.77 | 108.06 | -29.36 | 126.32 | 0.5848 | -604.0 | -525.9 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -16.78 | 107.77 | -29.65 | 126.08 | 0.5882 | -574.0 | -432.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
