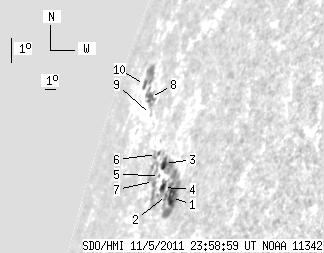

SDO HMI 2011-11-05 23:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.63 | 129.69 | 46.20 | 256.70 | 17.90 | 59.63 | -76.14 | 72.51 | 0.9685 | -108.0 | 32.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-05 23:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.43 | 71.67 | 12.30 | 122.46 | 16.78 | 62.81 | -72.95 | 73.63 | 0.9554 | -621.4 | -259.5 | |
| 1.04 | -1.00 | 1.77 | -1.00 | 16.81 | 62.24 | -73.53 | 73.62 | 0.9582 | -307.1 | 999999 | |
| 3.63 | -1.00 | 6.65 | -1.00 | 17.72 | 60.99 | -74.78 | 72.68 | 0.9640 | -221.9 | 999999 | |
| 3.37 | -1.00 | 5.94 | -1.00 | 17.02 | 61.67 | -74.09 | 73.40 | 0.9608 | -263.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.59 | 17.34 | 60.83 | -74.93 | 73.08 | 0.9646 | -205.0 | -144.2 | |
| 0.00 | 5.01 | 0.00 | 9.94 | 17.92 | 59.73 | -76.04 | 72.49 | 0.9694 | 402.0 | 301.5 | |
| 0.00 | 23.31 | 0.00 | 44.46 | 17.12 | 60.35 | -75.41 | 73.31 | 0.9667 | 265.0 | 261.3 | |
| 4.14 | 12.43 | 10.57 | 31.60 | 19.49 | 56.33 | -79.44 | 70.89 | 0.9816 | 601.0 | 453.4 | |
| 0.00 | 1.21 | 0.00 | 2.86 | 19.01 | 57.21 | -78.56 | 71.38 | 0.9788 | 488.0 | 450.5 | |
| 3.02 | 15.20 | 8.97 | 43.79 | 19.78 | 54.54 | -81.23 | 70.58 | 0.9868 | -166.7 | 185.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
