SDO HMI 2011-11-06 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.28 | 676.78 | 67.33 | 361.49 | -13.83 | 121.69 | -12.43 | 145.66 | 0.3746 | 485.5 | 309.0 | |
|
previous
or next observation for the same group /

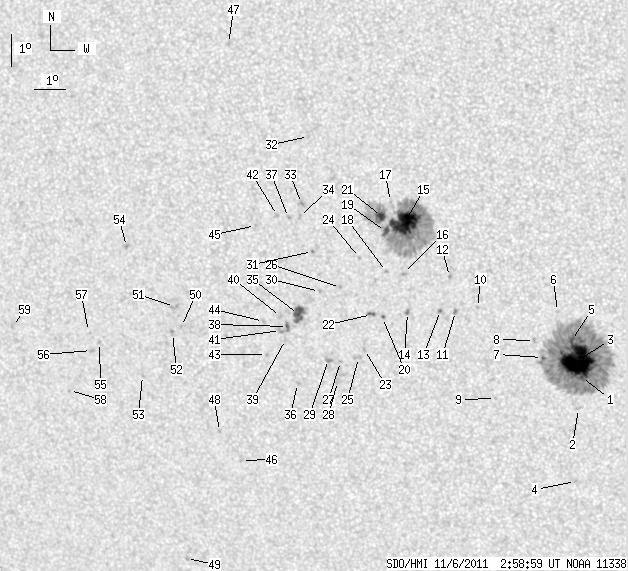

back to the solar disc SDO HMI 2011-11-06 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 354.53 | 0.41 | 188.57 | -15.92 | 124.87 | -9.25 | 155.45 | 0.3735 | 944.0 | 445.8 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -16.91 | 124.73 | -9.39 | 156.23 | 0.3888 | -301.0 | -253.9 | |
| 57.69 | -1.00 | 30.69 | -1.00 | -15.39 | 124.77 | -9.35 | 154.57 | 0.3663 | 1478.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -19.25 | 124.50 | -9.61 | 158.10 | 0.4245 | 711.0 | 505.1 | |
| 1.55 | -1.00 | 0.82 | -1.00 | -14.76 | 124.61 | -9.51 | 153.41 | 0.3583 | 1176.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.86 | 124.21 | -9.90 | 151.22 | 0.3483 | 934.0 | 669.8 | |
| 1.12 | -1.00 | 0.60 | -1.00 | -15.30 | 123.68 | -10.44 | 151.94 | 0.3731 | 599.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -14.77 | 123.45 | -10.66 | 150.72 | 0.3674 | 867.0 | 640.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -16.62 | 122.12 | -11.99 | 150.30 | 0.4037 | -731.0 | -547.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -13.77 | 121.72 | -12.39 | 145.38 | 0.3685 | 733.0 | 494.3 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -13.90 | 121.02 | -13.09 | 144.12 | 0.3768 | -1146.0 | -911.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.81 | 120.90 | -13.22 | 142.04 | 0.3641 | -976.0 | -822.4 | |
| 1.04 | 2.25 | 0.55 | 1.20 | -13.88 | 120.55 | -13.56 | 143.13 | 0.3810 | -858.2 | -730.0 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -13.96 | 119.51 | -14.61 | 141.21 | 0.3924 | -1034.0 | -859.8 | |
| 38.61 | 186.21 | 20.47 | 98.76 | -11.17 | 119.57 | -14.54 | 136.31 | 0.3581 | 1259.0 | 381.1 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -12.75 | 119.46 | -14.66 | 139.03 | 0.3781 | -925.0 | -806.0 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -10.53 | 119.17 | -14.95 | 134.24 | 0.3555 | 718.0 | 540.6 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -12.69 | 118.92 | -15.19 | 137.93 | 0.3832 | -888.0 | -612.0 | |
| 4.23 | -15.00 | 2.25 | -15.00 | -11.46 | 118.96 | -15.15 | 135.70 | 0.3684 | 755.0 | 999999 | |
| 0.35 | 1.12 | 0.19 | 0.61 | -14.13 | 118.70 | -15.41 | 140.00 | 0.4027 | 708.0 | 473.8 | |
| 5.79 | 33.94 | 3.08 | 18.05 | -11.00 | 118.86 | -15.25 | 134.61 | 0.3643 | 1089.2 | 474.3 | |
| 1.21 | 3.11 | 0.65 | 1.68 | -14.04 | 118.36 | -15.76 | 139.23 | 0.4052 | 833.6 | 605.5 | |
| 0.00 | 1.55 | 0.00 | 0.85 | -15.14 | 118.05 | -16.06 | 140.48 | 0.4215 | -945.0 | -648.6 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -12.28 | 118.10 | -16.02 | 135.66 | 0.3875 | 527.0 | 406.3 | |
| 0.00 | 3.02 | 0.00 | 1.65 | -15.40 | 117.84 | -16.28 | 140.51 | 0.4267 | -637.0 | -684.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -13.22 | 117.43 | -16.69 | 136.21 | 0.4056 | -892.0 | -761.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -15.54 | 117.25 | -16.87 | 139.73 | 0.4343 | -835.0 | -719.8 | |
| 0.00 | 2.33 | 0.00 | 1.29 | -16.17 | 117.10 | -17.02 | 140.45 | 0.4433 | -657.0 | -588.3 | |
| 0.00 | 3.63 | 0.00 | 2.00 | -15.48 | 116.87 | -17.25 | 139.02 | 0.4376 | -897.0 | -722.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -13.36 | 116.75 | -17.37 | 135.32 | 0.4148 | -899.0 | -716.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -12.12 | 116.61 | -17.50 | 132.86 | 0.4029 | -961.0 | -897.3 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -8.59 | 116.69 | -17.42 | 125.76 | 0.3665 | 927.0 | 699.4 | |
| 0.00 | 2.85 | 0.00 | 1.53 | -10.65 | 116.36 | -17.76 | 129.60 | 0.3907 | 1058.0 | 801.9 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -11.05 | 116.27 | -17.85 | 130.26 | 0.3959 | 825.0 | 630.0 | |
| 12.61 | 14.34 | 6.91 | 7.86 | -14.09 | 116.02 | -18.10 | 135.40 | 0.4310 | -1009.0 | -857.5 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -16.26 | 115.79 | -18.33 | 138.52 | 0.4576 | -749.0 | -615.6 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -11.09 | 115.92 | -18.20 | 129.79 | 0.4006 | 747.0 | 603.9 | |
| 1.30 | 3.45 | 0.71 | 1.90 | -14.47 | 115.63 | -18.49 | 135.44 | 0.4395 | -957.7 | -878.0 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -14.88 | 115.53 | -18.59 | 135.96 | 0.4450 | -635.0 | -577.7 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -14.17 | 115.43 | -18.69 | 134.62 | 0.4383 | -861.0 | -634.9 | |
| 0.00 | 2.94 | 0.00 | 1.62 | -14.61 | 115.39 | -18.73 | 135.30 | 0.4435 | -779.0 | -690.6 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -11.03 | 115.57 | -18.55 | 129.16 | 0.4043 | 840.0 | 612.2 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -15.37 | 114.86 | -19.25 | 135.75 | 0.4575 | -592.0 | -497.8 | |
| 0.00 | 2.25 | 0.00 | 1.24 | -14.34 | 114.86 | -19.25 | 134.06 | 0.4465 | -665.0 | -463.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -11.36 | 114.84 | -19.27 | 128.72 | 0.4165 | 738.0 | 580.2 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -18.77 | 113.66 | -20.46 | 139.05 | 0.5070 | -663.0 | -447.2 | |
| 0.00 | 2.33 | 0.00 | 1.25 | -5.83 | 114.28 | -19.84 | 116.05 | 0.3774 | 924.0 | 644.3 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -17.86 | 113.03 | -21.08 | 136.94 | 0.5034 | -707.0 | -517.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -22.03 | 111.29 | -22.82 | 140.25 | 0.5645 | -758.0 | -605.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -14.56 | 112.15 | -21.97 | 130.74 | 0.4798 | -740.0 | -549.8 | |
| 0.00 | 3.45 | 0.00 | 1.94 | -13.94 | 111.98 | -22.13 | 129.50 | 0.4759 | -584.0 | -698.2 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -14.79 | 111.83 | -22.29 | 130.70 | 0.4857 | -715.0 | -686.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -16.14 | 110.66 | -23.45 | 131.42 | 0.5119 | -854.0 | -753.7 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -12.12 | 110.57 | -23.55 | 124.69 | 0.4770 | -872.0 | -746.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -15.14 | 109.33 | -24.78 | 128.35 | 0.5181 | -848.0 | -660.3 | |
| 0.00 | 2.07 | 0.00 | 1.20 | -15.40 | 109.03 | -25.09 | 128.43 | 0.5239 | -764.0 | -591.8 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -14.81 | 109.00 | -25.11 | 127.47 | 0.5191 | -267.0 | -443.0 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -16.69 | 108.09 | -26.02 | 129.39 | 0.5459 | -656.0 | -527.2 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -14.73 | 106.40 | -27.72 | 124.74 | 0.5495 | -756.0 | -413.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
