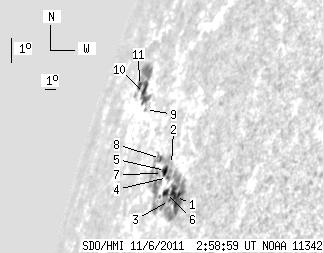

SDO HMI 2011-11-06 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.65 | 152.18 | 61.68 | 274.05 | 17.95 | 59.97 | -74.14 | 72.42 | 0.9598 | -32.0 | -0.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-06 02:58:59 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.76 | 115.13 | 14.81 | 185.06 | 16.88 | 62.89 | -71.22 | 73.47 | 0.9465 | -621.7 | -80.9 | |
| 0.00 | 1.21 | 0.00 | 1.95 | 17.80 | 61.60 | -72.51 | 72.55 | 0.9533 | -114.0 | -91.7 | |
| 1.12 | -1.00 | 1.74 | -1.00 | 16.73 | 62.44 | -71.68 | 73.65 | 0.9489 | -318.4 | 999999 | |
| 1.04 | -1.00 | 1.68 | -1.00 | 17.39 | 61.59 | -72.52 | 72.97 | 0.9533 | -387.1 | 999999 | |
| 2.68 | -1.00 | 4.43 | -1.00 | 17.58 | 61.18 | -72.93 | 72.78 | 0.9554 | -209.4 | 999999 | |
| 2.76 | -1.00 | 4.41 | -1.00 | 16.94 | 61.83 | -72.29 | 73.44 | 0.9520 | -353.3 | 999999 | |
| 0.78 | -1.00 | 1.30 | -1.00 | 17.48 | 60.97 | -73.15 | 72.90 | 0.9564 | 133.2 | 999999 | |
| 1.90 | -1.00 | 3.30 | -1.00 | 17.90 | 60.28 | -73.83 | 72.47 | 0.9597 | -186.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.89 | 19.20 | 56.61 | -77.51 | 71.18 | 0.9751 | 573.0 | 554.4 | |
| 10.36 | 34.98 | 24.20 | 85.15 | 19.65 | 55.70 | -78.41 | 70.73 | 0.9783 | 483.7 | 207.9 | |
| 2.25 | -10.00 | 5.81 | -10.00 | 19.82 | 54.52 | -79.59 | 70.55 | 0.9822 | -148.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
