group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	536.24	3088.53	314.46	1811.37	19.25	104.30	-28.72	58.62	0.5308	-289.1	-29.6

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-06 04:58:59 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

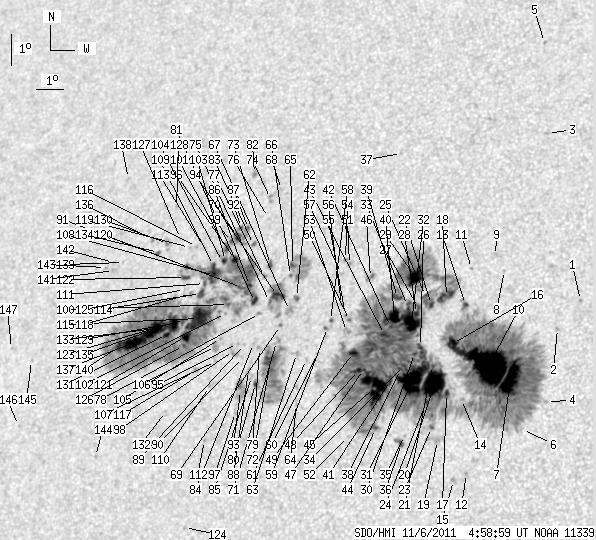

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.21	0.00	0.67	20.73	112.23	-20.79	48.47	0.4453	-886.0	-703.1
2	0.00	1.38	0.00	0.76	19.85	111.58	-21.44	50.90	0.4450	-1019.0	-827.8
3	0.00	1.30	0.00	0.75	25.96	110.17	-22.85	42.52	0.5186	-756.0	-527.0
4	0.00	1.38	0.00	0.76	17.57	111.51	-21.51	55.41	0.4264	-341.0	-229.2
5	0.00	1.21	0.00	0.72	28.91	109.40	-23.62	39.34	0.5555	-650.0	-535.3
6	0.00	1.21	0.00	0.66	16.72	110.81	-22.21	57.90	0.4291	-304.0	-234.0
7	28.68	1926.47	15.88	1093.24	18.24	110.21	-22.81	55.51	0.4487	-1586.4	-303.9
8	0.00	0.95	0.00	0.54	21.60	109.48	-23.54	50.19	0.4855	-757.0	-585.6
9	0.00	1.99	0.00	1.13	22.06	109.08	-23.94	49.84	0.4941	-514.0	-424.9
10	84.13	-7.00	46.94	-7.00	18.65	109.40	-23.62	55.57	0.4622	-1494.7	999999
11	0.00	1.04	0.00	0.59	21.63	108.31	-24.71	51.36	0.4995	514.0	375.5
12	0.00	1.12	0.00	0.62	15.34	109.10	-23.92	62.42	0.4430	-1014.0	-881.0
13	1.99	-7.00	1.13	-7.00	20.51	108.30	-24.72	53.30	0.4905	693.0	999999
14	0.00	1.64	0.00	0.92	17.59	108.63	-24.39	58.35	0.4644	-863.0	-788.1
15	0.00	2.76	0.00	1.53	15.12	108.68	-24.33	63.24	0.4474	-900.0	-595.8
16	6.31	-7.00	3.57	-7.00	19.29	108.05	-24.97	55.70	0.4842	-927.2	999999
17	3.02	-7.00	1.70	-7.00	17.75	108.09	-24.93	58.53	0.4727	-1128.7	999999
18	11.75	-7.00	6.71	-7.00	20.74	107.60	-25.42	53.59	0.5009	-995.1	999999
19	0.00	3.54	0.00	1.98	16.31	107.99	-25.03	61.41	0.4645	-178.0	-169.2
20	40.94	-7.00	23.10	-7.00	18.05	107.63	-25.39	58.39	0.4807	-1323.1	999999
21	1.30	-7.00	0.73	-7.00	18.60	107.47	-25.55	57.51	0.4866	-729.9	999999
22	2.50	-7.00	1.44	-7.00	20.48	107.11	-25.91	54.50	0.5048	-1049.5	999999
23	1.64	-7.00	0.92	-7.00	16.70	107.72	-25.29	60.86	0.4705	-769.9	999999
24	2.07	-7.00	1.17	-7.00	17.49	107.44	-25.58	59.60	0.4795	-940.1	999999
25	1.21	-7.00	0.70	-7.00	20.75	106.85	-26.17	54.27	0.5101	-656.6	999999
26	1.21	-7.00	0.69	-7.00	19.17	106.96	-26.06	56.94	0.4972	-743.6	999999
27	1.47	-7.00	0.84	-7.00	20.37	106.67	-26.35	55.08	0.5094	-919.6	999999
28	2.33	-7.00	1.34	-7.00	20.18	106.64	-26.38	55.44	0.5085	-1046.5	999999
29	17.53	-7.00	10.15	-7.00	21.33	106.38	-26.63	53.72	0.5201	-1009.0	999999
30	1.73	-7.00	0.99	-7.00	18.95	106.78	-26.23	57.48	0.4978	-446.3	999999
31	45.09	-7.00	25.61	-7.00	18.15	106.88	-26.14	58.85	0.4911	-1125.2	999999
32	16.15	-7.00	9.27	-7.00	19.87	106.52	-26.50	56.09	0.5077	-1162.3	999999
33	1.12	-7.00	0.65	-7.00	20.42	106.27	-26.75	55.35	0.5147	-764.4	999999
34	1.21	-7.00	0.69	-7.00	18.57	106.50	-26.52	58.41	0.4989	-470.6	999999
35	0.00	1.04	0.00	0.58	16.43	106.83	-26.19	62.11	0.4808	-964.0	-673.6
36	2.68	5.10	1.51	2.88	16.19	106.77	-26.25	62.64	0.4803	-785.3	-614.9
37	0.00	1.21	0.00	0.73	25.18	105.02	-28.00	48.92	0.5659	-420.0	-410.3
38	1.47	-7.00	0.84	-7.00	18.44	106.38	-26.64	58.74	0.4996	-533.2	999999
39	5.18	-7.00	3.00	-7.00	20.66	105.87	-27.15	55.30	0.5214	-707.5	999999
40	10.71	-7.00	6.19	-7.00	20.07	105.88	-27.14	56.30	0.5171	-949.7	999999
41	1.55	-7.00	0.89	-7.00	18.10	106.09	-26.93	59.61	0.5012	-1020.2	999999
42	1.04	-7.00	0.60	-7.00	19.75	105.79	-27.23	56.91	0.5160	-397.5	999999
43	4.06	-7.00	2.34	-7.00	19.50	105.63	-27.39	57.49	0.5163	1135.1	999999
44	0.69	-7.00	0.39	-7.00	16.62	105.80	-27.22	62.56	0.4959	-691.4	999999
45	33.86	-7.00	19.42	-7.00	17.87	105.56	-27.46	60.44	0.5066	-1069.2	999999
46	0.00	4.23	0.00	2.49	21.25	104.78	-28.24	55.24	0.5389	-838.0	-670.6
47	1.04	-7.00	0.60	-7.00	18.40	105.08	-27.94	59.85	0.5162	-592.5	999999
48	2.25	-7.00	1.30	-7.00	18.37	104.91	-28.11	60.04	0.5182	-686.3	999999
49	2.85	-7.00	1.66	-7.00	18.92	104.63	-28.39	59.30	0.5252	1138.5	999999
50	1.30	3.11	0.76	1.82	19.90	104.30	-28.72	57.88	0.5356	927.9	525.2
51	0.00	1.55	0.00	0.92	21.63	103.93	-29.09	55.31	0.5517	-747.0	-615.2
52	0.00	1.12	0.00	0.64	16.35	104.89	-28.12	63.71	0.5066	-670.0	-544.1
53	0.00	4.32	0.00	2.53	19.55	104.26	-28.76	58.49	0.5340	651.0	671.2
54	0.00	2.16	0.00	1.28	21.78	103.75	-29.27	55.21	0.5549	-602.0	-483.4
55	0.00	1.12	0.00	0.66	20.04	104.12	-28.90	57.76	0.5388	859.0	756.1
56	0.00	1.73	0.00	1.02	20.38	103.91	-29.11	57.37	0.5436	899.0	756.7
57	0.00	1.21	0.00	0.72	21.34	103.70	-29.31	55.96	0.5525	-668.0	-526.6
58	1.21	1.55	0.71	0.92	19.87	103.62	-29.40	58.43	0.5441	944.6	827.8
59	0.00	3.20	0.00	1.88	19.65	103.55	-29.47	58.85	0.5435	537.0	735.3
60	0.00	1.21	0.00	0.71	18.84	103.35	-29.67	60.36	0.5411	719.0	565.9
61	0.00	1.30	0.00	0.76	18.65	102.99	-30.03	60.94	0.5446	-630.0	-497.5
62	2.59	3.20	1.55	1.92	20.54	102.22	-30.79	58.34	0.5654	-547.5	-258.1
63	0.00	3.63	0.00	2.15	18.82	102.59	-30.43	60.92	0.5507	-553.0	-403.8
64	0.00	0.78	0.00	0.46	17.29	102.88	-30.14	63.35	0.5385	-352.0	-269.4
65	2.42	40.51	1.46	24.42	21.53	101.85	-31.17	57.04	0.5761	747.8	461.0
66	1.12	-65.00	0.68	-65.00	21.22	101.85	-31.17	57.53	0.5742	773.5	999999
67	0.00	7.86	0.00	4.71	20.13	102.06	-30.96	59.12	0.5650	474.0	463.1
68	0.00	1.47	0.00	0.91	23.89	100.82	-32.20	54.18	0.6032	701.0	545.8
69	0.00	1.38	0.00	0.83	19.66	101.83	-31.19	60.04	0.5651	887.0	729.5
70	7.26	42.50	4.38	25.66	20.58	101.51	-31.51	58.77	0.5744	-810.3	-28.1
71	0.00	3.89	0.00	2.32	19.16	101.79	-31.23	60.88	0.5628	907.0	776.2
72	9.16	100.11	5.47	59.57	18.57	101.69	-31.33	61.92	0.5608	685.5	516.0
73	2.25	3.89	1.37	2.37	21.53	101.02	-32.00	57.60	0.5860	874.8	739.5
74	0.00	3.20	0.00	1.98	23.60	100.48	-32.54	54.85	0.6051	583.0	669.9
75	0.60	-70.00	0.37	-70.00	20.39	101.26	-31.76	59.25	0.5764	-395.3	999999
76	0.00	0.43	0.00	0.27	23.00	100.56	-32.46	55.68	0.6004	515.0	479.2
77	0.00	1.81	0.00	1.11	21.15	100.89	-32.13	58.28	0.5854	992.0	812.5
78	0.00	2.07	0.00	1.26	20.00	100.97	-32.05	60.05	0.5777	-301.0	-184.5
79	0.00	2.50	0.00	1.51	18.93	101.21	-31.81	61.64	0.5688	674.0	690.4
80	2.42	3.97	1.45	2.37	17.85	101.28	-31.74	63.37	0.5623	1022.6	817.1
81	3.11	798.17	1.89	499.52	20.37	100.70	-32.32	59.64	0.5831	-758.8	401.6
82	0.00	3.54	0.00	2.23	24.36	99.63	-33.39	54.31	0.6195	784.0	526.1
83	1.47	2.16	0.91	1.33	22.13	100.22	-32.80	57.22	0.5991	835.5	781.1
84	0.00	0.78	0.00	0.47	19.07	100.96	-32.06	61.56	0.5728	787.0	734.4
85	0.00	2.25	0.00	1.35	18.06	101.09	-31.92	63.14	0.5658	742.0	642.1
86	1.64	-81.00	1.00	-81.00	20.85	100.39	-32.63	59.07	0.5896	-437.5	999999
87	1.30	-81.00	0.80	-81.00	22.63	99.90	-33.12	56.69	0.6058	649.7	999999
88	0.00	2.42	0.00	1.45	18.24	100.95	-32.07	62.93	0.5686	745.0	697.8
89	0.00	0.95	0.00	0.57	19.03	100.63	-32.39	61.82	0.5767	792.0	597.0
90	0.00	1.04	0.00	0.63	18.63	100.64	-32.38	62.47	0.5744	623.0	549.7
91	2.76	-81.00	1.70	-81.00	20.78	100.11	-32.91	59.36	0.5926	-483.6	999999
92	1.21	-81.00	0.75	-81.00	22.65	99.62	-33.40	56.83	0.6092	749.4	999999
93	0.00	16.93	0.00	10.17	17.62	100.78	-32.24	64.06	0.5676	652.0	530.9
94	5.01	-81.00	3.12	-81.00	22.36	99.54	-33.47	57.31	0.6084	951.1	999999
95	0.00	1.12	0.00	0.68	19.05	100.36	-32.66	61.95	0.5802	770.0	676.2
96	2.76	-81.00	1.71	-81.00	21.64	99.66	-33.36	58.32	0.6029	1114.6	999999
97	0.00	1.21	0.00	0.72	16.94	100.73	-32.29	65.22	0.5651	-338.0	-376.9
98	0.00	5.87	0.00	3.56	18.83	100.26	-32.76	62.36	0.5803	770.0	705.6
99	1.64	-81.00	1.02	-81.00	22.20	99.36	-33.66	57.68	0.6096	869.1	999999
100	1.21	-81.00	0.74	-81.00	20.24	99.75	-33.27	60.43	0.5941	970.0	999999
101	3.80	-81.00	2.37	-81.00	21.97	99.23	-33.79	58.10	0.6099	819.2	999999
102	0.00	0.95	0.00	0.58	19.96	99.70	-33.32	60.90	0.5931	880.0	757.5
103	1.38	-81.00	0.86	-81.00	21.60	99.29	-33.73	58.62	0.6070	303.2	999999
104	1.04	-81.00	0.65	-81.00	21.56	99.18	-33.84	58.74	0.6081	-276.2	999999
105	0.00	1.38	0.00	0.85	19.18	99.69	-33.32	62.13	0.5892	985.0	840.3
106	0.00	6.48	0.00	3.96	18.93	99.56	-33.46	62.61	0.5896	922.0	738.9
107	0.00	1.12	0.00	0.69	18.47	99.67	-33.35	63.28	0.5860	738.0	615.6
108	14.17	-81.00	8.82	-81.00	21.12	98.99	-34.03	59.53	0.6079	702.0	999999
109	2.16	-81.00	1.35	-81.00	21.43	98.87	-34.15	59.14	0.6110	-261.2	999999
110	0.00	0.86	0.00	0.53	17.70	99.61	-33.41	64.57	0.5831	720.0	635.1
111	1.73	-81.00	1.08	-81.00	20.86	98.67	-34.35	60.12	0.6103	790.9	999999
112	0.00	0.86	0.00	0.52	16.05	99.75	-33.27	67.21	0.5740	787.0	682.9
113	0.00	1.12	0.00	0.71	21.97	98.37	-34.65	58.61	0.6199	740.0	507.2
114	4.58	-81.00	2.85	-81.00	20.54	98.60	-34.42	60.64	0.6096	673.1	999999
115	30.23	-81.00	18.75	-81.00	19.77	98.72	-34.30	61.76	0.6042	1046.6	999999
116	0.00	1.12	0.00	0.71	21.99	98.05	-34.97	58.77	0.6237	776.0	634.3
117	0.00	3.37	0.00	2.07	18.17	98.98	-34.04	64.14	0.5933	820.0	669.2
118	0.00	2.50	0.00	1.57	20.53	98.26	-34.76	60.85	0.6137	529.0	418.9
119	0.00	1.21	0.00	0.77	21.95	97.79	-35.23	58.99	0.6266	706.0	551.5
120	2.76	-81.00	1.75	-81.00	21.36	97.84	-35.18	59.84	0.6229	668.9	999999
121	7.51	-81.00	4.67	-81.00	19.20	98.36	-34.66	62.85	0.6058	1132.6	999999
122	3.37	-81.00	2.12	-81.00	21.01	97.89	-35.13	60.32	0.6205	796.2	999999
123	4.23	-81.00	2.64	-81.00	19.72	98.19	-34.83	62.13	0.6104	827.4	999999
124	0.00	1.30	0.00	0.78	13.40	99.48	-33.54	71.84	0.5679	646.0	515.7
125	0.00	1.12	0.00	0.71	20.64	97.96	-35.06	60.85	0.6179	443.0	335.5
126	1.38	-81.00	0.86	-81.00	18.92	98.35	-34.67	63.29	0.6047	979.6	999999
127	0.00	0.86	0.00	0.55	22.22	97.36	-35.66	58.84	0.6330	691.0	540.7
128	0.00	0.95	0.00	0.61	23.21	96.89	-36.12	57.67	0.6436	653.0	520.7
129	14.51	-81.00	9.09	-81.00	19.58	97.77	-35.25	62.58	0.6150	982.7	999999
130	0.00	5.96	0.00	3.82	22.04	96.89	-36.13	59.36	0.6375	733.0	567.8
131	3.37	-81.00	2.11	-81.00	19.23	97.62	-35.40	63.18	0.6151	1052.3	999999
132	0.00	0.95	0.00	0.59	16.88	98.12	-34.90	66.63	0.5986	664.0	609.1
133	1.21	-81.00	0.76	-81.00	19.44	97.49	-35.53	62.92	0.6177	1043.4	999999
134	1.04	1.73	0.67	1.11	21.75	96.62	-36.40	59.93	0.6392	647.8	728.1
135	19.26	-81.00	12.16	-81.00	19.36	97.08	-35.94	63.25	0.6224	1069.2	999999
136	0.00	2.07	0.00	1.34	22.14	96.26	-36.76	59.55	0.6453	720.0	525.5
137	20.04	-81.00	12.73	-81.00	18.94	96.41	-36.61	64.23	0.6287	1007.2	999999
138	0.00	1.90	0.00	1.27	24.01	94.67	-38.35	57.76	0.6725	607.0	529.7
139	0.00	0.78	0.00	0.51	21.38	95.33	-37.69	61.13	0.6525	395.0	424.0
140	5.27	-81.00	3.37	-81.00	18.79	95.89	-37.13	64.68	0.6344	688.2	999999
141	0.00	2.33	0.00	1.52	21.12	95.00	-38.02	61.67	0.6550	325.0	374.4
142	0.00	0.86	0.00	0.57	21.37	94.92	-38.09	61.35	0.6570	484.0	350.3
143	0.00	0.95	0.00	0.62	21.20	94.65	-38.37	61.72	0.6595	558.0	454.5
144	0.00	1.21	0.00	0.76	15.41	95.75	-37.27	69.94	0.6238	599.0	484.2
145	0.00	1.21	0.00	0.81	18.22	92.50	-40.52	66.91	0.6732	741.0	509.3
146	0.00	0.69	0.00	0.46	16.22	92.50	-40.52	69.82	0.6670	670.0	608.8
147	0.00	0.69	0.00	0.47	18.55	91.57	-41.45	66.78	0.6853	558.0	513.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
